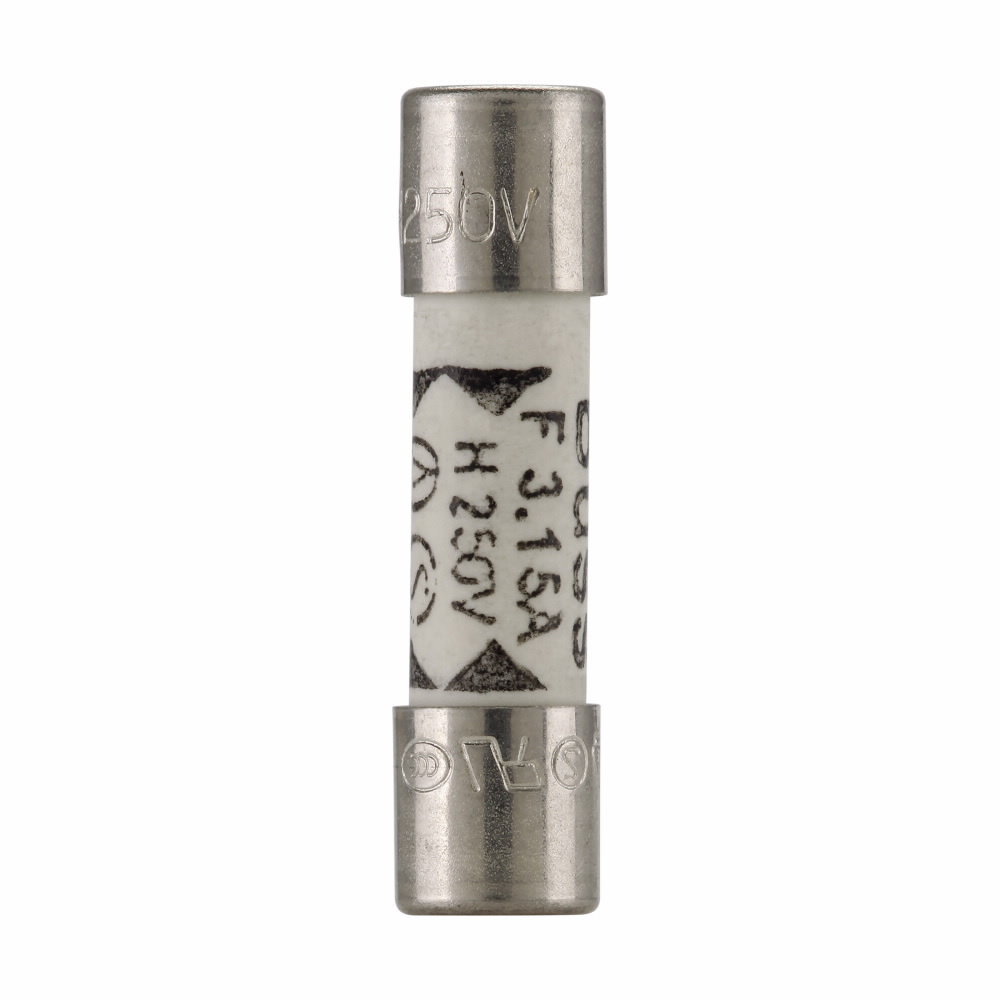

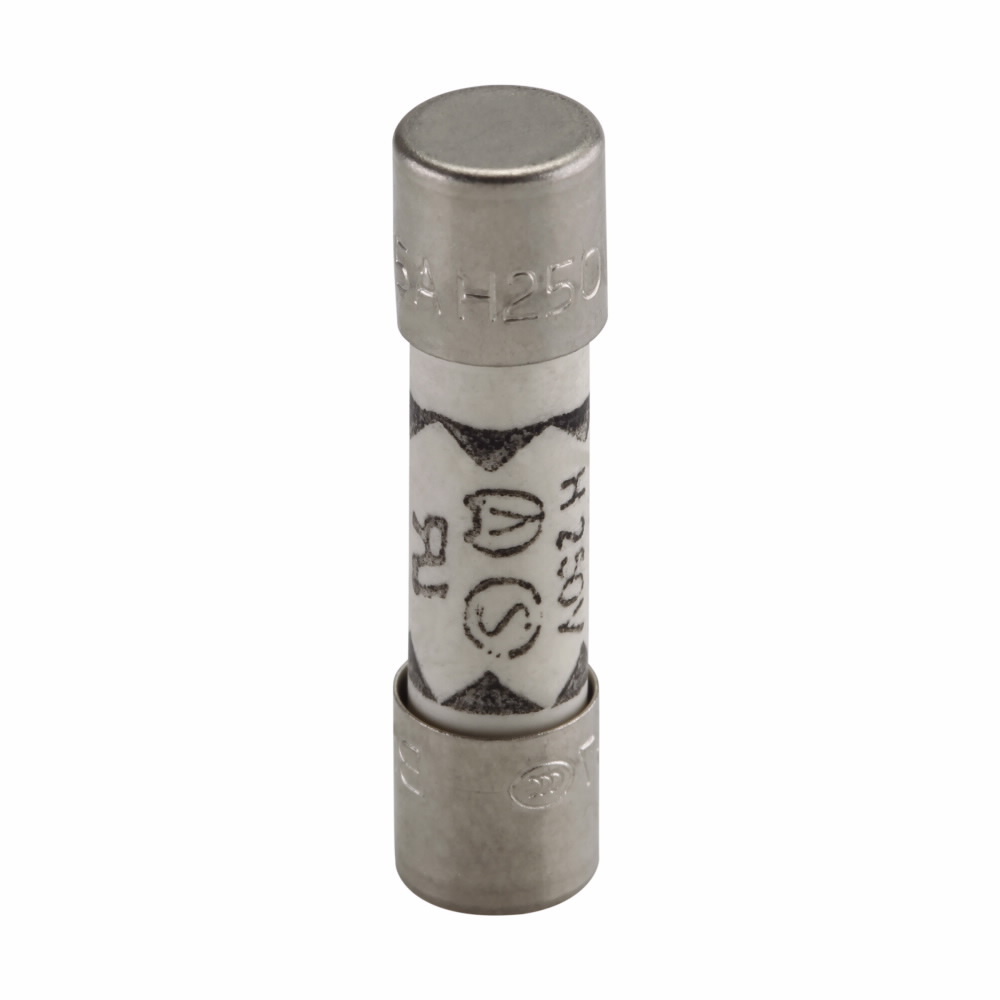

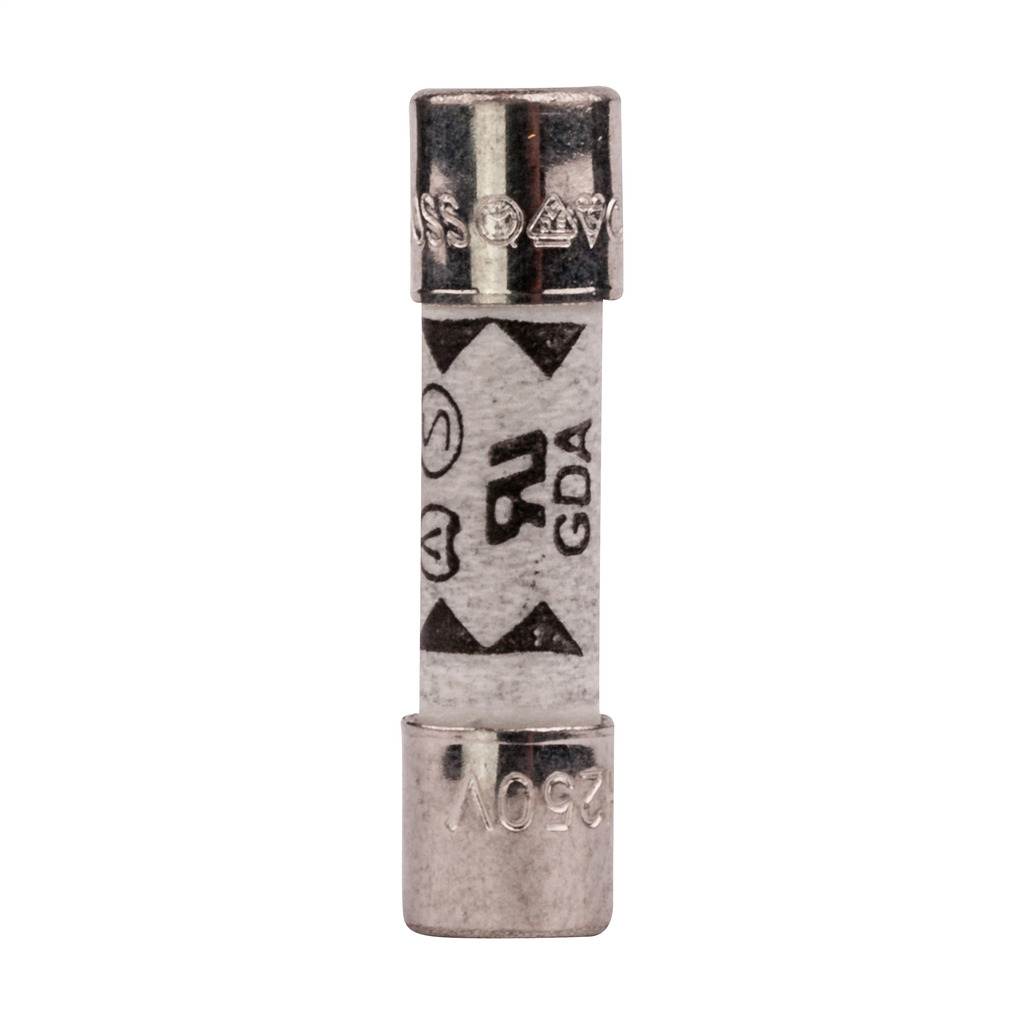

Fast-acting, high breaking capacity 5 mm x 20 mm ferrule fuse designed to IEC 60127-2 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available axial leads for thru-hole installation. Eatons GSA fast-acting, high breaking capacity 5mm x 20mm ferrule fuses are designed to IEC 60127-2 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Manuals & Documentation
Catalog Number GDA-5A
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Multiple
Made in USA No
Amperage Rating 5
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Frequency Rating 50 Hz
Interrupt Rating 1.5 kAIC at 250 Vac
Material Ceramic tube|Nickel-plated brass end cap construction
Special Features High Breaking Capacity, Interrupt Rating 1500 Amp at 250 Vac, Material Ceramic Tube, Nickel Plated Brass Endcap
Standard VDE,CE Marked,CCC Marked
UPC 051712431361
GTIN 00051712431361
Item Type Fast-acting fuse
Weight UOM Pounds
Size 5.20 mm Diameter X 20.00 mm Height
Voltage Rating 250 Vac, 32 Vdc (self certified)
