Intermatic

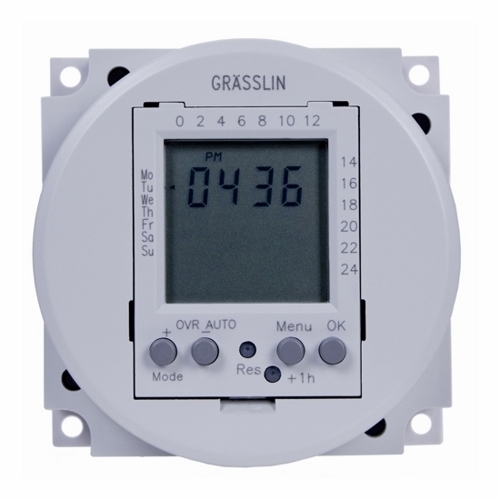

FM1D20-24U 1-Channel Digital Electronic Timer Switch, 1 min to 24 hr/7 days Setting, 24 V AC/DC, 1/2, 1 hp, 1CO 1 Form C SPDT Contact, 1 Poles

MFR:
Intermatic
MFR #:
FM1D20-24U
UPC:
078275116382
Item #:
57109

The FM1D20 Series Electronic Time Controls are for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. They are intended for either panel, surface, flush, or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Manuals & Documentation
Catalog Number FM1D20-24U
Manufacturer Intermatic
Brand Intermatic
Country of Origin China
Made in USA No
Action 1 x SPDT
Application Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
Connection 1/4 IN Quick Connect
Contact Configuration 1 NO/1 NC
Contact Rating 16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
Mounting Panel Mount
Number of Poles 1
Special Features Features: 20 Setpoint Programs, 3 Preset Adjustable Block Programs, Easy-to-Follow Menu Driven Programming, Manual Override with Status Indication, Battery Backup, Large LCD, 1 Year Warranty
Standard cULus Recognized E10694, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
UPC 078275116382
GTIN 00078275116382
Item Type One Channel Electronic
Size 2.36 HEIGHT X 2.36 WIDTH IN, 60 HEIGHT X 60 WIDTH MM
Operating Temperature -13 to +131 DEG F, -25 to +55 DEG C
Timing Range 1 MIN - 24 HR/7 DAYS
Voltage Rating 24
Wattage 1000 W
