Discontinued

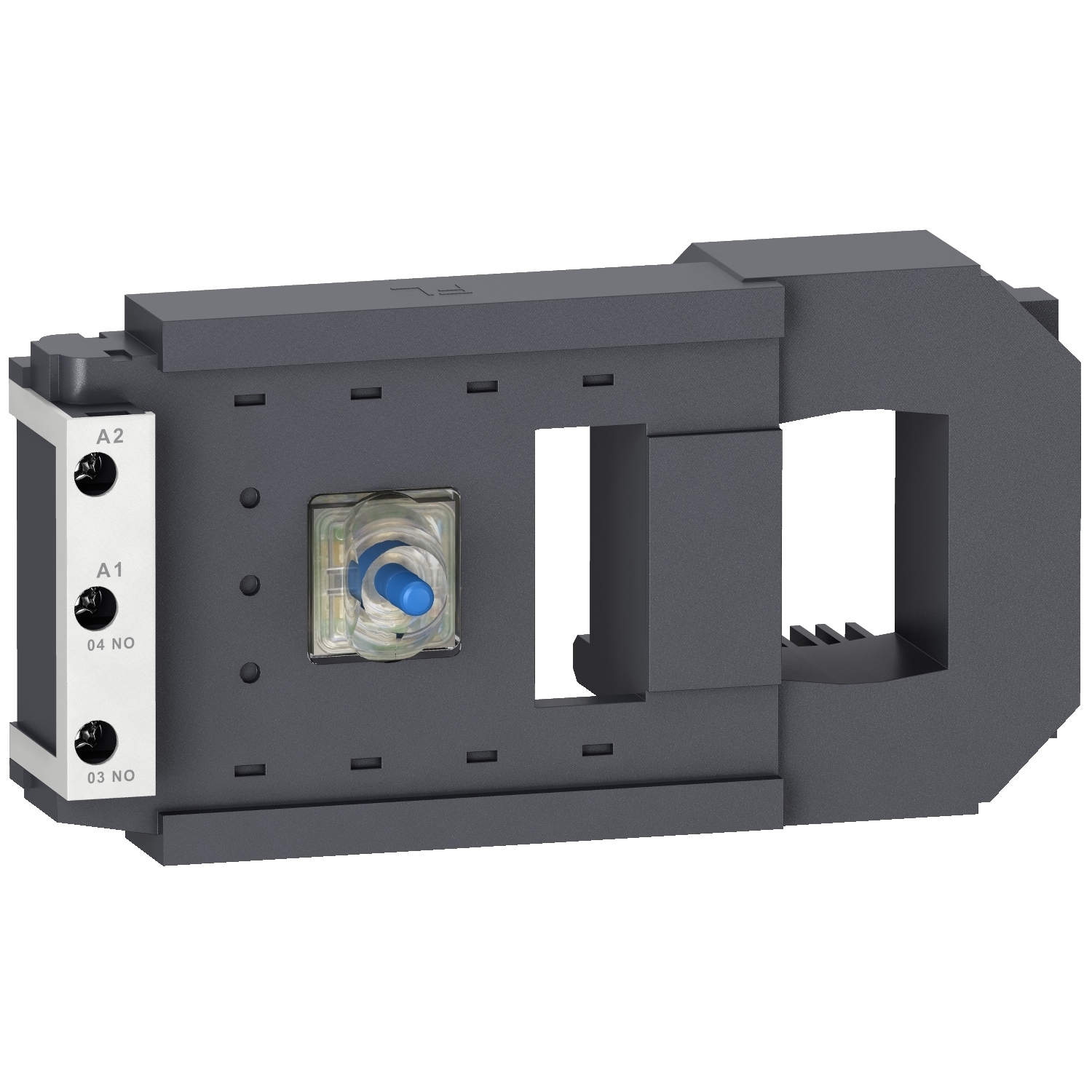

LX9FF380 LX9FF Low Consumption Contactor Coil, 380 to 400 V AC, 40 to 400 Hz, For Use With TeSys F 3-Pole and 4-Pole Contactors LC1 F115, F150, FG150
- MFR:
- Schneider Electric
- MFR #:
- LX9FF380
- Item #:
- 568439
Discontinued
LX9FF380 LX9FF Low Consumption Contactor Coil, 380 to 400 V AC, 40 to 400 Hz, For Use With TeSys F 3-Pole and 4-Pole Contactors LC1 F115, F150, FG150
- MFR #:
- LX9FF380
- Item #:
- 568439
TeSys F AC coil 380/400V 40-400Hz (voltage code Q7/V7), low sealed consumption, high tolerance to voltage drops, for TeSys F 3-pole and 4-pole contactors LC1 F115, F150, FG150. It operates in voltage limits 0.85-1.1 Uc and environments until 55C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Manuals & Documentation
| Catalog Number | LX9FF380 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | TeSys TeSys F LC1F contactor;LC1F150;LC1F115 |
| Coil Voltage | 380...400 V AC 40...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=642260&lang=en-us |
| GTIN | 03389110248425 |
| Item Type | Specific contactor coil |
