FLCDSCBUY OptiCam Fiber Optic Connector, LC Duplex Connector, 9/125 um OS1/OS2 Singlemode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule, Cam Termination Mount
- MFR:
- Panduit
- MFR #:
- FLCDSCBUY
- UPC:
- 074983175963
- Item #:
- 567112
FLCDSCBUY OptiCam Fiber Optic Connector, LC Duplex Connector, 9/125 um OS1/OS2 Singlemode Fiber, 900 um Tight Buffered Fiber, Pre-Polished Zirconia Ferrule, Cam Termination Mount
- MFR #:
- FLCDSCBUY
- UPC:
- 074983175963
- Item #:
- 567112

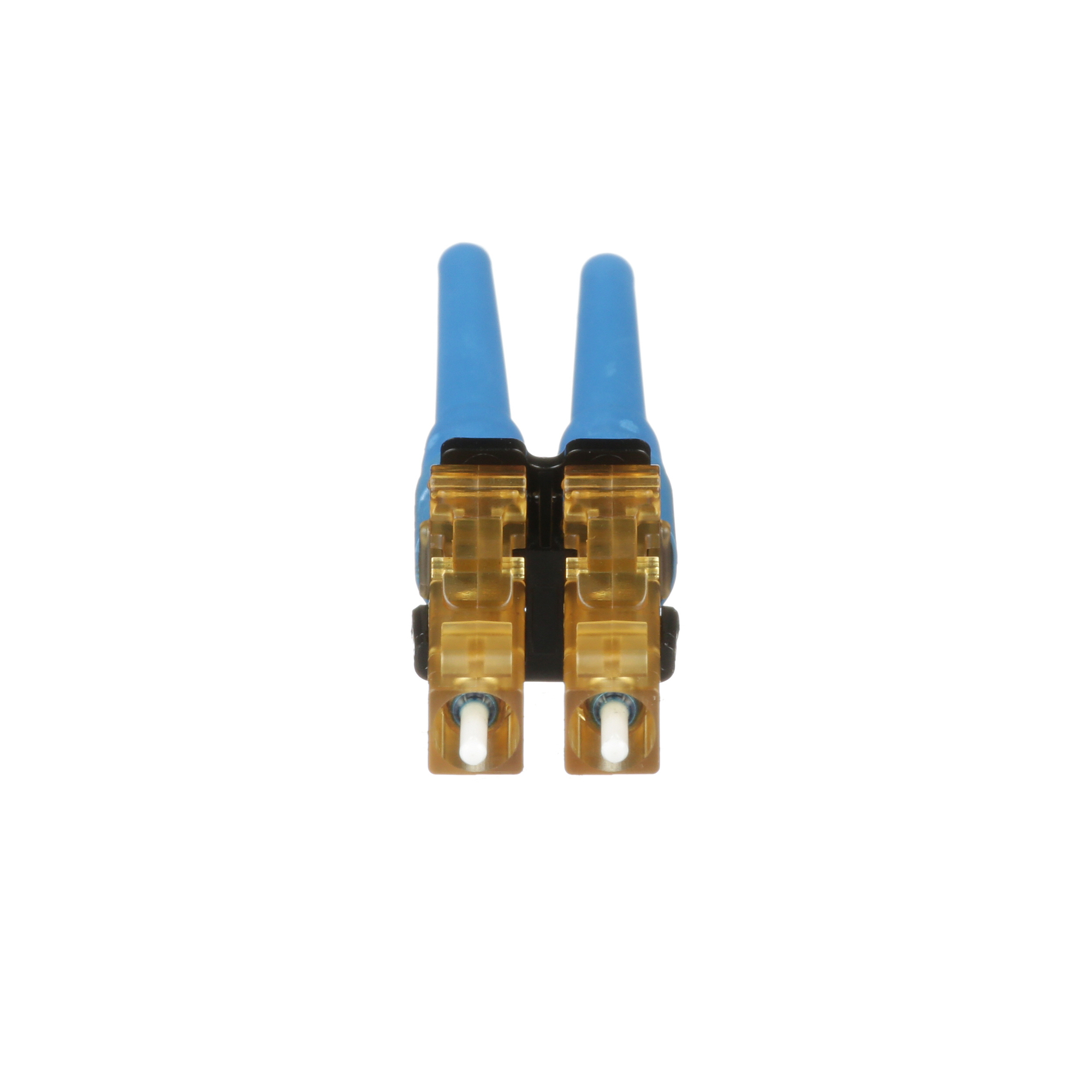

The OptiCam LC Fiber Optic Connector is a singlemode 9/125m OS1/OS2 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The LC connector has a natural-colored body with a blue-colored backbone and 900m boot.
| Catalog Number | FLCDSCBUY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Color | Blue |
| Connection | LC |
| Fiber Size | 900µm |
| Fiber Type | OS1/OS2 |
| Standard | RoHS Compliant; TIA/EIA-604 FOCIS-10 compliant; exceeds TIA/EIA-568-D.3 requirements |
| UPC | 074983175963 |
| GTIN | 00074983175963 |
| Item Type | Fiber Optic Connector |
| Temperature Rating | 140 °F |
| Cross Reference Products | Belden AX105202|Belden AX105202-S1|TEConnect 6754484-1 |
