UTPSP5MBUY PanNet TX6 Plus Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 5 m L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTPSP5MBUY
- UPC:
- 074983170999
- Item #:
- 567108
UTPSP5MBUY PanNet TX6 Plus Class E Patch Cord, Cat 6, 24 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 5 m L Cord, Blue
- MFR #:
- UTPSP5MBUY
- UPC:
- 074983170999
- Item #:
- 567108

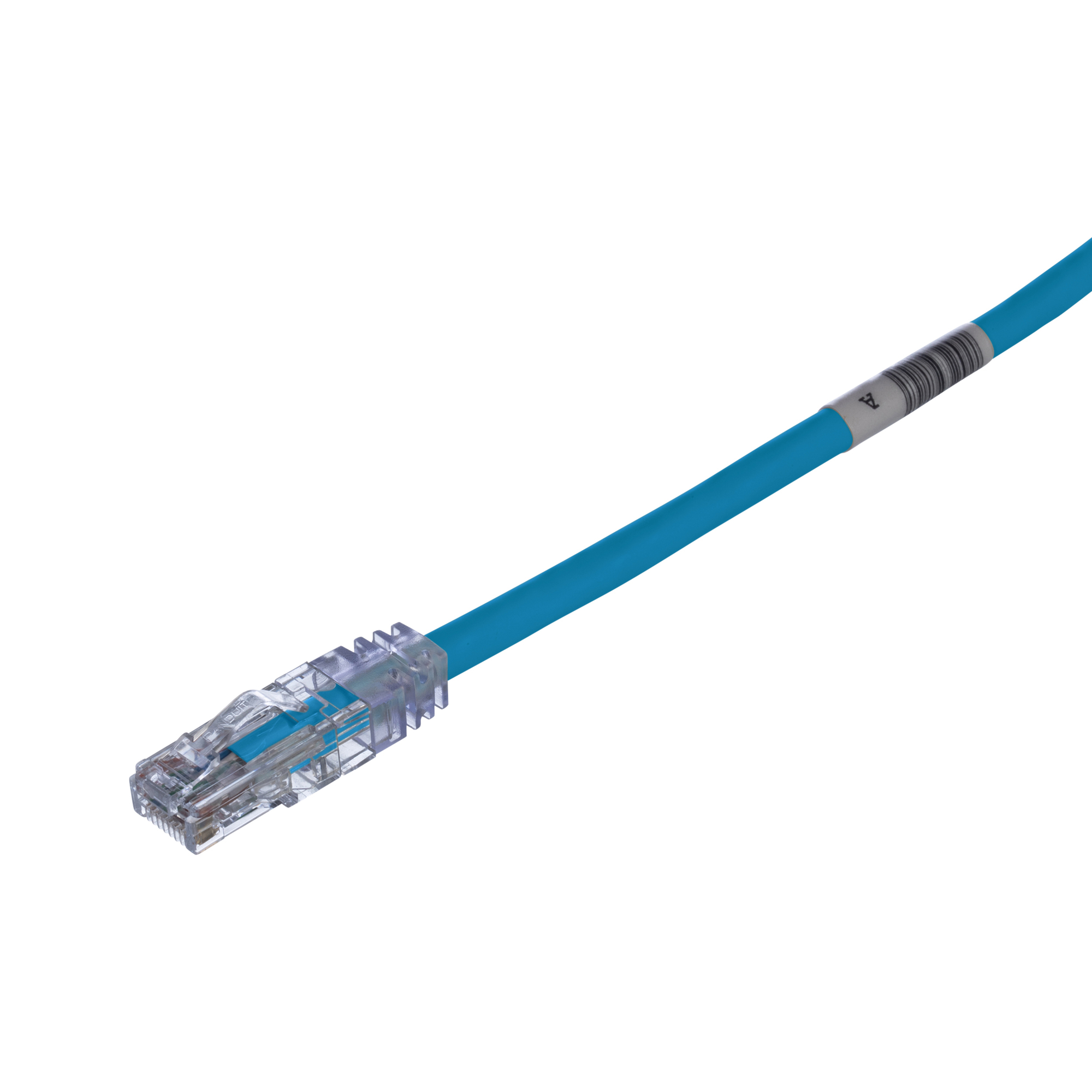

The TX6 PLUS Cat 6 UTP Patch Cord is a 5-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals & Documentation
| Catalog Number | UTPSP5MBUY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digit |
| Color | Blue |
| Conductor Material | Copper |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant |
| UPC | 074983170999 |
| GTIN | 00074983170999 |
| Item Type | Patch Cord |
| Length | 16.41 |
| Outside Diameter | 0.24 |
| Temperature Rating | 140 |
| Wire Size | 24 |
