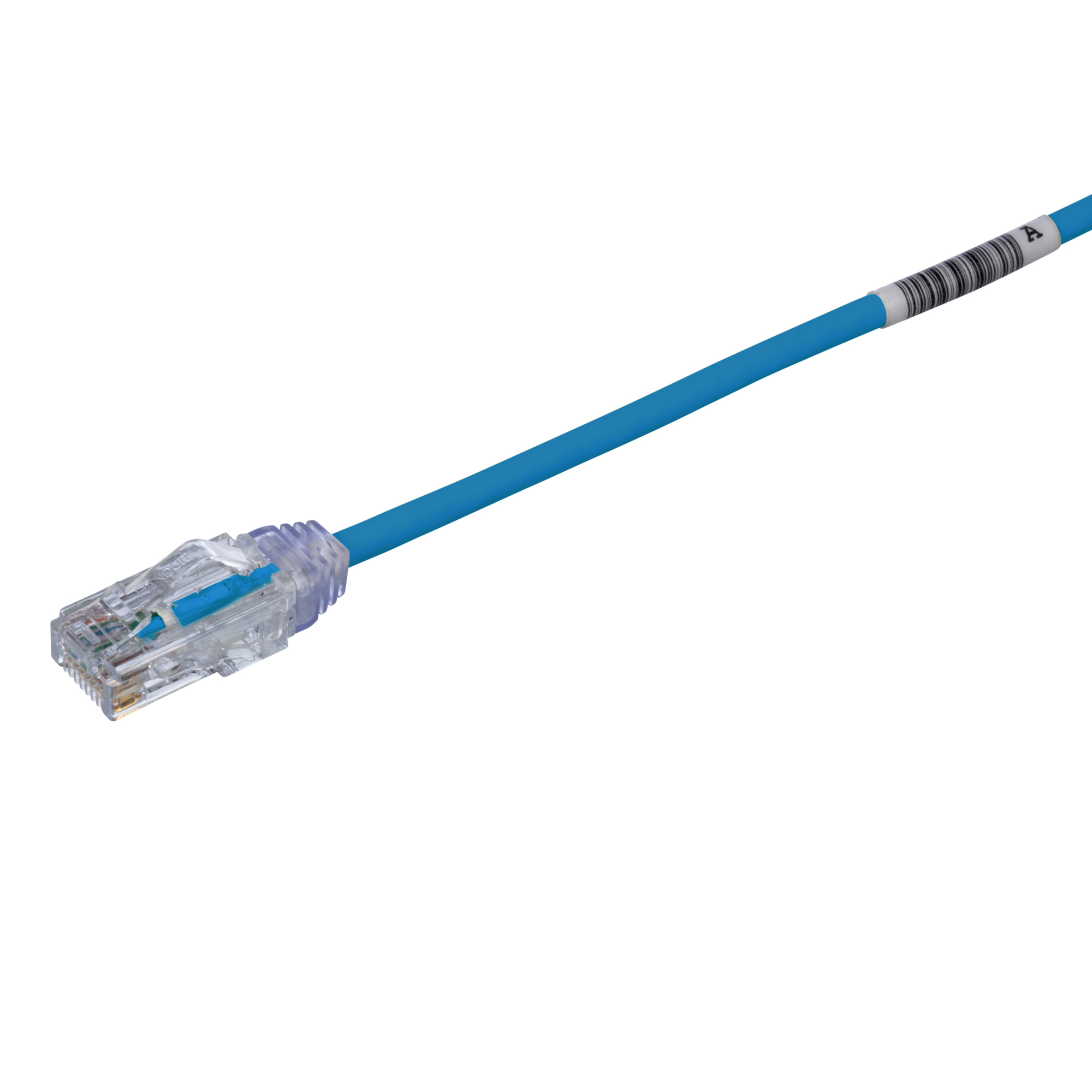

UTP28SP2BU PanNet TX6-28 Small Diameter Patch Cord, Cat 6/Class E, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 2 ft L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTP28SP2BU
- UPC:
- 074983651887
- Item #:
- 567028
UTP28SP2BU PanNet TX6-28 Small Diameter Patch Cord, Cat 6/Class E, 28 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 2 ft L Cord, Blue
- MFR #:
- UTP28SP2BU
- UPC:
- 074983651887
- Item #:
- 567028
The TX6-28 Cat 6 UTP Patch Cord is a 2-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
| Catalog Number | UTP28SP2BU |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit |
| Color | Blue |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/80 |
| UPC | 074983651887 |
| GTIN | 00074983651887 |
| Item Type | Patch Cord |
| Length | 2.00 |
| Length UOM | Inch |
| Outside Diameter | 0.15 IN |
| Temperature Rating | 140 °F |
| Wire Size | 28 |
