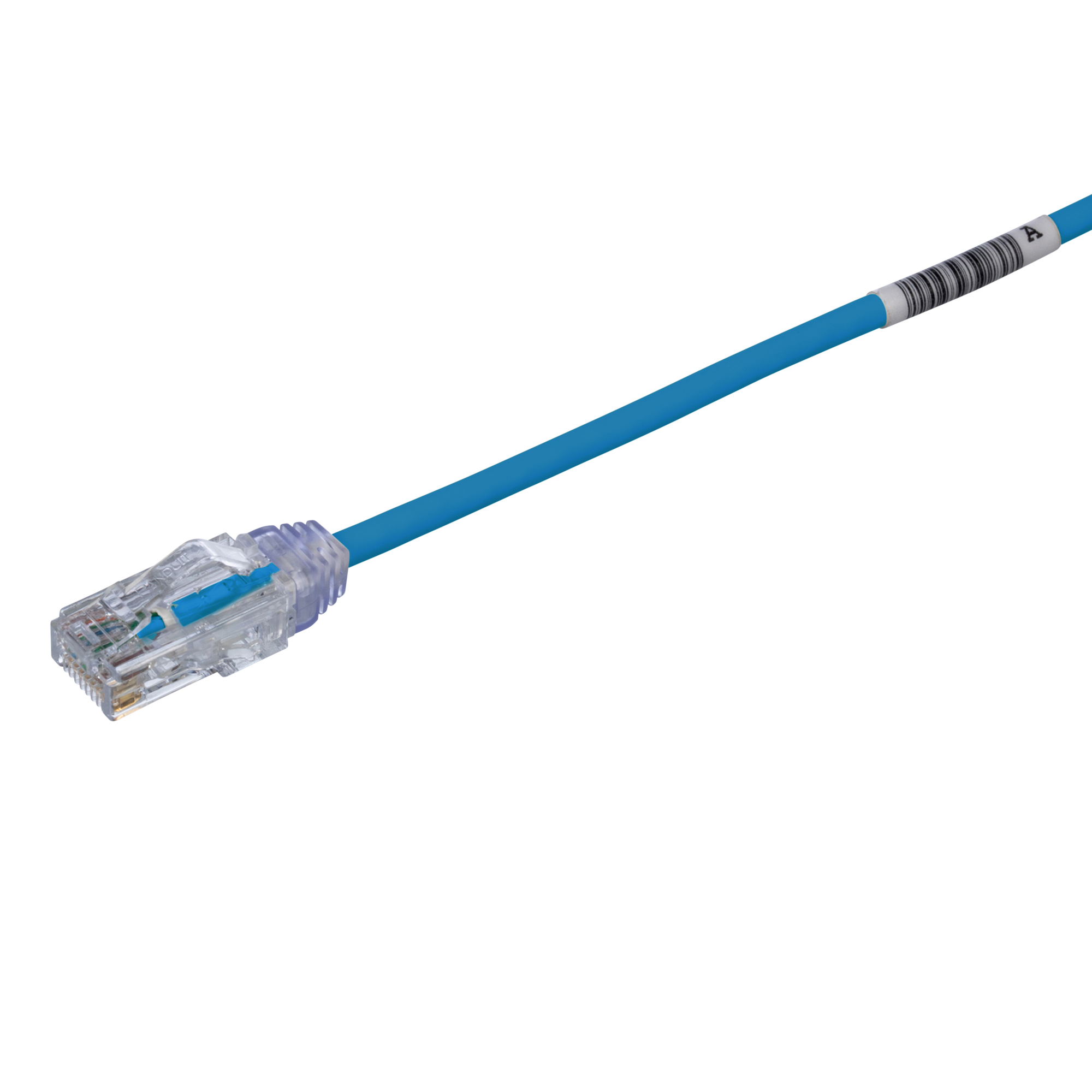

UTP28SP7BU PanNet TX6-28 Class E Small Diameter Patch Cord, Cat 6, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 7 ft L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTP28SP7BU
- UPC:
- 074983652471
- Item #:
- 567026
UTP28SP7BU PanNet TX6-28 Class E Small Diameter Patch Cord, Cat 6, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 7 ft L Cord, Blue
- MFR #:
- UTP28SP7BU
- UPC:
- 074983652471
- Item #:
- 567026
The TX6-28 Cat 6 UTP Patch Cord is a 7-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
| Catalog Number | UTP28SP7BU |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Digital video and broadband/baseband analog video(4) Voice/data systems(5) Voice over Internet Protocol (VoIP) |
| Color | Blue |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E, meets ANSI/TIA-1096-A, meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 an |
| UPC | 074983652471 |
| GTIN | 00074983652471 |
| Item Type | Patch Cord |
| Length | 7.00 |
| Outside Diameter | 0.15 IN |
| Temperature Rating | 167 °F |
| Wire Size | 28 |
