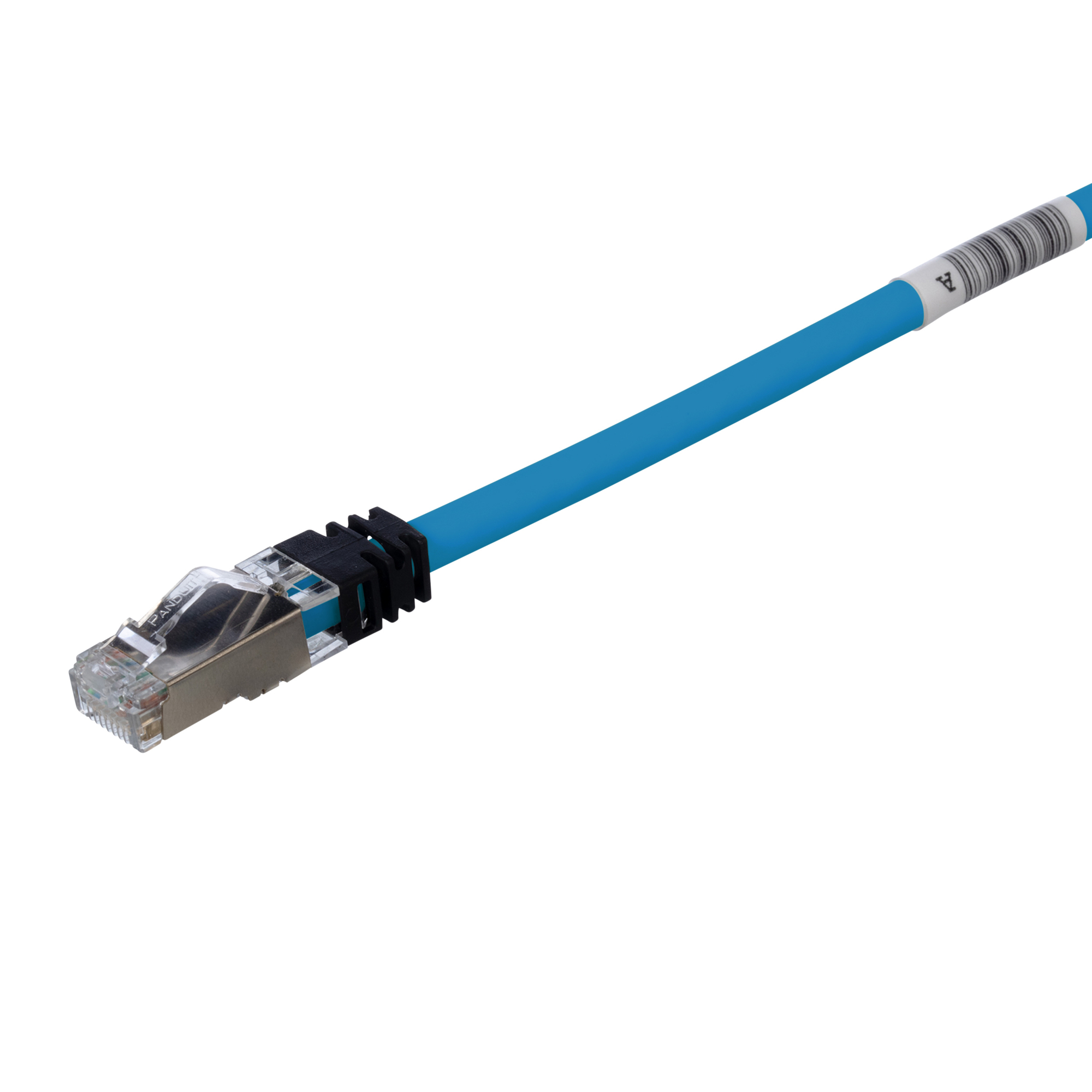

This TX6A 10Gig Cat 6A STP Patch Cord is a 7-Meter, Blue cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals & Documentation
| Catalog Number | STP6X7MBU |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Color | Blue |
| Conductor Material | Copper |
| Jacket Material | LSZH Material |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/ |
| UPC | 074983711277 |
| GTIN | 00074983711277 |
| Item Type | Patch Cord |
| Length | 22.97 |
| Length UOM | Inch |
| Outside Diameter | 0.24 IN |
| Temperature Rating | 140 °F |
| Wire Size | 26 |
