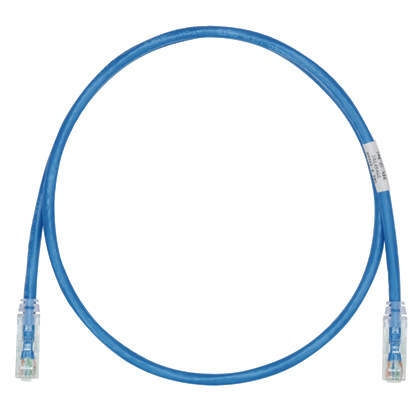

UTPSP20MBUY PanNet TX6 Plus Patch Cord With TX6 PLUS Modular Plugs, Cat 6/Class D/E, 24 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 20 m L Cord, Blue
- MFR:
- Panduit
- MFR #:
- UTPSP20MBUY
- UPC:
- 074983726776
- Item #:
- 566988
UTPSP20MBUY PanNet TX6 Plus Patch Cord With TX6 PLUS Modular Plugs, Cat 6/Class D/E, 24 AWG U/UTP Stranded Copper Conductor, RJ45 Modular Plug Connector, 20 m L Cord, Blue
- MFR #:
- UTPSP20MBUY
- UPC:
- 074983726776
- Item #:
- 566988
The TX6 PLUS Cat 6 UTP Patch Cord is a 20-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Manuals & Documentation
| Catalog Number | UTPSP20MBUY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards)(2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM(3) Token ring 4/16(4) Digit |
| Color | Blue |
| Conductor Material | Copper |
| Plug Type | Modular Plug |
| Standard | Exceeds all ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Edition 2.1 standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS com |
| UPC | 074983726776 |
| GTIN | 00074983726776 |
| Item Type | Patch Cord |
| Length | 65.62 |
| Length UOM | Inch |
| Outside Diameter | 0.23 IN |
| Temperature Rating | 140 °F |
| Wire Size | 24 |
