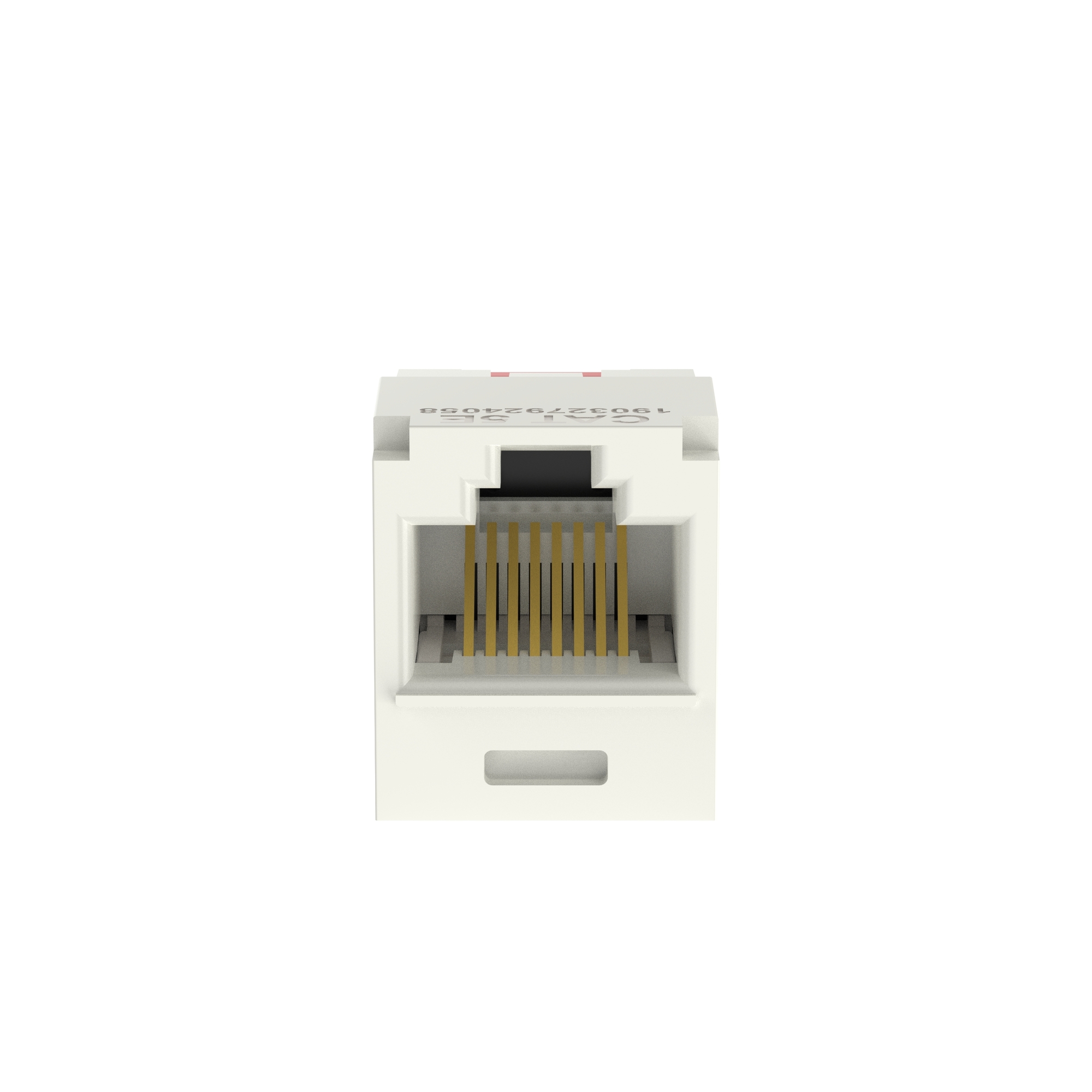

CJ5E88TGIW PanNet TX5e 8-Position 8-Wire TG Style Universal Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic, Off-White
- MFR:
- Panduit
- MFR #:
- CJ5E88TGIW
- UPC:
- 074983395286
- Item #:
- 566969
CJ5E88TGIW PanNet TX5e 8-Position 8-Wire TG Style Universal Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic, Off-White
- MFR #:
- CJ5E88TGIW
- UPC:
- 074983395286
- Item #:
- 566969
The Mini-Com Cat 5e UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white.
| Catalog Number | CJ5E88TGIW |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | Unshielded |
| Cable Entry | T568A/T568B |
| Color | Off White |
| Material | ABS/Plastic |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, |
| UPC | 074983395286 |
| GTIN | 00074983395286 |
| Item Type | Jack Module |
| Width | 0.62 |
| Width UOM | Inch |
| Depth | 1.5 IN |
