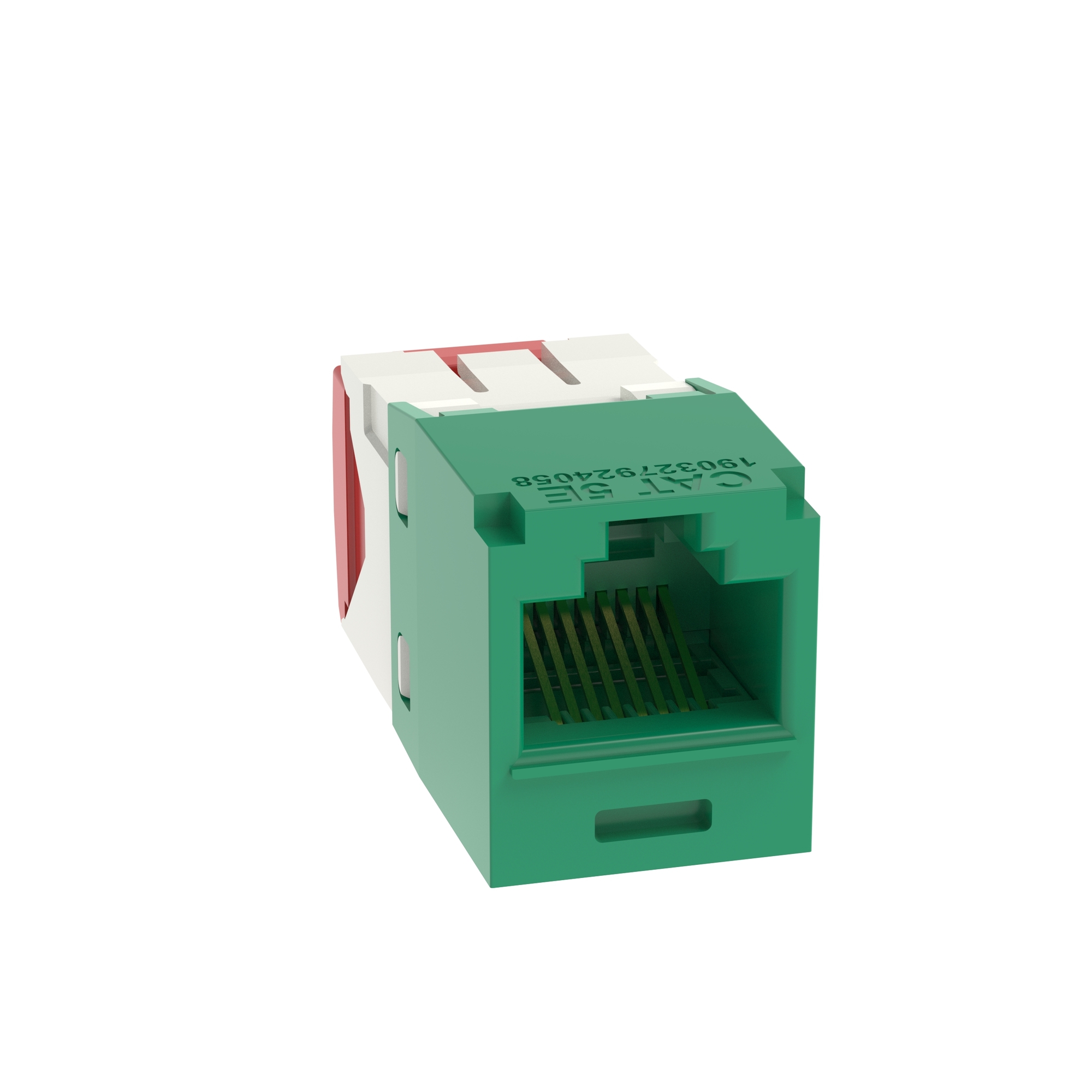

CJ5E88TGGR PanNet Mini-Jack TX5e 1-Slot 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic, Green
- MFR:
- Panduit
- MFR #:
- CJ5E88TGGR
- UPC:
- 074983395262
- Item #:
- 566966
CJ5E88TGGR PanNet Mini-Jack TX5e 1-Slot 8-Position 8-Wire Universal TG Style Unshielded Jack Module, Cat 5e RJ45/Mini-Com Module, Surface Mount, 1 Port, ABS/Plastic, Green
- MFR #:
- CJ5E88TGGR
- UPC:
- 074983395262
- Item #:
- 566966
The Mini-Com Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Green.
| Catalog Number | CJ5E88TGGR |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Costa Rica |
| Made in USA | No |
| Application | Unshielded |
| Cable Entry | T568A/T568B |
| Color | Green |
| Material | ABS/Plastic |
| Standard | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS |
| UPC | 074983395262 |
| GTIN | 00074983395262 |
| Item Type | Jack Module |
| Width | 0.62 |
| Width UOM | Inch |
| Depth | 1.5 IN |
