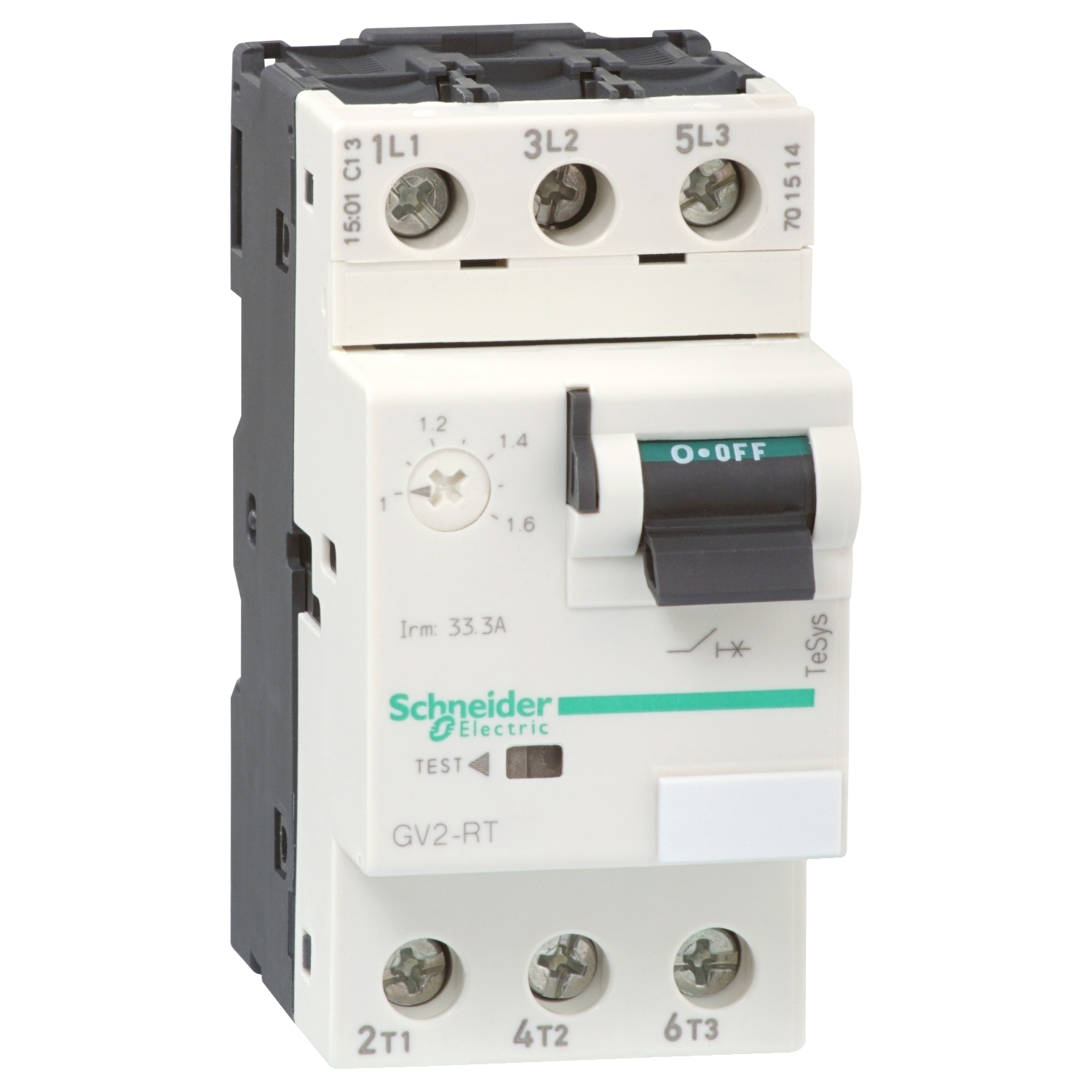

GV2RT04 TeSys GV2 Series Circuit Breaker, 690 V AC, 0.4 to 0.63 A, 100 kA to 400/415 V AC/100 kA to 440 V AC/100 kA to 500 V AC/100 kA to 690 V AC/100 kA to 220/230 V AC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- GV2RT04
- Item #:
- 566506
GV2RT04 TeSys GV2 Series Circuit Breaker, 690 V AC, 0.4 to 0.63 A, 100 kA to 400/415 V AC/100 kA to 440 V AC/100 kA to 500 V AC/100 kA to 690 V AC/100 kA to 220/230 V AC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- GV2RT04
- Item #:
- 566506
TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for high starting current peak motor applications 0.12-0.18kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.40-0.63A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Manuals & Documentation
| Catalog Number | GV2RT04 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607842&lang=en-us |
| GTIN | 03389110520606 |
