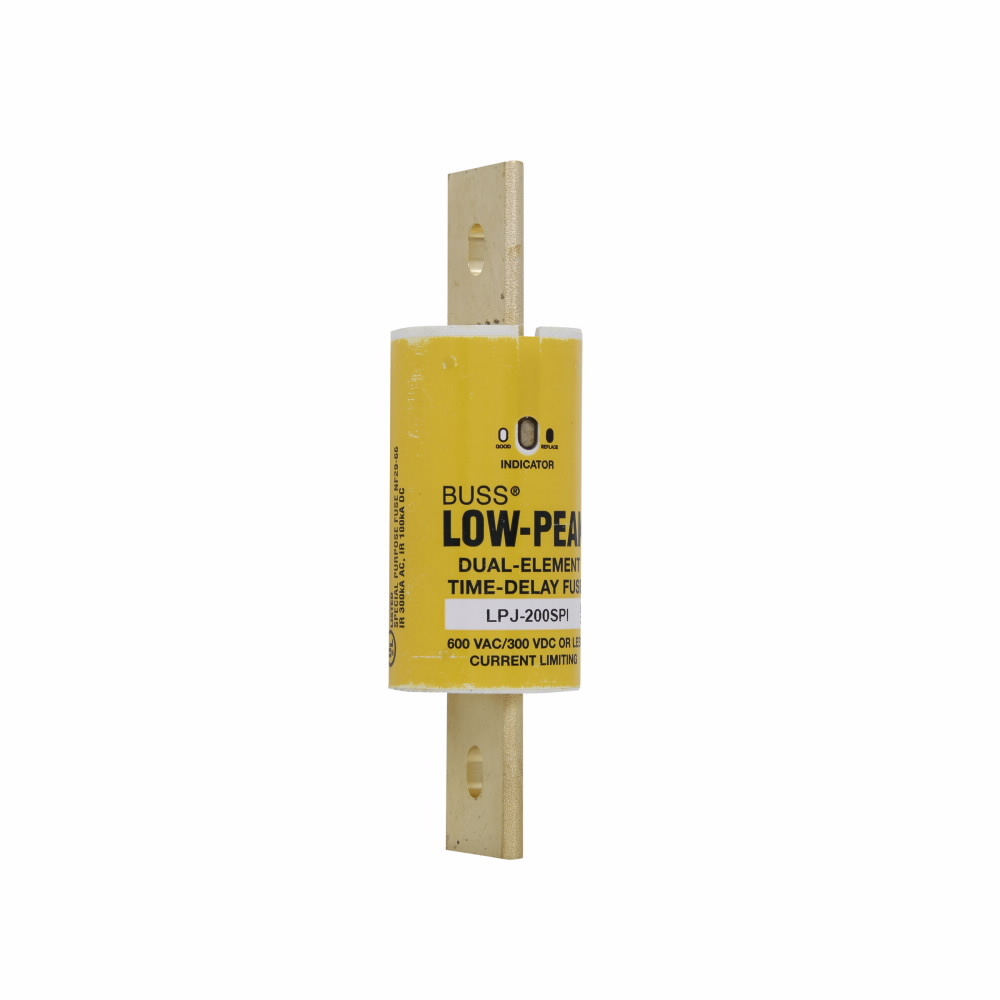

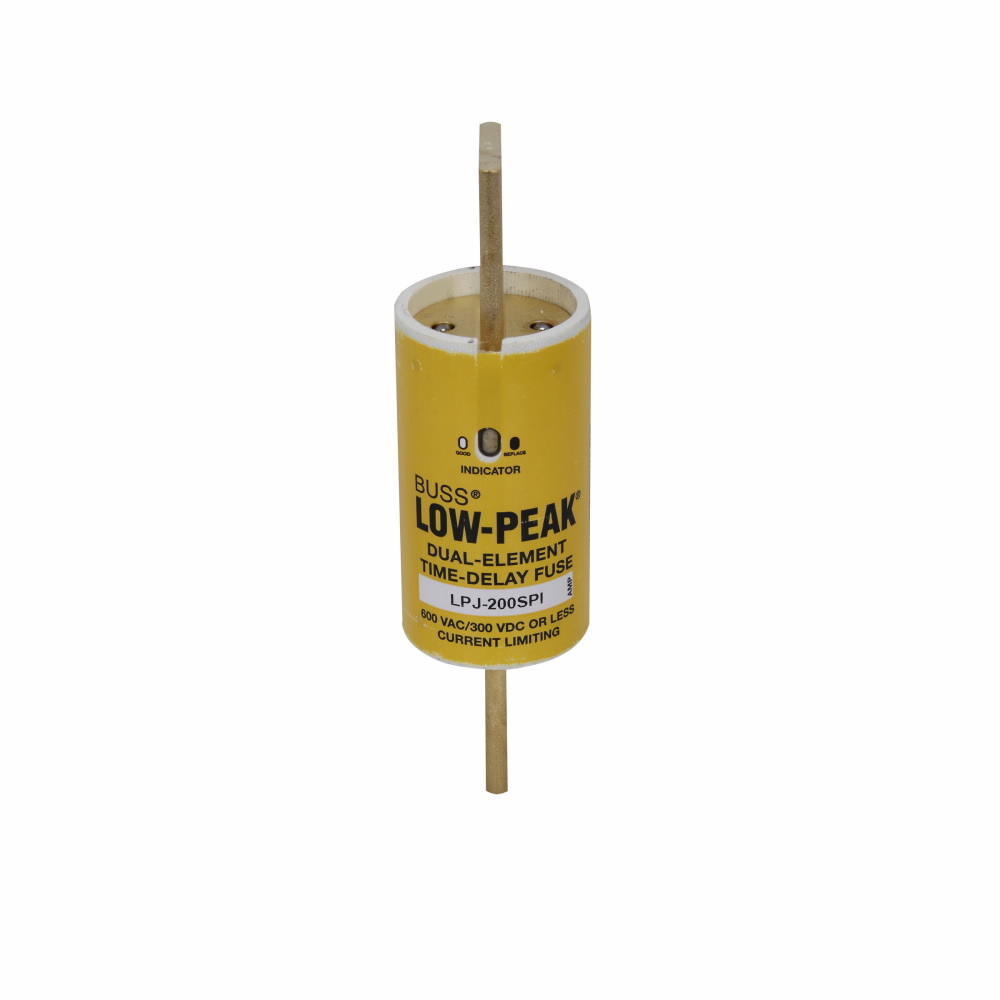

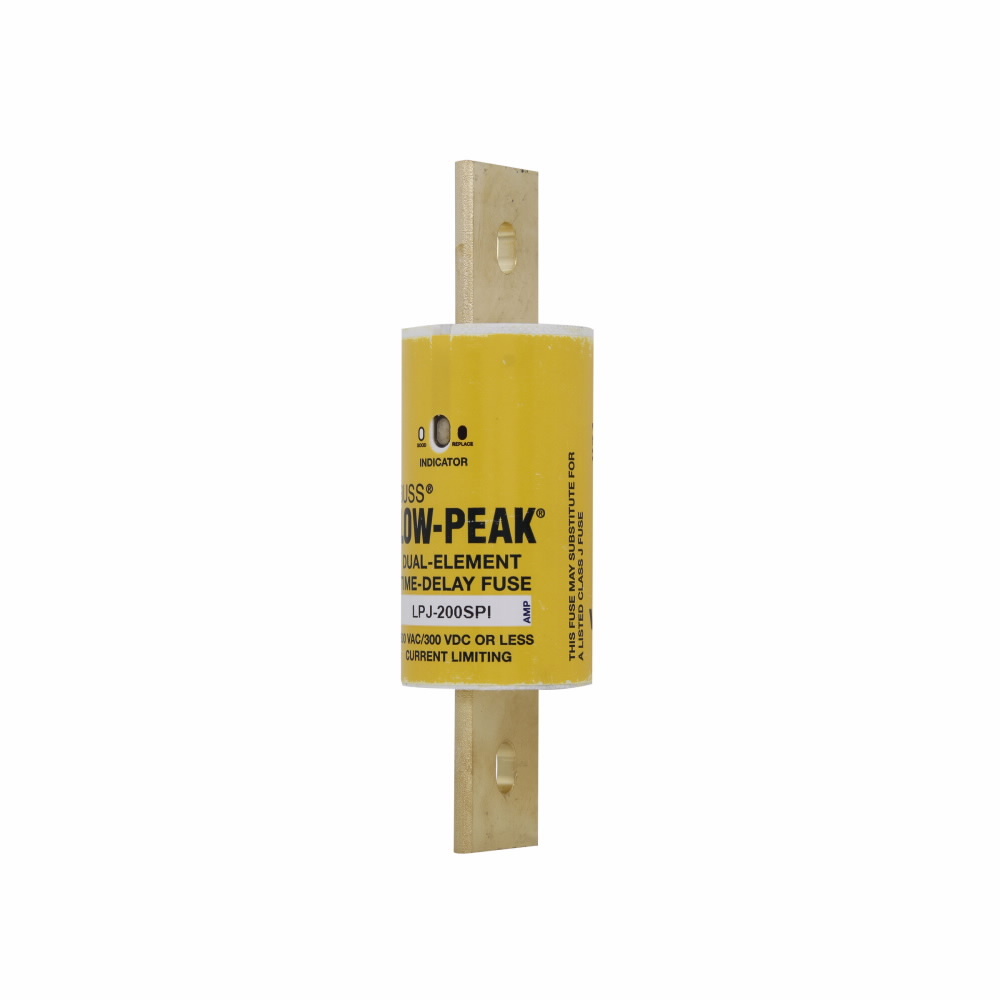

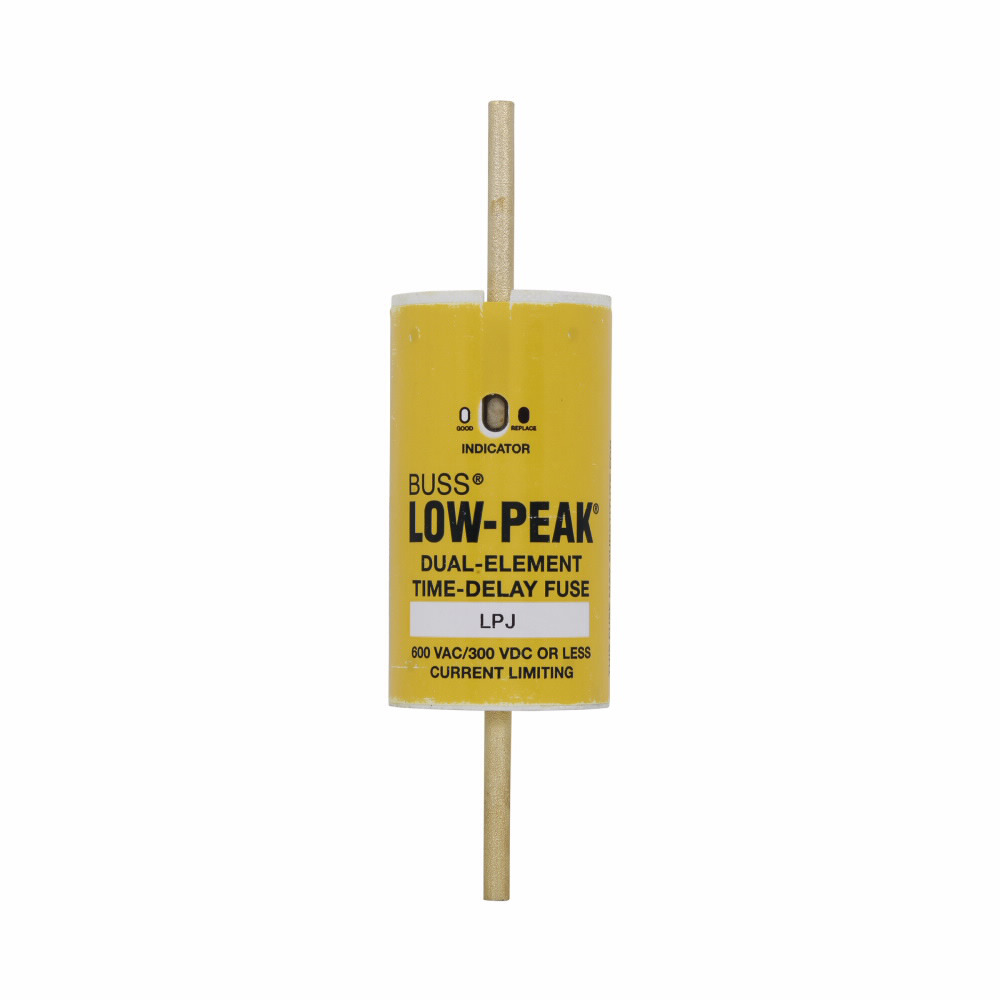

Eaton Bussmann series LPJ fuse, Low-peak fuse, 200 A, Dual, Class J, With Indicator, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- LPJ-200SPI
- UPC:
- 051712628235
- Item #:
- 565942
Eaton Bussmann series LPJ fuse, Low-peak fuse, 200 A, Dual, Class J, With Indicator, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc
- MFR #:
- LPJ-200SPI
- UPC:
- 051712628235
- Item #:
- 565942
Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint
Manuals & Documentation
| Catalog Number | LPJ-200SPI |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Bolted blade end x bolted blade end |
| Interrupt Rating | 300 kAIC at 600 Vac|100 kAIC Vdc |
| Response Time | 10 sec at 500% |
| Special Features | Indicating, High in-rush current motor protection |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712628235 |
| GTIN | 00051712628235 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 1.63 In Diameter X 5.75 In Length |
| Voltage Rating | 600 Vac, 300 Vdc |
