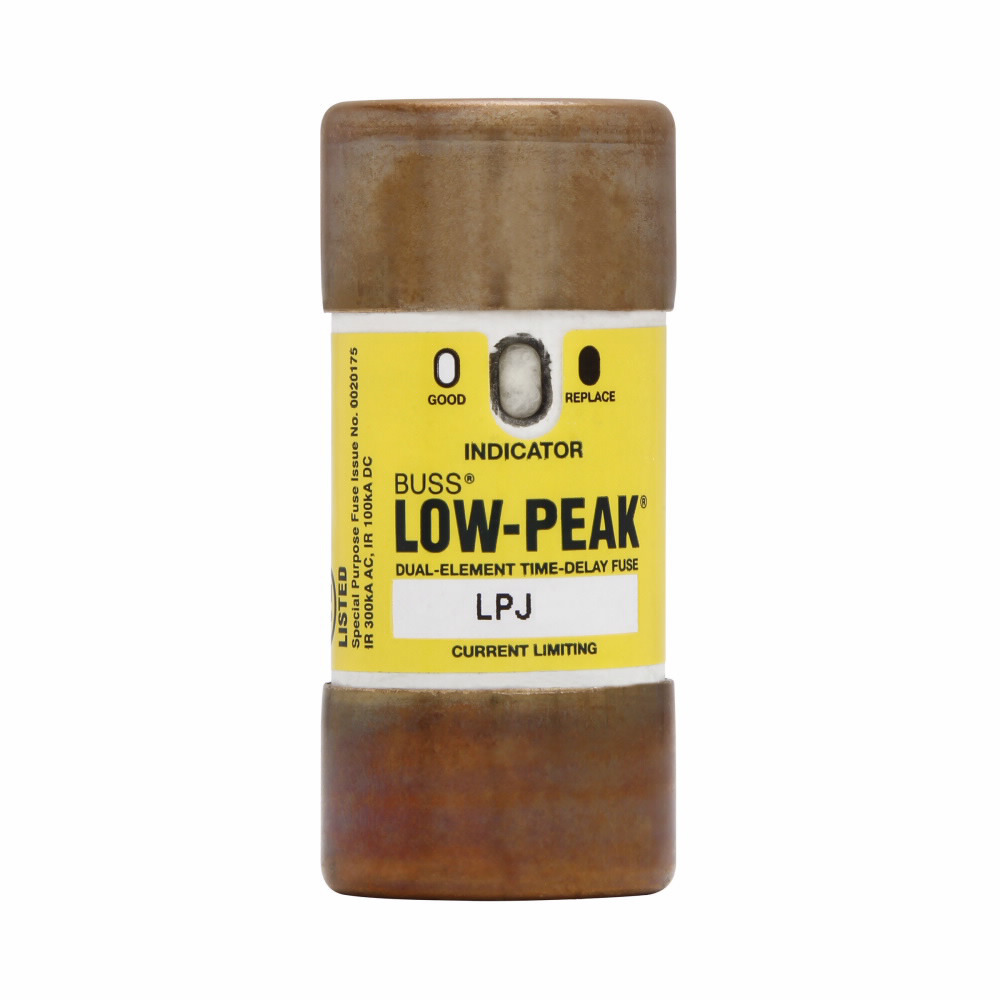

LPJ-35SPI Low-Peak Current Limiting Time Delay Fuse, 35 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, J Class, Cylindrical Body

MFR:
Eaton Bussmann
MFR #:
LPJ-35SPI
UPC:
051712626361
Item #:
565873

Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint

Manuals & Documentation
Catalog Number LPJ-35SPI
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Multiple
Made in USA No
Amperage Rating 35
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Interrupt Rating 100 kAIC Vdc|300 kAIC at 600 Vac
Response Time 10 sec at 500%
Special Features Indicating, High in-rush current motor protection
Standard CE Marked,RoHS Compliant
UPC 051712626361
GTIN 00051712626361
Item Type Fuse
Weight UOM Pounds
Size 1.06 In Diameter X 2.38 In Length
Voltage Rating 600 Vac, 300 Vdc
