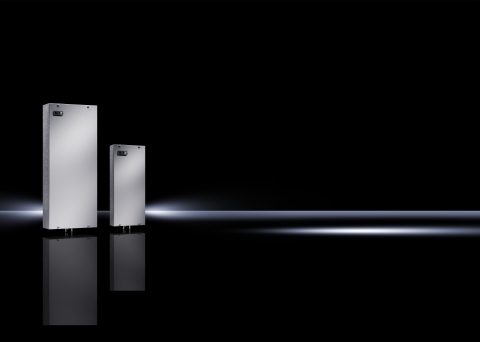

3386640 TopTherm SK Series 3-Phase Cooling Unit, 400/460 V AC, 3.4 A, 50/60 Hz, IP34/54 Enclosure, 7506/8530/10236/11260 Btu
- MFR:
- Rittal
- MFR #:
- 3386640
- UPC:
- 639889003521
- Item #:
- 563986
3386640 TopTherm SK Series 3-Phase Cooling Unit, 400/460 V AC, 3.4 A, 50/60 Hz, IP34/54 Enclosure, 7506/8530/10236/11260 Btu
- MFR #:
- 3386640
- UPC:
- 639889003521
- Item #:
- 563986
TopTherm roof-mounted cooling units Blue e, Total cooling output 0.50 - 4.00 kW, total cooling output L35L35 at 50Hz: 10236, material: Stainless steel, supply includes: Nano-coated condenser, Integral electric condensate evaporation, Fully wired ready for connection (plug-in terminal strip), Drilling template, Assembly parts, description: Energy-efficient Blue e roof-mounted cooling units in output categories from 500 W to 4,000 W, with integral e-Comfort controller, RiNano coating on the condenser and electrical condensate evaporation as standard.
| Catalog Number | 3386640 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Frequency Rating | 50/60 HZ |
| Phase | 3 |
| Standard | UL Recognized, cUL Recognized, TUV, CSA Certified, DINEN14511 |
| UPC | 639889003521 |
| GTIN | 00639889003521 |
| Item Type | Roof Mounted Cooling Unit |
| Dimensions | 19 (H) x 31 (W) x 23 (D) IN |
| Operating Temperature | +10 to +55 DEG C |
| Voltage Rating | 400/460 |
