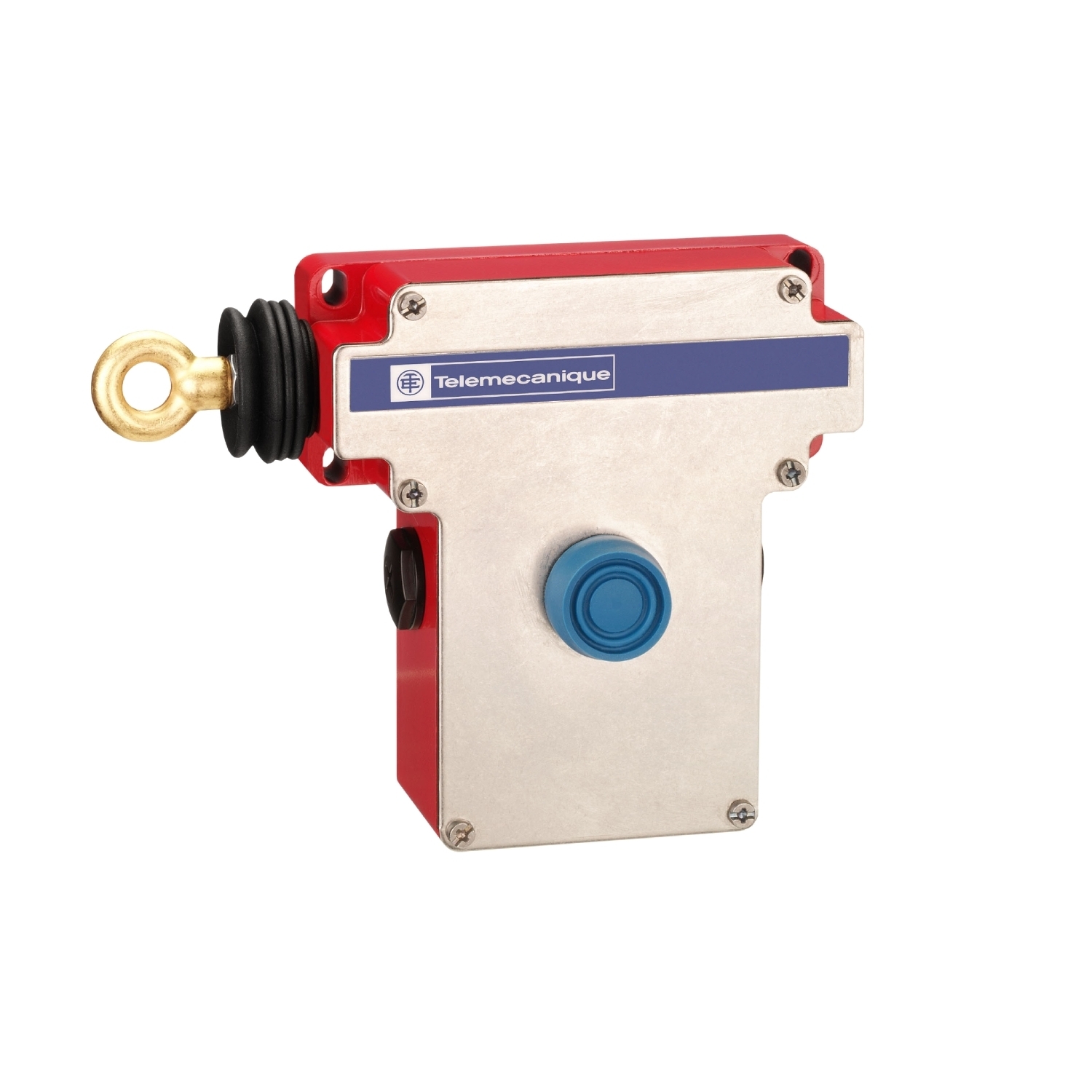

XY2CE2A250H7 Preventa XY2-CE Latching Emergency Stop Rope Pull Switch, 300 V AC, 10 A, 2 Poles, 1NO-1NC Contact
- MFR:
- Telemecanique Sensors
- MFR #:
- XY2CE2A250H7
- UPC:
- 785901459590
- Item #:
- 563407
XY2CE2A250H7 Preventa XY2-CE Latching Emergency Stop Rope Pull Switch, 300 V AC, 10 A, 2 Poles, 1NO-1NC Contact
- MFR #:
- XY2CE2A250H7
- UPC:
- 785901459590
- Item #:
- 563407
This XY2CE Emergency Stop Rope pull Switch is designed with a left hand side anchor point, allowing operator to trigger the stop of potentially dangerous machines at any point of its working area. It operates with a maximum rope length of 70 meters. It has a Zamak body with a booted pushbutton reset, Nitrile bellows, no pilot light, and 1 normally open and 1 normally closed slow break contacts. Its B10D reliability data is 300 000. This emergency stop rope pull switch is suitable for woodworking machines, shears, conveyor systems, printing machines, textile machines, rolling mills, test laboratories, paint shops, surface treatment works, etc. Its IP66 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, EN/ISO 13850, UL NISD, CSA C22.2 No 14-13 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Manuals & Documentation
| Catalog Number | XY2CE2A250H7 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Action | Slow-break |
| Amperage Rating | 10 |
| Application | XY2CE,XY2CE |
| Color | Red RAL 3000 |
| Connection | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | Stainless steel |
| Special Features | Without pilot light |
| Standard | 10 GN 10-300 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,EN/ISO 13850-EN/IEC 60947-5-5-EN/IEC 60204-1-EN/IEC 60947-5-1-MACHINERY DIRECTIVE 2006/42/EC-UL 508-CSA C22.2 NO 14-WORK EQUIPMENT DIRECTIVE 2009/104/EC,IP66 IEC 60529,UL CATEGORY NISD EMERGENCY STOP DEVICES-CSA-CCC |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=663822&lang=en-us |
| UPC | 785901459590 |
| GTIN | 03389118132863 |
| Item Type | Latching emergency stop rope pull switch |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
