Appleton

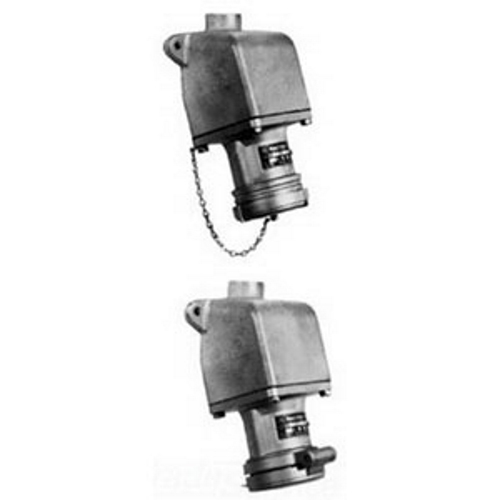

ADRE6034-150 Powertite 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With AEE Mounting Box, 600 V AC/250 V DC, 60 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
ADRE6034-150
UPC:
781381158664
Item #:
56265

Powertite Grounding Style 2 Receptacle With AEE Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC,

Manuals & Documentation
Catalog Number ADRE6034-150
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ACP6034BC Metallic And NMACP6034BC Nonmetallic Clamping Ring Plugs
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN; Weatherproof spring door, brass with beryllium copper springs
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381158664
GTIN 00781381158664
Item Type Grounding Style 2 Receptacle With AEE Mounting Box
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex)
