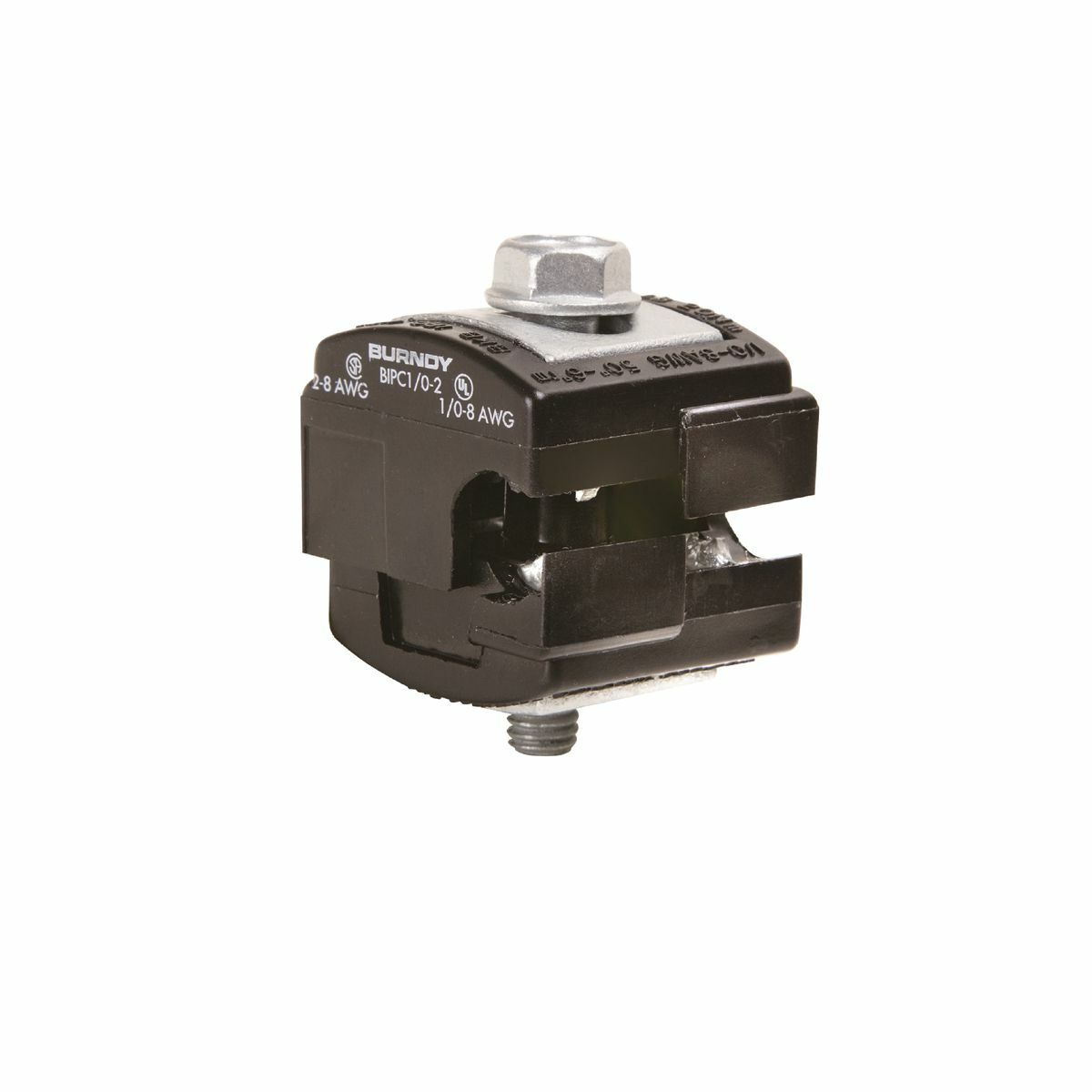

BIPC1/02 Insulation Piercing Connector, 8 to 1/0 AWG Aluminum/Copper Conductor, 5/16 in Bolt, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BIPC1/02
- UPC:
- 781810128701
- Item #:
- 561354
BIPC1/02 Insulation Piercing Connector, 8 to 1/0 AWG Aluminum/Copper Conductor, 5/16 in Bolt, Aluminum
- MFR #:
- BIPC1/02
- UPC:
- 781810128701
- Item #:
- 561354
Manuals & Documentation
| Catalog Number | BIPC1/02 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Splicing And Tapping Aluminum And Copper Conductors |
| Insulation | Y |
| Material | Aluminum |
| Special Features | Features: Insulation Piercing Capability: Eliminates The Need For Conductor Insulation Stripping, UL486B Listed, AL9CU Rated: For Copper And Aluminum Conductor Combinations Up To 90 DEG C 600 Volt Applications, Insulation Piercing Design: Eliminates The Need For Taping, Easy Snap-Out Tabs: Eases Installation, Protects Connection From Dirt And Debris, Simple Bolt-On Connection: Eases Installation, Ideally Suited For Splicing And Tapping Aluminum And Copper Conductor Wire Sizes: #10 AWG To 500 KCMIL, Stud/bolt Size: 5/16-18 Diameter, Installation Torque: 180 IN-LB, Width: 2.56 IN, Length: 1.53 IN, Height: 2 IN, Socket Size: 1/2 IN |
| Standard | UL 486A-486B |
| UPC | 781810128701 |
| GTIN | 00781810128701 |
| Item Type | BIPC |
