Appleton

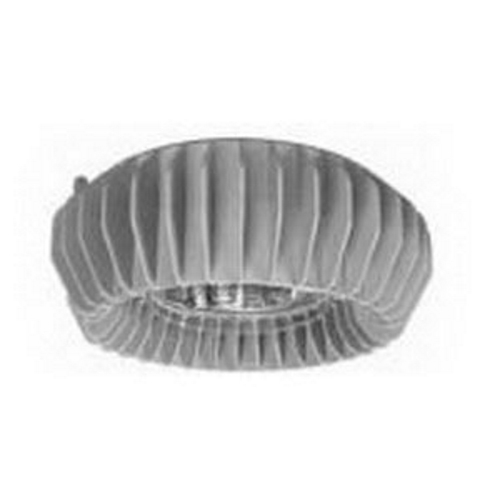

MLEDN17P5BU Mercmaster Enclosed and Gasketed Fixture With Guard, (1) Lamp, 120 to 277 V AC, Epoxy Clad Housing

MFR:
Appleton Electric
MFR #:
MLEDN17P5BU
UPC:
781381931502
Item #:
560786

Mercmaster Enclosed And Gasketed Luminaire, Lamp Type: 74 WTT 6076 LM 70 CRI 60000 HR 5650 DEG K LED, Lamp Wattage: 74 WTT, Voltage Rating: 120 - 277 VAC, Material: Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum Ballast Body, Stainl

Manuals & Documentation
Catalog Number MLEDN17P5BU
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Marine And Wet Locations, Wide Range Of Industrial, Chemical Processing And Other Areas Where Flammable Gases And Vapors Are Present, Areas Of Low Clearance, Low Ceiling Heights Or Where Fixture Weights Must Be Minimized, Non-Hazardous Locations Where Severe Weather Conditions, Excessive Moisture, Dirt, Dust, Corrosive Atmosphere Or High Ambient Temperatures Are Encountered, Pulp And Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas, Waste And Sewage Treatment, Parking Garages, Other Areas Where Dust, Water, Dirt And Rough Usage Are A Problem
Lamp Type 74 WTT 6076 LM 70 CRI 60000 HR 5650 DEG K LED
Special Features Compact light weight low profile design is suited for low mounting heights; Modular design allows scores of fixture component combinations to meet installation needs; Hinge has high lip for added safety during installation and servicing; Hinge and bolt construction assures 360 DEG compression at all points on ballast housing gasket for positive sealing; Swing away design of captive bolt and nut simplifies servicing; NPT and metric threads standard; NEMA type V symmetrical light distribution
Standard NEC/CEC: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III; UL 1598, 1598A, 8750, 844; CSA C22.2 No.250, C22.2 No.137, 065182
UPC 781381931502
GTIN 00781381931502
Item Type Enclosed And Gasketed Luminaire
Voltage Rating 120 - 277
