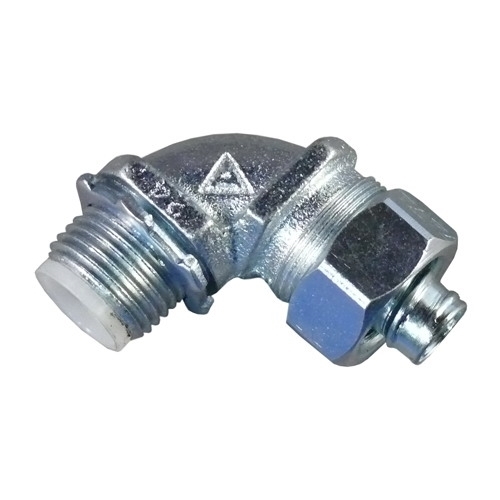

STB Series 90 Degree Liquidtight Connector With Insulated Throat; 1/2 Inch, Malleable Iron, Chromate, Tapered NPT
- MFR:
- Appleton Electric
- MFR #:
- STB-9050
- UPC:
- 781381681605
- Item #:
- 560763
STB Series 90 Degree Liquidtight Connector With Insulated Throat; 1/2 Inch, Malleable Iron, Chromate, Tapered NPT
- MFR #:
- STB-9050
- UPC:
- 781381681605
- Item #:
- 560763
STB Series 90 DEG Liquidtight Connector With Insulated Throat, Size: 1/2 IN, Connection: Threaded X Compression, Material: Malleable Iron, Finish: Chromate, Epoxy Powder Coat/Zinc Electroplated, Thread Length: 0.63 IN, Standard: Class I,
Manuals & Documentation
| Catalog Number | STB-9050 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Connection | Threaded X Compression |
| Finish | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material | Malleable Iron |
| Special Features | Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381681605 |
| GTIN | 00781381681605 |
| Item Type | STB Series 90 DEG Liquidtight Connector With Insulated Throat |
| Size | 1/2 |
