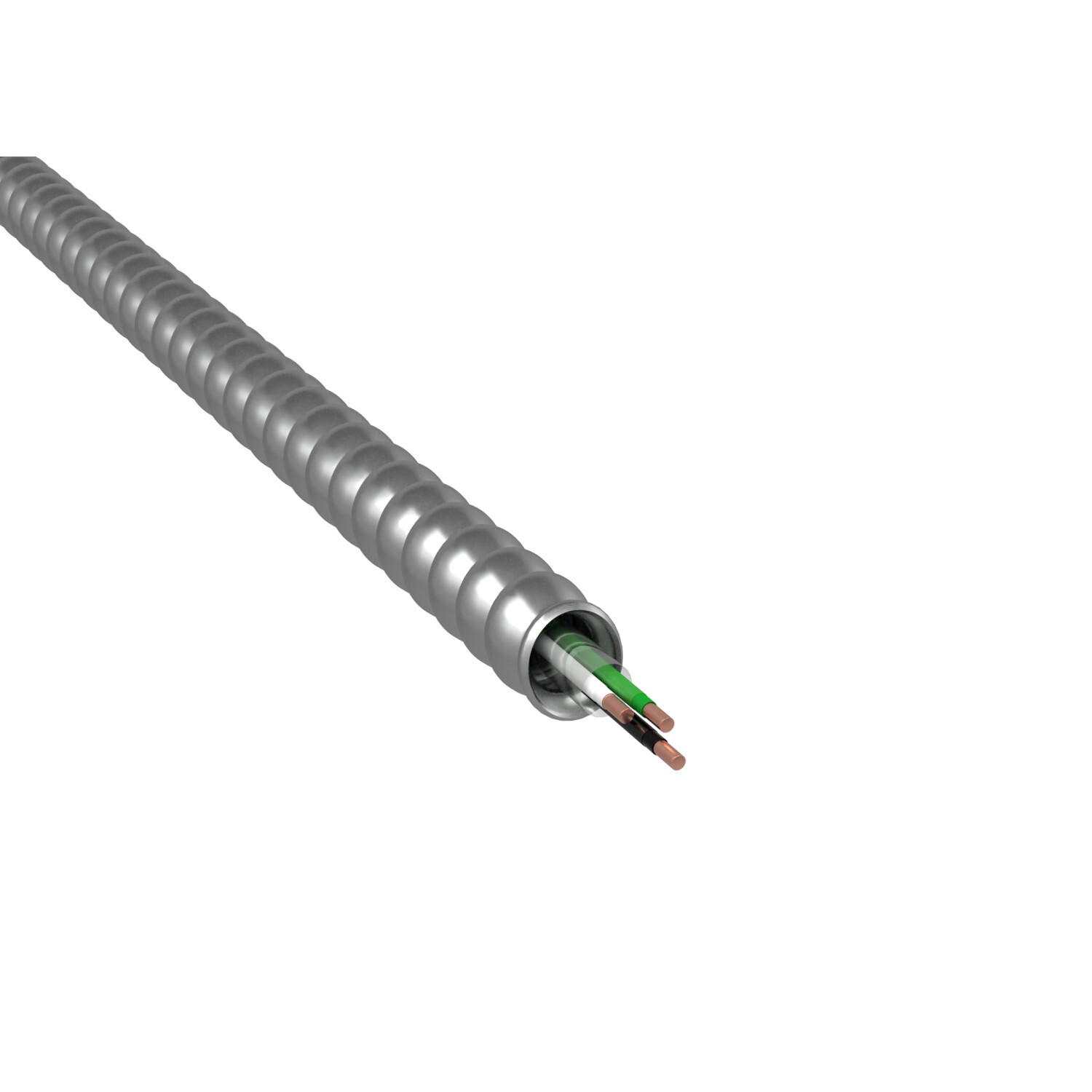

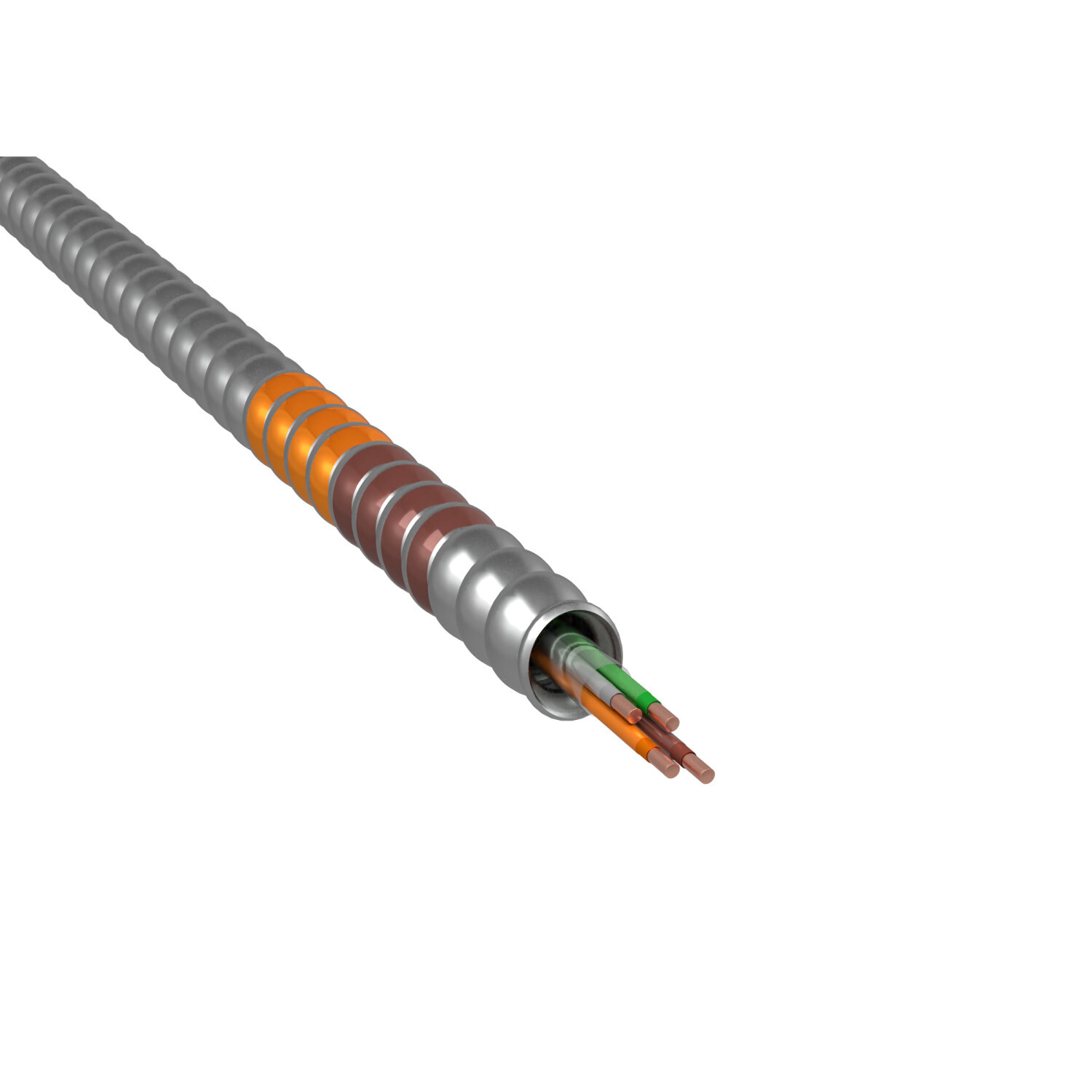

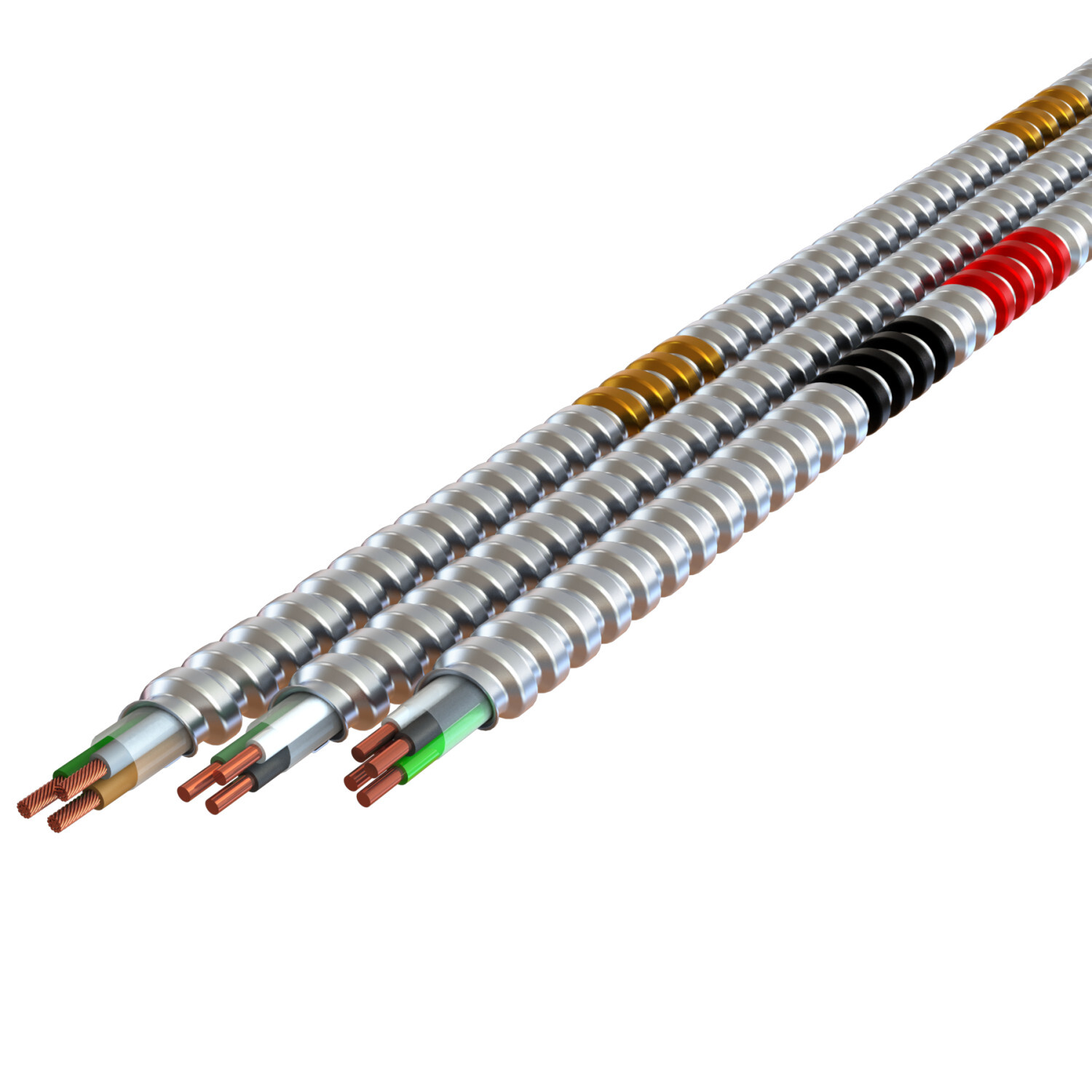

2120-60-00 MC Lite Intermediate Feeder Type MC Armored Cable, Reel Packaging, 600 V, (3) 6 AWG Stranded Copper Conductor, 1000 ft L
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 2120-60-00
- UPC:
- 077680142573
- Item #:
- 560221
2120-60-00 MC Lite Intermediate Feeder Type MC Armored Cable, Reel Packaging, 600 V, (3) 6 AWG Stranded Copper Conductor, 1000 ft L
- MFR #:
- 2120-60-00
- UPC:
- 077680142573
- Item #:
- 560221
Atkore's aluminum interlocked armor Type MC cables are named MC Lite and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.
Manuals & Documentation
| Catalog Number | 2120-60-00 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC CABLE SYSTEMS |
| Sub Brand | MC Lite |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Bend Radius | 14.175 |
| Color | Plain |
| Conductor Material | Copper |
| Conductor Size | 6 AWG |
| Material | Aluminum |
| Number of Conductors | 4 |
| Standard | UL 83, 1479, 1569, 1581, 2556, File Reference E80042 NEC® 230.43, 300.22(C), 330, 392, 396, 501, 502, 503, 504, 505, 518, 520, 530 Federal Specifications A-A-59544 (formerly J-C30B) |
| UPC | 077680142573 |
| GTIN | 00077680142573 |
| Item Type | Intermediate Feeder Size MC Cable |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.429 LB/FT |
| Outside Diameter | 0.945 IN |
| Temperature Rating | 194 |
| Trade Size | 6-3/8-1G STR |
| Voltage Rating | 600V |
