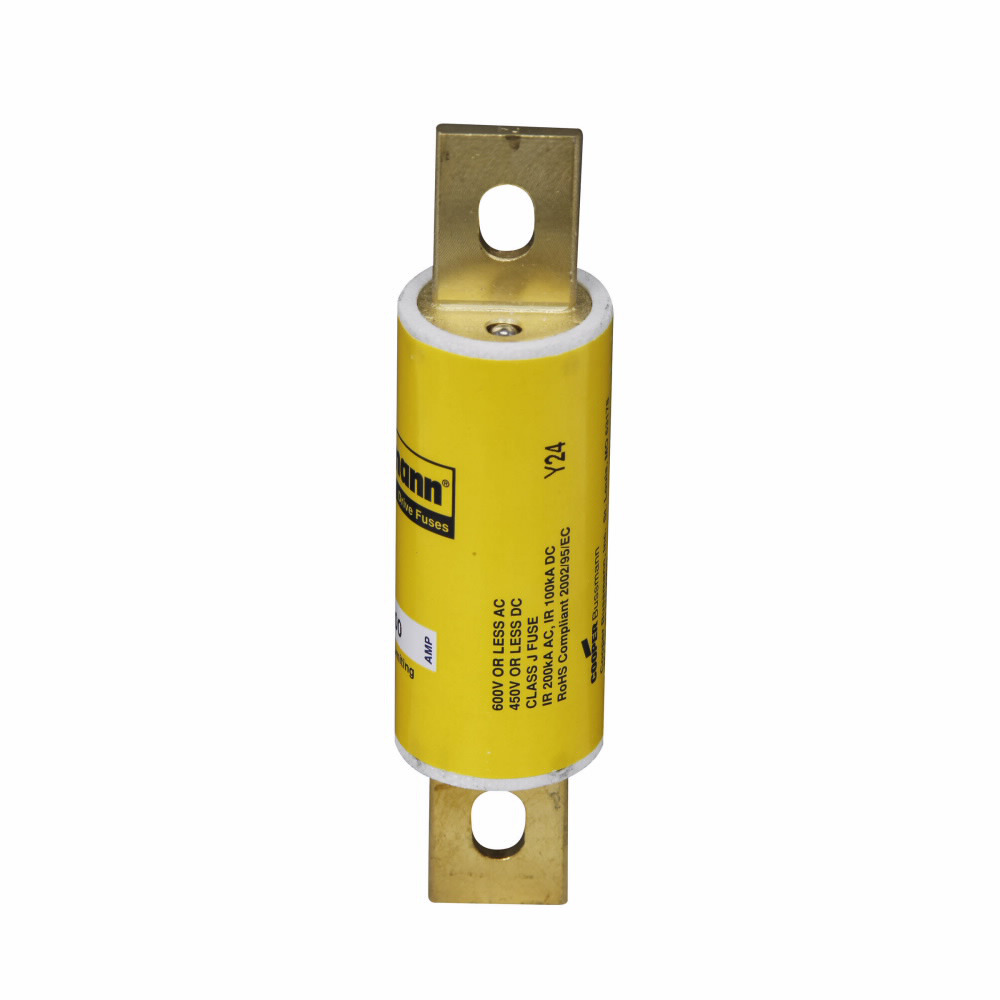

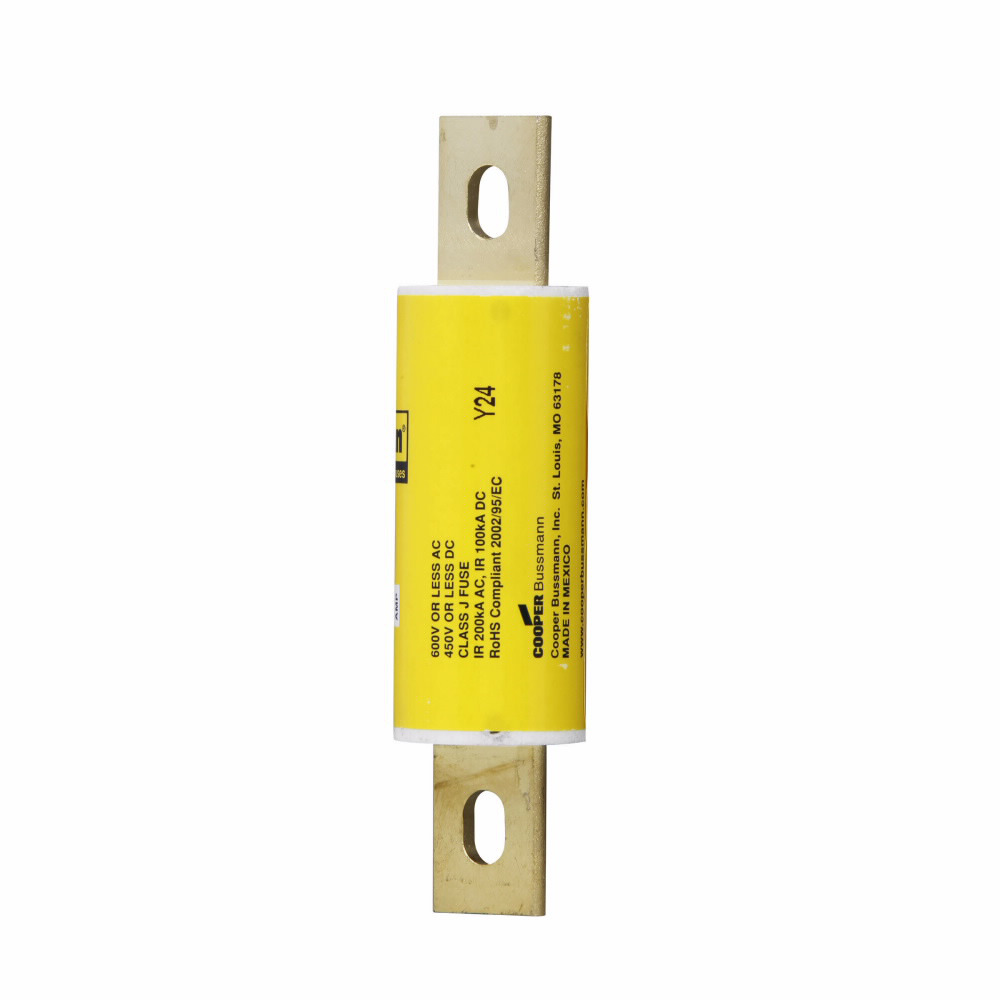

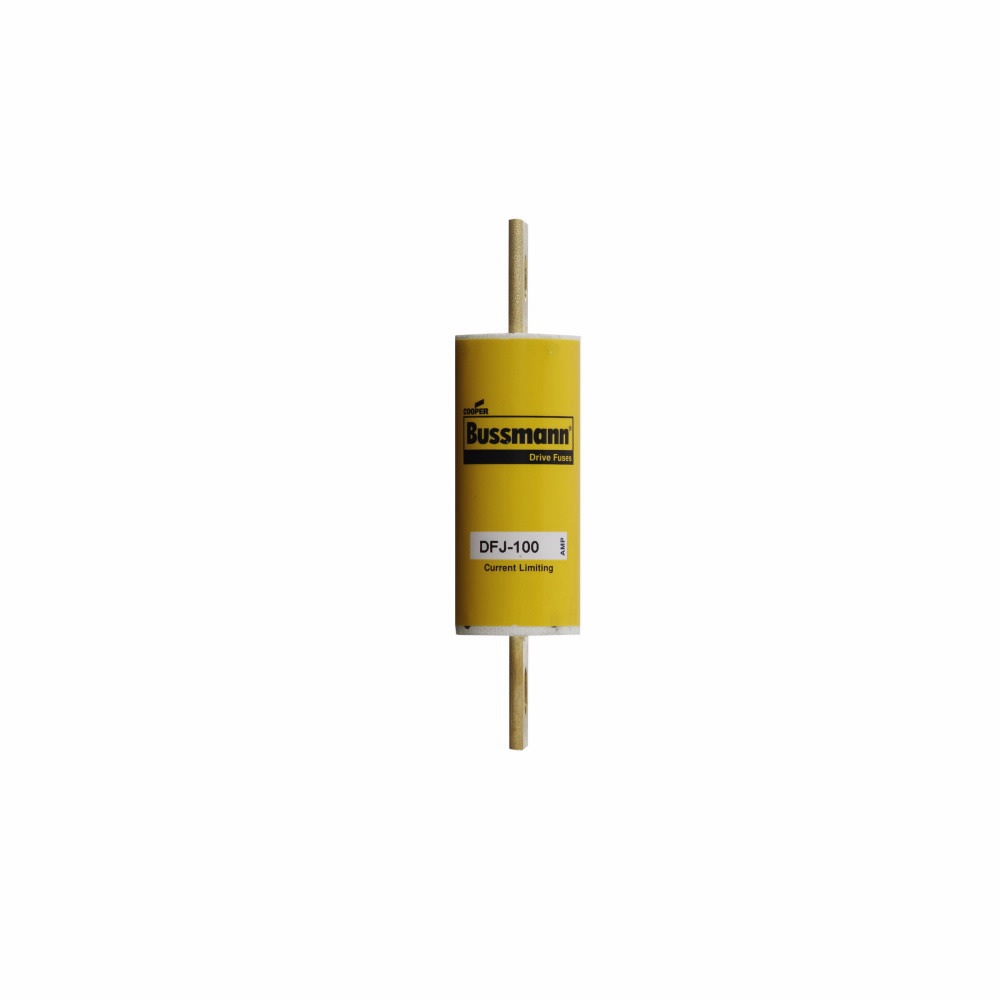

DFJ-100 Current Limiting High Speed Drive Fuse, 100 A, 600 V AC/450 V DC, 200/100 kAIC Interrupt, J Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- DFJ-100
- UPC:
- 051712653411
- Item #:
- 559540
DFJ-100 Current Limiting High Speed Drive Fuse, 100 A, 600 V AC/450 V DC, 200/100 kAIC Interrupt, J Class, Cartridge Body
- MFR #:
- DFJ-100
- UPC:
- 051712653411
- Item #:
- 559540
High speed fuses provide superior protection or isolation for components such as diodes, silicon controlled rectifiers (SCRs), Gate torn-Off Thyristors (GTOs) and IGBTs and in light and heavy harsh DC traction applications as high as 4000Vdc and 10,000A. Also used for the protection of DC link/power converters. Optimized dimensions and materials allow for excellent thermal dissipation for high current cycling environments, or heavy duty applications.
Manuals & Documentation
| Catalog Number | DFJ-100 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton |
| Sub Brand | Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 100 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200 kAIC at 600 Vac|100 kAIC 450 Vdc |
| Material | Melamine tube |
| Special Features | Silver Fuse Element |
| Standard | UL Listed ,CSA Certified,CE Marked,RoHS Compliant |
| UPC | 051712653411 |
| GTIN | 00051712653411 |
| Item Type | High speed fuse |
| Dimensions | 4.8300 IN X 1.1800 IN X 1.1900 IN |
| Weight UOM | Pounds |
| Size | 1.13 In Diameter X 4.63 In Length |
| Voltage Rating | 600 Vac or less, 450 Vdc or less |
