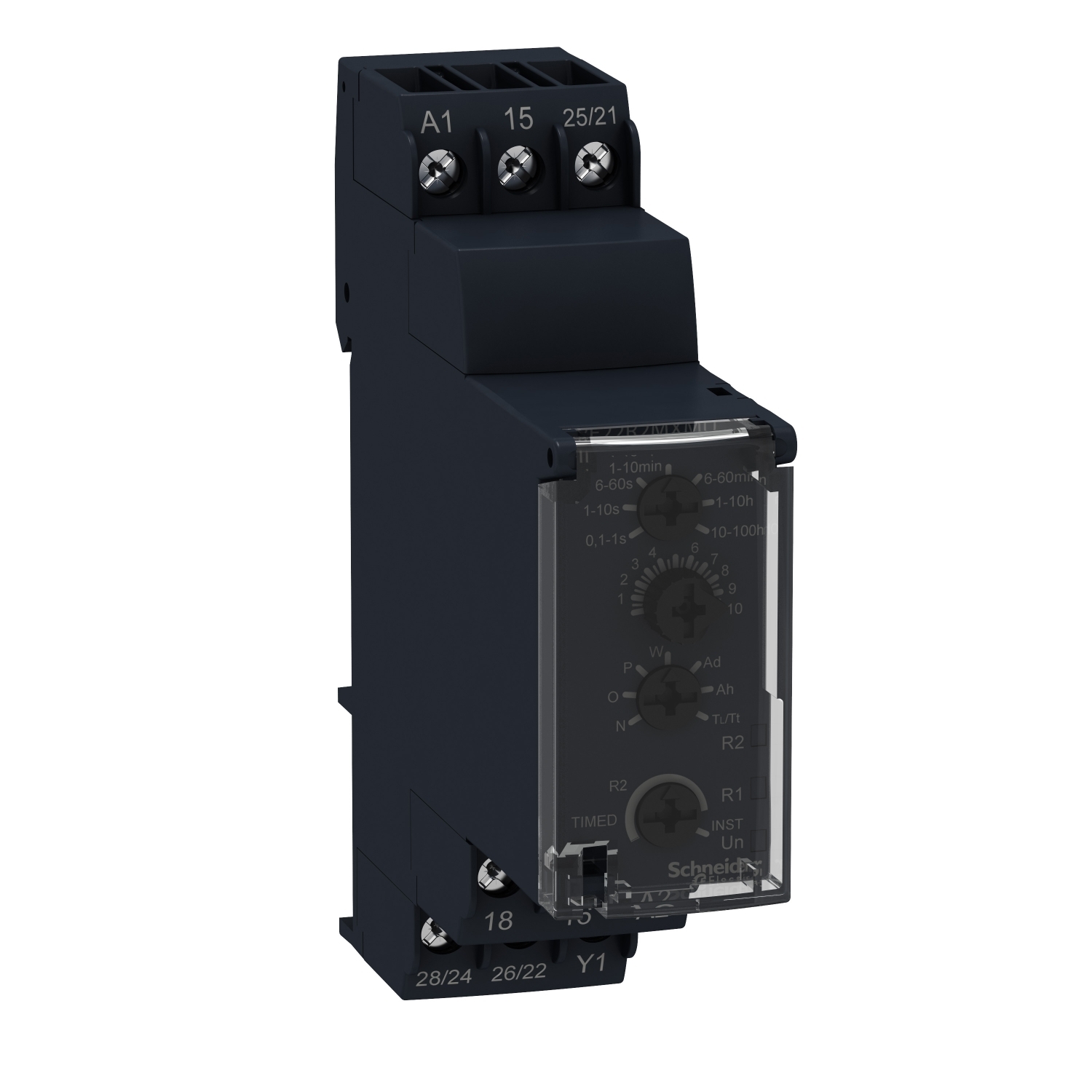

RE22R2MMU Zelio Modular Timing Relay, 10 to 100 hr, 6 to 60 s, 0.1 to 1 s, 1 to 10 hr, 1 to 10 s, 1 to 10 min, 6 to 60 min Setting, 250 V AC, 2CO 2 Form C Contact

MFR:: Schneider Electric
MFR #:: RE22R2MMU
Item #:: 552902

Schneider Electric

RE22R2MMU Zelio Modular Timing Relay, 10 to 100 hr, 6 to 60 s, 0.1 to 1 s, 1 to 10 hr, 1 to 10 s, 1 to 10 min, 6 to 60 min Setting, 250 V AC, 2CO 2 Form C Contact

MFR #:: RE22R2MMU
Item #:: 552902

Product Details

This Harmony RE22 modular multi function timer can be set between 0.1 seconds and 100 hours. It provides multi functions and it is mountable on DIN rail. This modular multi function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Manuals & Documentation

Specifications

Catalog Number	RE22R2MMU
Manufacturer	Schneider Electric
Brand	Schneider Electric
Country of Origin	Indonesia
Made in USA	No

RoHS URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360697379&lang=en-us
GTIN	03606480676581
Item Type	Relay;Modular timing relay

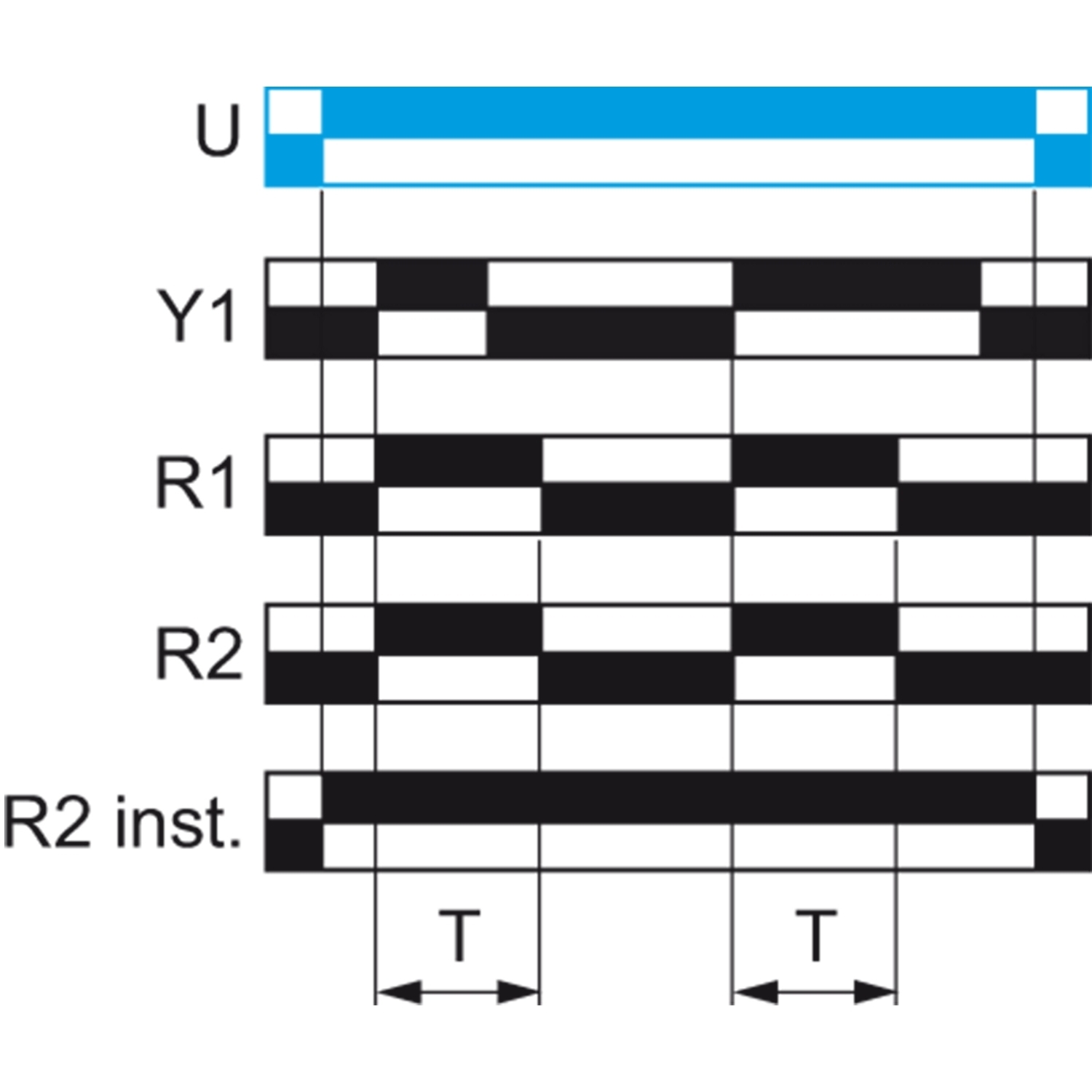

Timing Range	10...100 h;6...60 s;0.1...1 s;1...10 h;1...10 s;1...10 min;6...60 min;Power on-delay - A- Power on-delay relay;on-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal;power on-delay - At- Power on-delay relay w/ pause/summation (Y1);interval - B- Single interval relay w/ control signal;interval - Bw- Double interval relay w/ control signal;off-delay - C- Off-delay relay w/ control signal;symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off);symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on);interval - H- Interval relay;interval - Ht- Interval relay w/ pause/summation (Y1)
