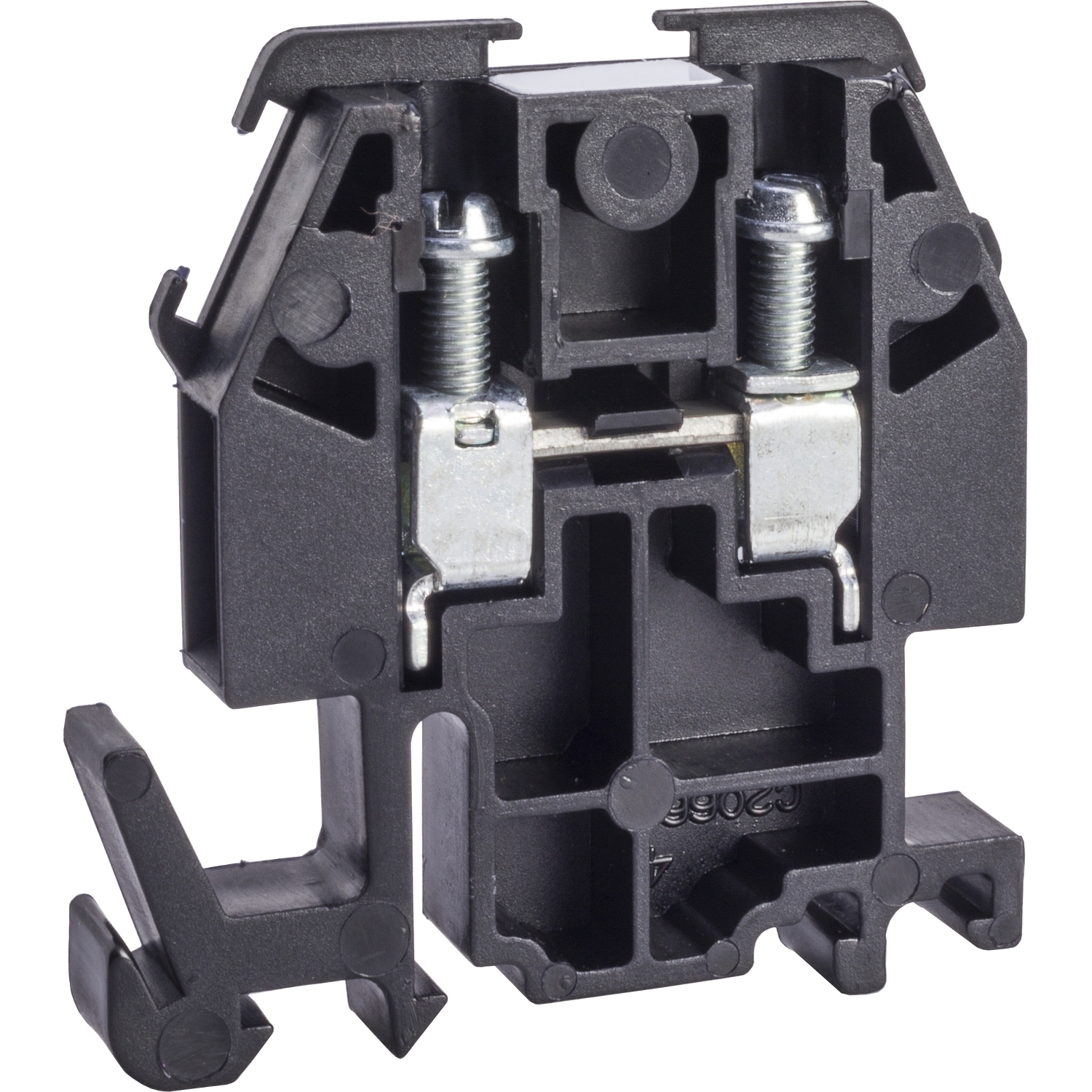

9080GMB6 Linergy Type G GM6B Terminal Block, 600 V AC/DC, 30 A, 22 to 10 AWG Copper Wire, DIN Rail Mount
- MFR:
- Schneider Electric
- MFR #:
- 9080GMB6
- UPC:
- 785901743279
- Item #:
- 551882
9080GMB6 Linergy Type G GM6B Terminal Block, 600 V AC/DC, 30 A, 22 to 10 AWG Copper Wire, DIN Rail Mount
- MFR #:
- 9080GMB6
- UPC:
- 785901743279
- Item #:
- 551882
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in black. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
Manuals & Documentation
| Catalog Number | 9080GMB6 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372437&lang=en-us |
| UPC | 785901743279 |
| GTIN | 00785901743279 |
| Width | 1.72 |
| Width UOM | Inch |
| Height | 1.82 |
| Height UOM | Inch |
| Depth | 0.235 IN |
