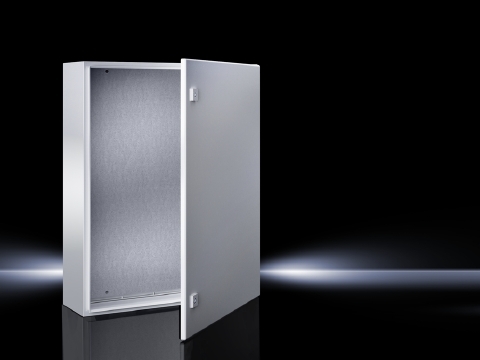

1090500 AE Series 1-Door Compact Enclosure, 24 in W x 9.8 in D x 39 in H, NEMA 4/IP66, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 1090500
- UPC:
- 639889373570
- Item #:
- 551202
1090500 AE Series 1-Door Compact Enclosure, 24 in W x 9.8 in D x 39 in H, NEMA 4/IP66, Sheet Steel
- MFR #:
- 1090500
- UPC:
- 639889373570
- Item #:
- 551202
Compact enclosures AE, material: Enclosure: Sheet steel, Door: Sheet steel, all-round foamed-in PU seal, surface: Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint, Mounting plate: Zinc-plated, color: RAL 7035, supply includes: Enclosure with hinged door(s), of all-round solid construction, Gland plate(s) in enclosure base, Mounting plate, description: Enclosure with door of sheet steel, spray-finished with mounting plate and gland plate in the base Protection category up to IP 66.
Features
- Size: 23.600 Inch Width x 9.800 Inch Depth x 39.400 Inch Height
- One-piece enclosure body
- Foamed-in-place polyurethane gasket
| Catalog Number | 1090500 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Application | Industrial |
| Cable Entry | Gland Plates with Knockouts, Gland Plates with Membranes, Connector Gland |
| Color | RAL 7035 |
| Construction | All-Round Solid Construction |
| Insulation | Foamed-in PU Seal |
| Material | Sheet Steel |
| Mounting | Wall |
| NEMA Rating | 4 |
| Standard | TUV, CSA, cULus Listed, UL Listed, CAN/CSA 22.2 No. 14-13, CSA C22.2 No. 94.1-07, UL508A, UL50E, EN 50102, IEC 62262, VDE, Germanischer Lloyd, Russian Maritime Register of Shipping, Lloyds Register of Shipping, Bureau Veritas |
| RoHS Indicator | Yes |
| UPC | 639889373570 |
| GTIN | 00639889373570 |
| Item Type | Compact Enclosure |
| Length | 10.6300 |
| Length UOM | Inch |
| Width | 40.1580 |
| Width UOM | Inch |
| Height | 23.6220 |
| Height UOM | Inch |
| Weight | 89.286 |
| Weight UOM | Pounds |
| Size | 39 (H) x 24 (W) x 9.8 (D) |
