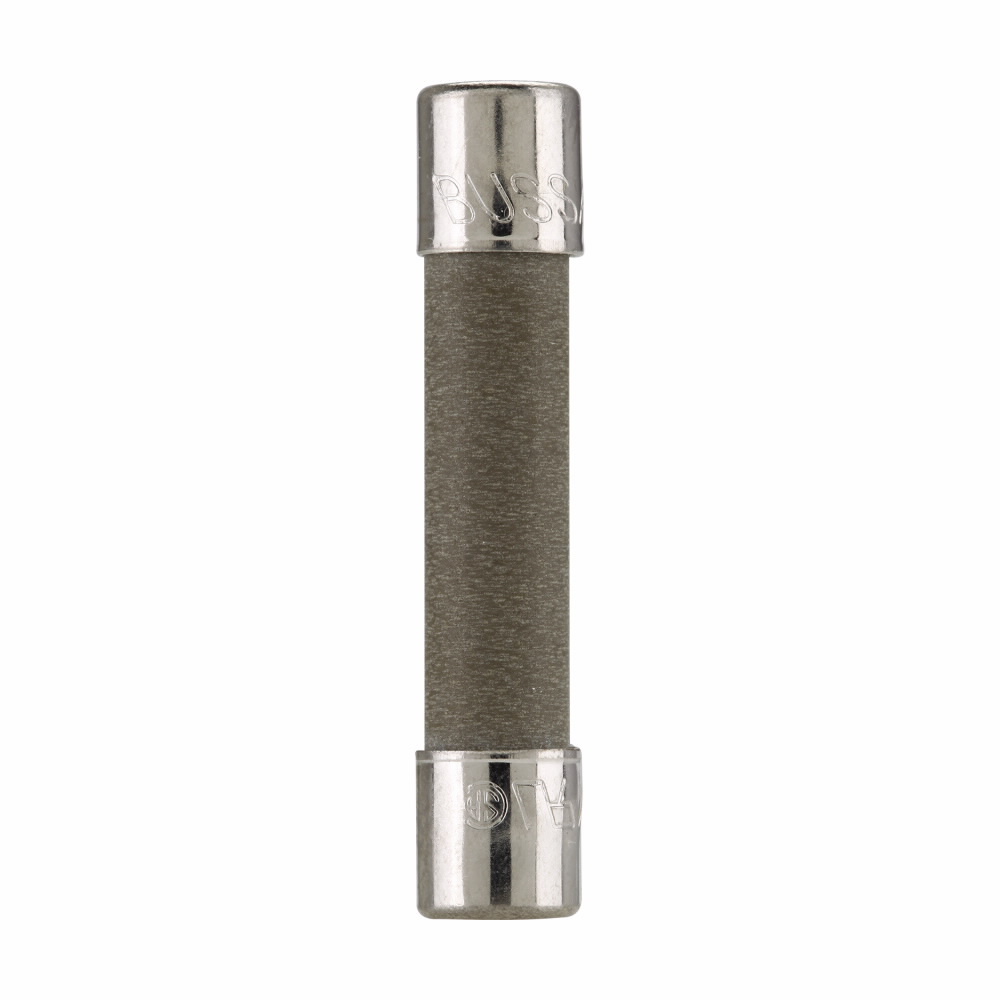

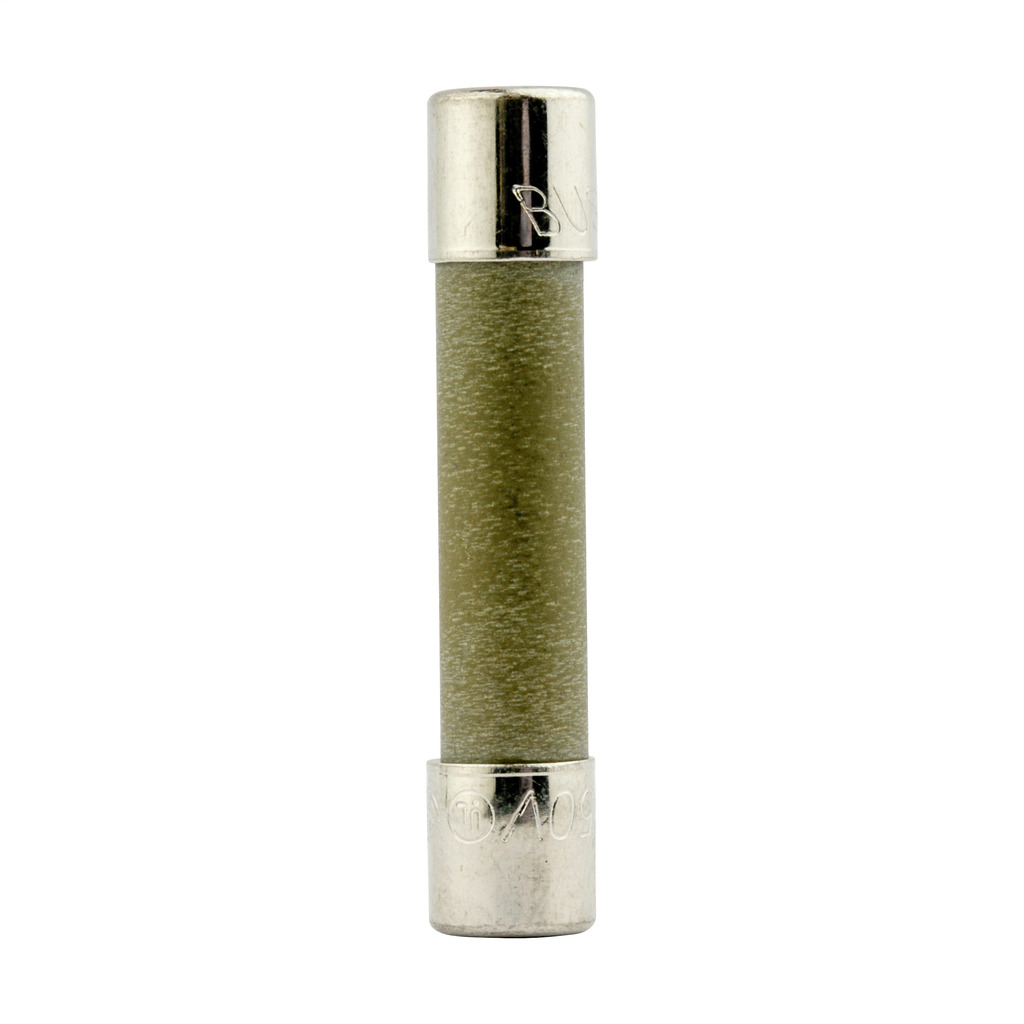

Eaton ABC series Fast-acting fuse 6A, 250 Vac, 125 Vdc, 32 Vac (self certified), ABC-6-R
- MFR:
- Eaton Bussmann
- MFR #:
- ABC-6-R
- UPC:
- 051712646291
- Item #:
- 549685
Eaton ABC series Fast-acting fuse 6A, 250 Vac, 125 Vdc, 32 Vac (self certified), ABC-6-R
- MFR #:
- ABC-6-R
- UPC:
- 051712646291
- Item #:
- 549685
Fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's ABC fast-acting, ceramic body tube 1/4" x 1-1/4" fuses are designed with higher interrupting ratings and voltage ratings to UL 248-14 for overcurrent protection of electronic circuits. This is a RoHS compliant fuse. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals & Documentation
| Catalog Number | ABC-6-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 6 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200 AIC at 250 Vac|10 kAIC at 125 Vac/dc |
| Material | Ceramic tube|Nickel-plated brass endcaps |
| Response Time | 4 hr at 100%, 60 min at 135%, 120 sec at 200% |
| Special Features | Interrupt Rating 200 Amp at 250 Vac, 10000 Amp at 125 Vac/Vdc, Material Ceramic Tube, Nickel Plated Brass Endcap, ROHS Compliant |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712646291 |
| GTIN | 00051712646291 |
| Item Type | Fast-acting fuse |
| Weight UOM | Pounds |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Voltage Rating | 250 Vac, 125 Vdc, 32 Vac (self certified) |
