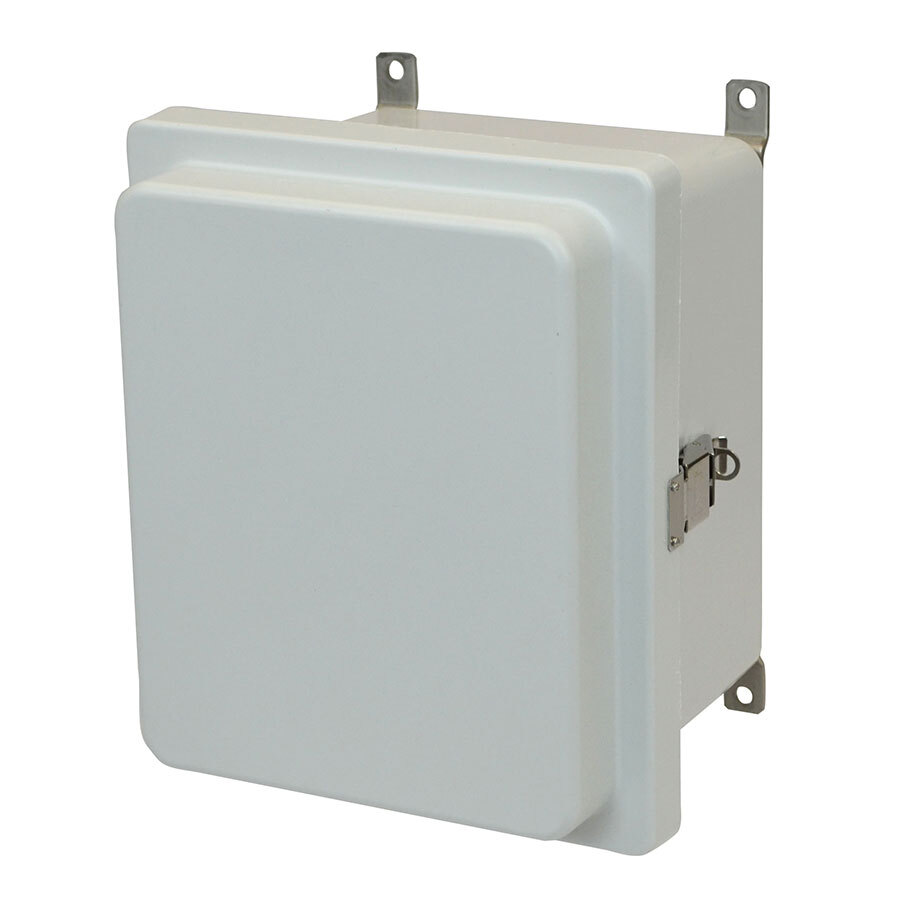

AM-R Series Junction Box; 8.260 Inch Width x 6.130 Inch Depth x 10.140 Inch Height, Ultraguard; Fiberglass Reinforced Polyester, RAL 7035 Light Gray, Foot Mount, Snap Latch Hinged Cover
- MFR:
- Allied Moulded Products
- MFR #:
- AM1086RL
- UPC:
- 085339911029
- Item #:
- 549647
AM-R Series Junction Box; 8.260 Inch Width x 6.130 Inch Depth x 10.140 Inch Height, Ultraguard; Fiberglass Reinforced Polyester, RAL 7035 Light Gray, Foot Mount, Snap Latch Hinged Cover
- MFR #:
- AM1086RL
- UPC:
- 085339911029
- Item #:
- 549647
Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Raised, hinged snap latch Type:, overlapping and opaque cover design with FIP formed-in-place polyurethane gasket system Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:ULTRAGUARD - Fiberglass reinforced polyester - thermoset Size:A=10.14, B=8.26, C=6.13 plus 1.75 raised cover, usable depth=7.21 Color:RAL 7035 - Gray Mounting:Stainless steel feet fastened to back side brass inserts
Manuals & Documentation
| Catalog Number | AM1086RL |
| Manufacturer | Allied Moulded Products |
| Brand | Allied Moulded Products |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less |
| Construction | Compression molded |
| Cubic Capacity | 660 cu. In. (.38 cu. Ft.) |
| Insulation | Nonconductive nonmetallic |
| Material | ULTRAGUARD - Fiberglass reinforced polyester - thermoset |
| Mounting | Stainless Steel Feet Fastened To Back Side Brass Inserts |
| Special Features | Raised, hinged snap latch type, overlapping and opaque cover design with formed-in-place polyurethane gasket system |
| Standard | UL 508A - Industrial Control Panels |
| UPC | 085339911029 |
| GTIN | 00085339911029 |
| Item Type | NEMA 4X Type Nonmetallic Enclosure |
| Size | A=10.14", B=8.26", C=6.13" plus 1.75" raised cover, usable depth=7.21" |
