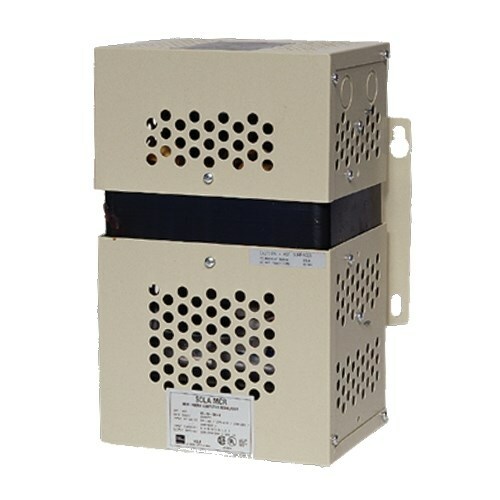

23-23-210-8 CVS Constant Voltage Transformer, 120/208/240/480 V AC Primary, 120/240 VAC Secondary, 1000 VA Power Rating, 60 Hz, 1 Phase
- MFR:
- SolaHD
- MFR #:
- 23-23-210-8
- UPC:
- 783472220557
- Item #:
- 54896
23-23-210-8 CVS Constant Voltage Transformer, 120/208/240/480 V AC Primary, 120/240 VAC Secondary, 1000 VA Power Rating, 60 Hz, 1 Phase
- MFR #:
- 23-23-210-8
- UPC:
- 783472220557
- Item #:
- 54896
Manuals & Documentation
| Catalog Number | 23-23-210-8 |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 500 |
| Application | Industrial Automation and Control Equipment Power PLCs, Broadcast Equipment, Photo Processing Equipment |
| Frequency Rating | 60 |
| Mounting | Bracket |
| Number of Taps | 10 |
| Phase | 1 |
| Primary Voltage | 120/208/240/480 |
| Secondary Voltage | 120/240 |
| Special Features | Superior voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Hardwired, Acts as step-up/step-down transformer, Galvanic isolation, Noise attenuation 40 dB |
| Standard | UL 1012, CSA, ANSI/IEEE C62.41 |
| UPC | 783472220557 |
| GTIN | 00783472220557 |
| Item Type | CVS Hardwired Series - Constant Voltage Transformers |
| Size | 13 High x 9 Wide x 7 Deep |
| Operating Temperature | -20 to 50 degrees C |
