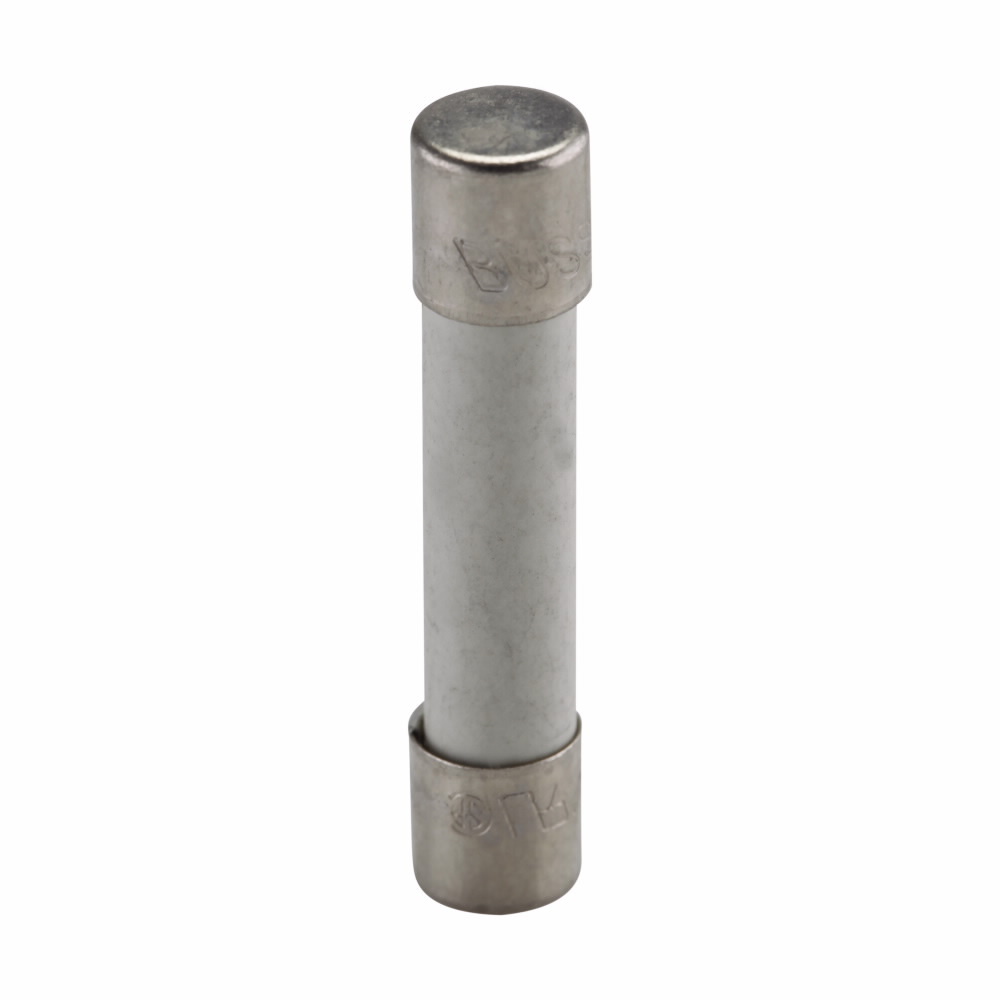

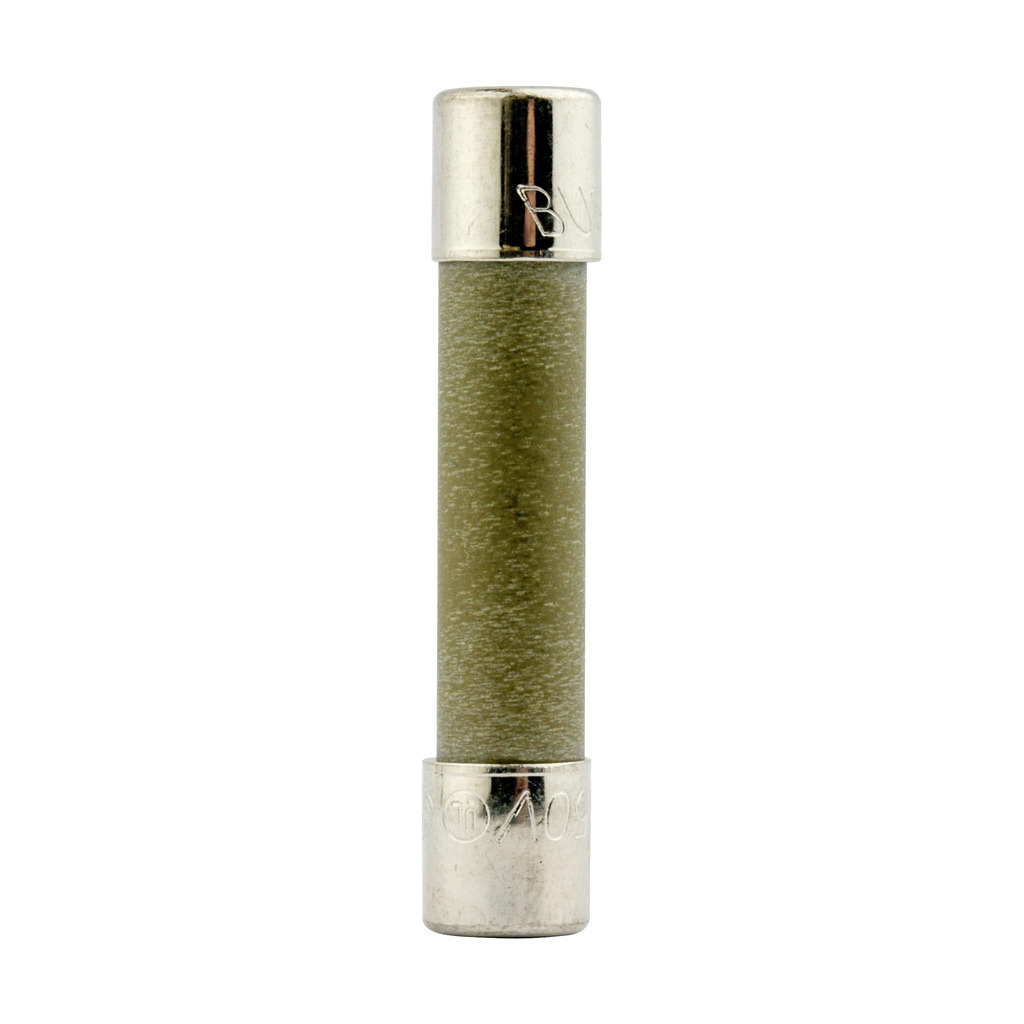

GBB-5-R Size 3AB Very Fast Acting Fuse, 5 A, 250 V AC/125 V DC, 200 A, 10 kA Interrupt, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- GBB-5-R
- UPC:
- 051712549943
- Item #:
- 548879
GBB-5-R Size 3AB Very Fast Acting Fuse, 5 A, 250 V AC/125 V DC, 200 A, 10 kA Interrupt, Cartridge Body
- MFR #:
- GBB-5-R
- UPC:
- 051712549943
- Item #:
- 548879
Very fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of sensitive electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip or purchase with available axial leads for thru-hole installation. Eaton's GBB very fast-acting, ceramic tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of sensitive electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals & Documentation
| Catalog Number | GBB-5-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | China |
| Made in USA | No |
| Amperage Rating | 5 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200 AIC at 250 Vac|10 kAIC at 125 Vac/dc |
| Material | Nickel-plated brass end cap construction|Ceramic tube |
| Response Time | 2 min at 150%, 1 sec at 250% |
| Special Features | Interrupt Rating 200 Amp at 250 Vac, 10000 Amp at 125 Vac/Vdc, Material Ceramic Tube, Nickel Plated Brass Endcap, ROHS Compliant |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712549943 |
| GTIN | 00051712549943 |
| Item Type | Very fast-acting fuse |
| Weight UOM | Pounds |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Voltage Rating | 250 Vac, 125 Vdc |
