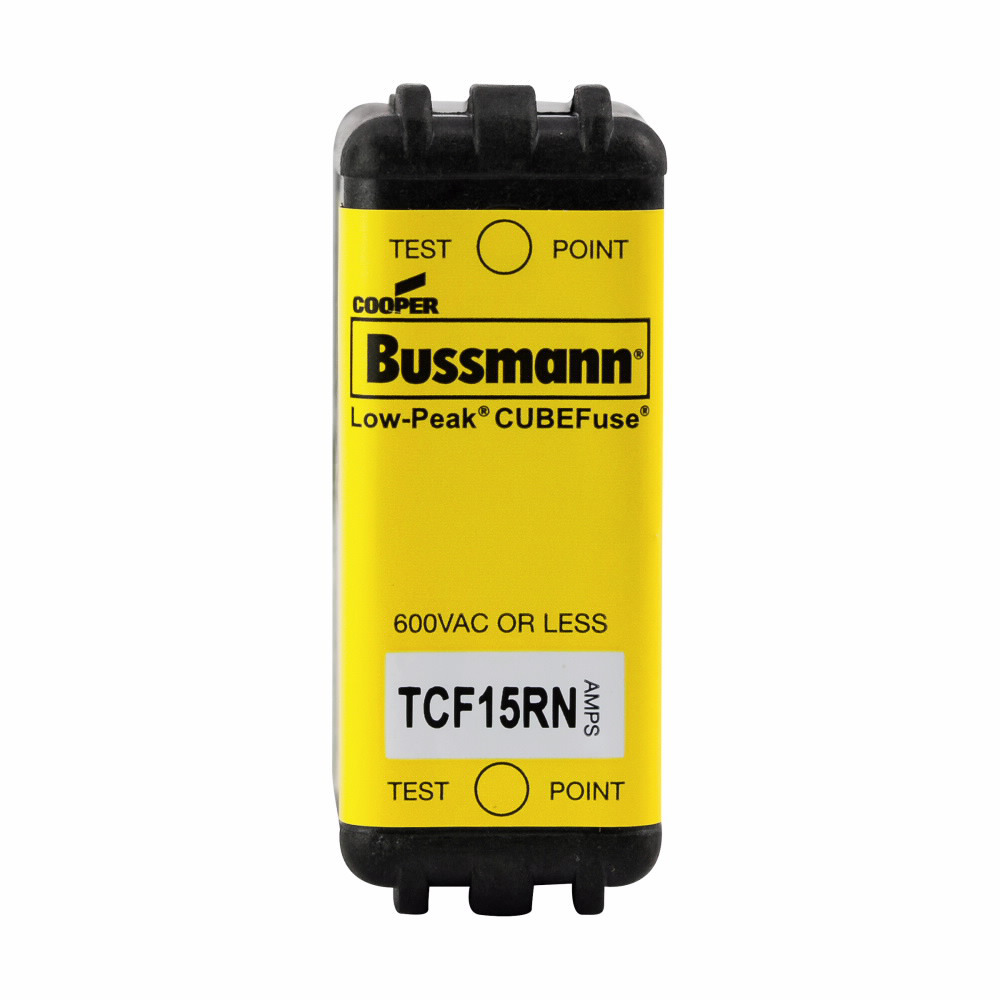

Eaton Bussmann series TCF fuse, 15 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, 35 mm DIN rail,Chassis, 600 V, 300 Vdc
- MFR:
- Eaton Bussmann
- MFR #:
- TCF15RN
- UPC:
- 051712220927
- Item #:
- 548603
Eaton Bussmann series TCF fuse, 15 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, 35 mm DIN rail,Chassis, 600 V, 300 Vdc
- MFR #:
- TCF15RN
- UPC:
- 051712220927
- Item #:
- 548603
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Manuals & Documentation
| Catalog Number | TCF15RN |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 15 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems|Datacenters - Facilities: Power Distribution|Commercial / Institutional Buildings / Structures - Critical Power|Ind Facilities & Factories - Facility: Power Distribution and Control|Stationary Machinery and Equipment Outside Factory - HVAC |
| Connection | Blade end |
| Interrupt Rating | 100 kAIC at 300 Vdc|300 kAIC at 600 Vac |
| Material | Glass filled PES |
| Mounting | Din Rail |
| Response Time | 10 S at 500% |
| Special Features | Finger safe |
| Standard | UL Listed ,CSA Certified,RoHS Compliant,CE Marked |
| UPC | 051712220927 |
| GTIN | 00051712220927 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Voltage Rating | 600 Vac, 300 Vdc |
