Type:NEMA 4X Type: Nonmetallic Enclosure Special Features:Hinged snap latch Type:, flush-aesthetically pleasing and opaque cover design with FIP formed-in-place polyurethane gasket Application:Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less Material:Polycarbonate - thermoplastic Size:A=7.94, B=8.15, C=3.98 plus .87 raised cover, usable depth=4.18 Color:RAL 7035 - Gray Mounting:Nonmetal feet fastened to back side brass insert

Manuals & Documentation
Catalog Number AMP884L
Manufacturer Allied Moulded Products
Brand Allied Moulded Products
Country of Origin United States
Made in USA Yes
Application Industrial control panels intended for general industrial use, operating from a voltage of 600 volts or less
Construction Injection molded
Cubic Capacity 312 cu. In. (.18 cu. Ft.)
Insulation Nonconductive nonmetallic
Material Polycarbonate - thermoplastic
Special Features Hinged snap latch type, flush-aesthetically pleasing and opaque cover design with formed-in-place polyurethane gasket system
Standard UL 508A - Industrial Control Panels
UPC 085339990406
GTIN 00085339990406

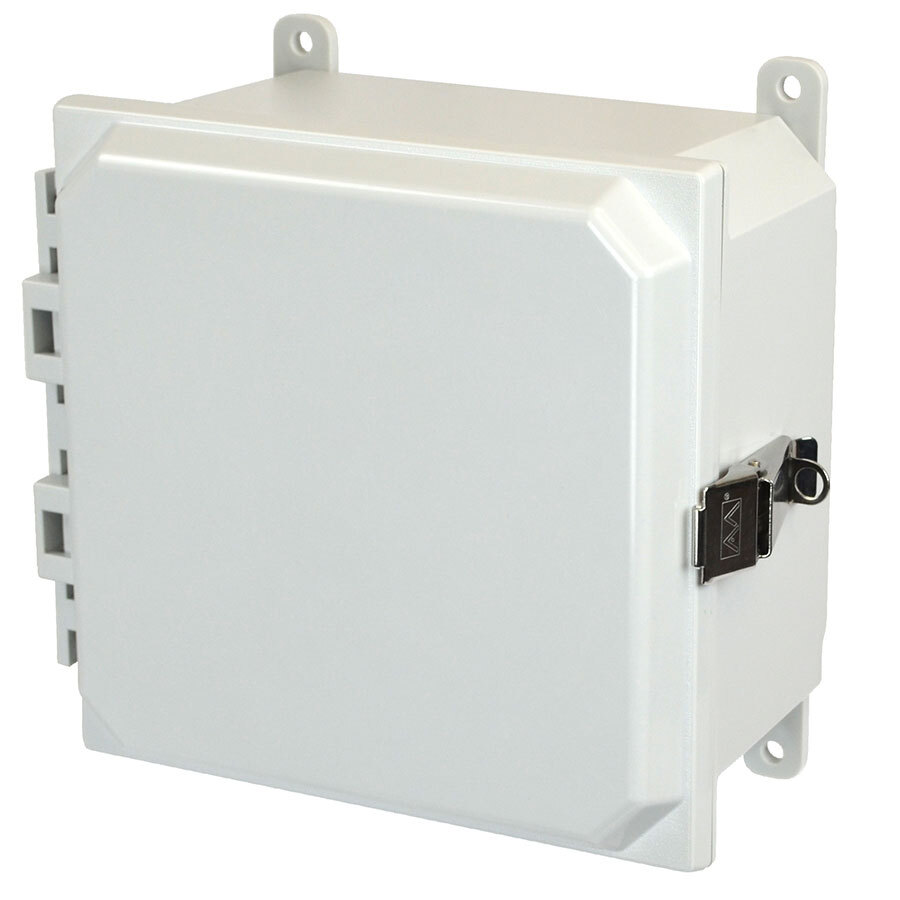

Item Type NEMA 4X Type Nonmetallic Enclosure
Size A=7.94", B=8.16", C=3.94" plus .87" raised cover, usable depth=4.06"
