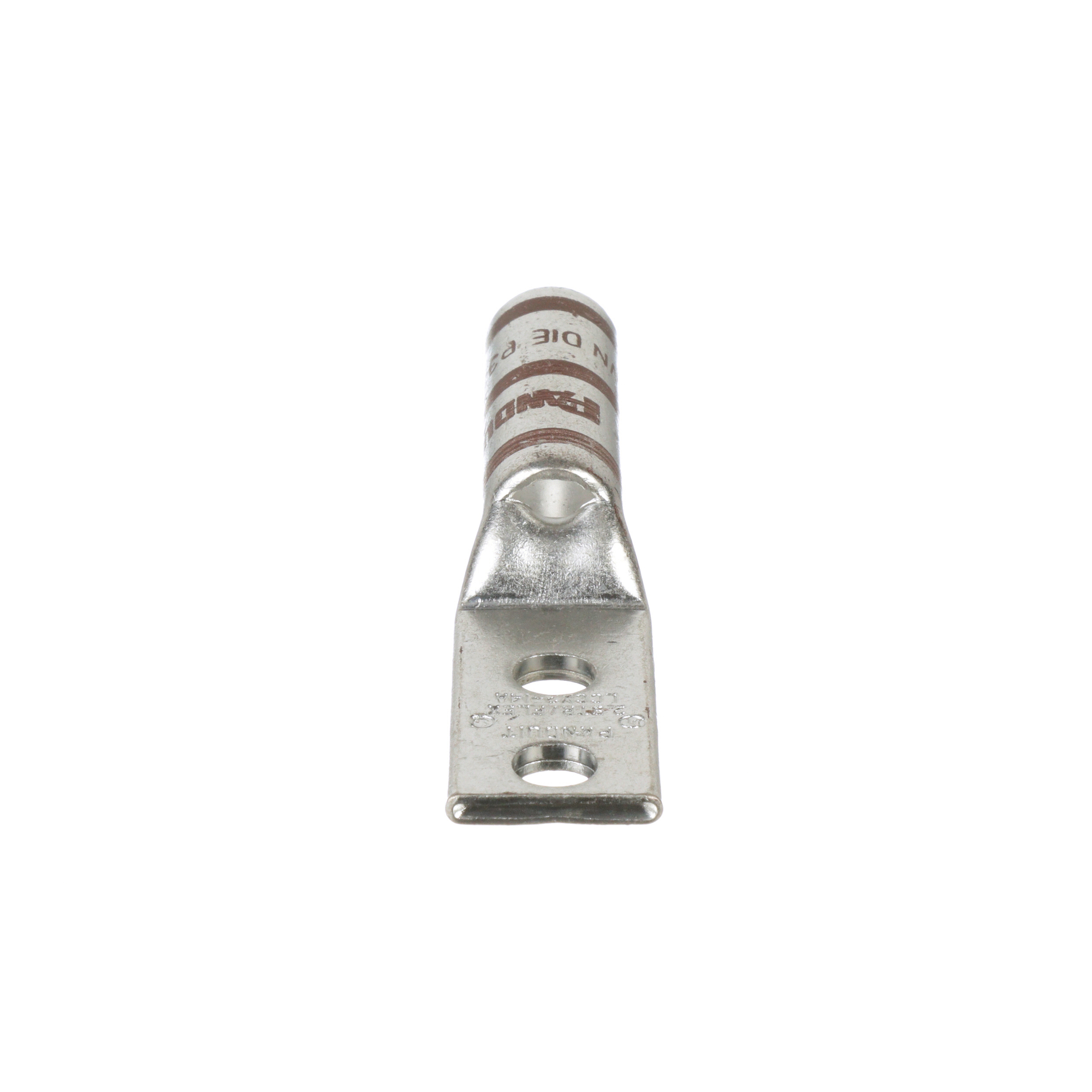

LCCX2-14A-E Pan-Lug 2-Hole Compression Lug Connector With Inspection Window, 2 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P33, 1/4 in Stud, Copper
- MFR:
- Panduit
- MFR #:
- LCCX2-14A-E
- UPC:
- 074983425532
- Item #:
- 545675
LCCX2-14A-E Pan-Lug 2-Hole Compression Lug Connector With Inspection Window, 2 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P33, 1/4 in Stud, Copper
- MFR #:
- LCCX2-14A-E
- UPC:
- 074983425532
- Item #:
- 545675
The LCCX2-14A-E Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Manuals & Documentation
| Catalog Number | LCCX2-14A-E |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Brown |
| Material | Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983425532 |
| GTIN | 00074983425532 |
| Item Type | Compression Lug |
| Size | #2 AWG Class B, C, G, H, I, K, M and DLO |
| Stud Size | 1/4 IN |
