SQUARE D

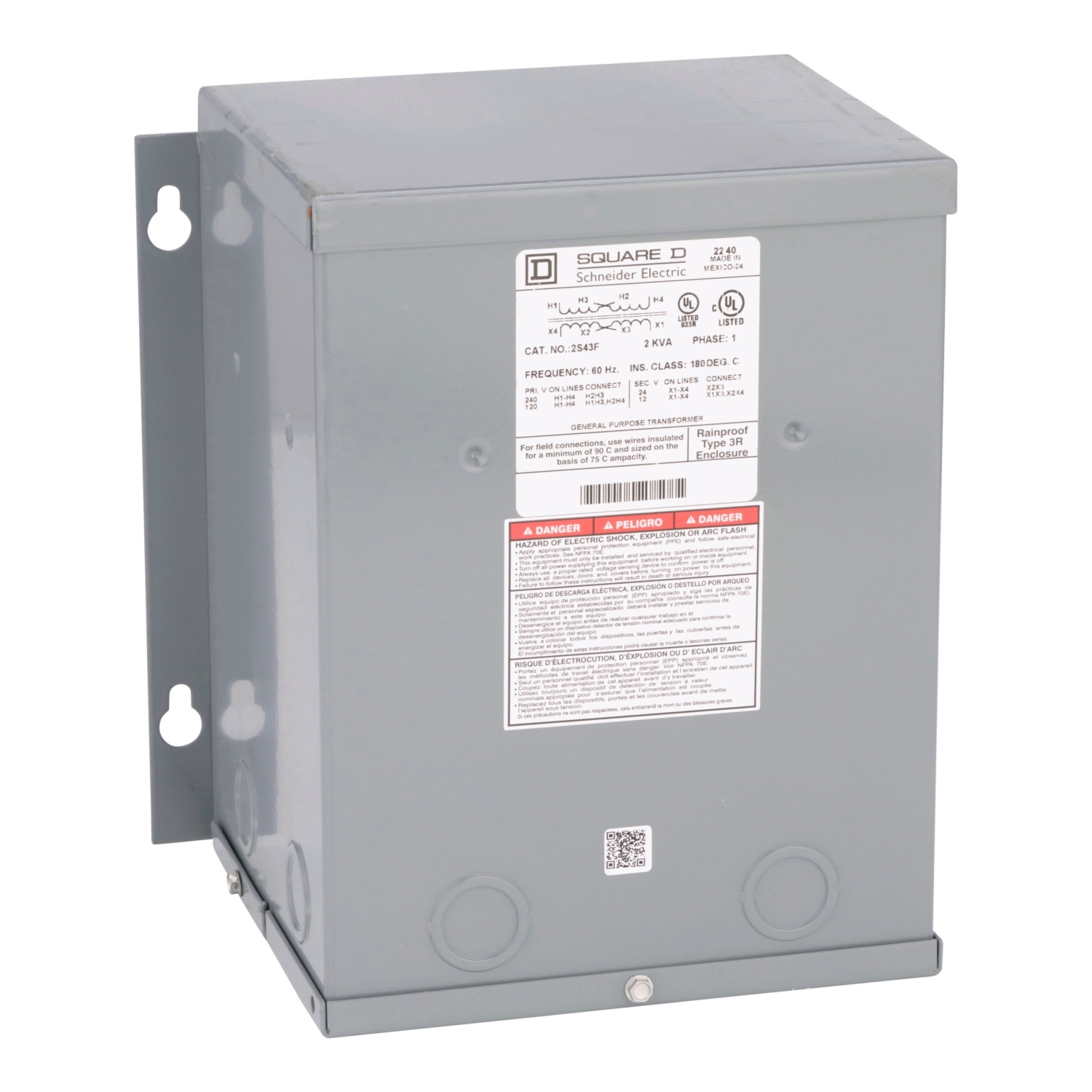

2S43F Dry Buck and Boost Transformer, 120/240 V AC Primary, 12/24 VAC Secondary, 2 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Schneider Electric
MFR #:
2S43F
UPC:
785901876489
Item #:
544904

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 120 x 240 V and a secondary voltage of 12/24 V. This product have a temperature rise of 115 C. Dimensions for this product are 243 mm (H), 220 mm (W), 167 mm(D), and a weight of 39.1 lb(US).

Manuals & Documentation
Catalog Number 2S43F
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Primary Voltage 120 x 240 V
Secondary Voltage 12/24 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455609&lang=en-us
UPC 785901876489
GTIN 00785901876489
Item Type Buck and Boost Transformer
