Telemecanique

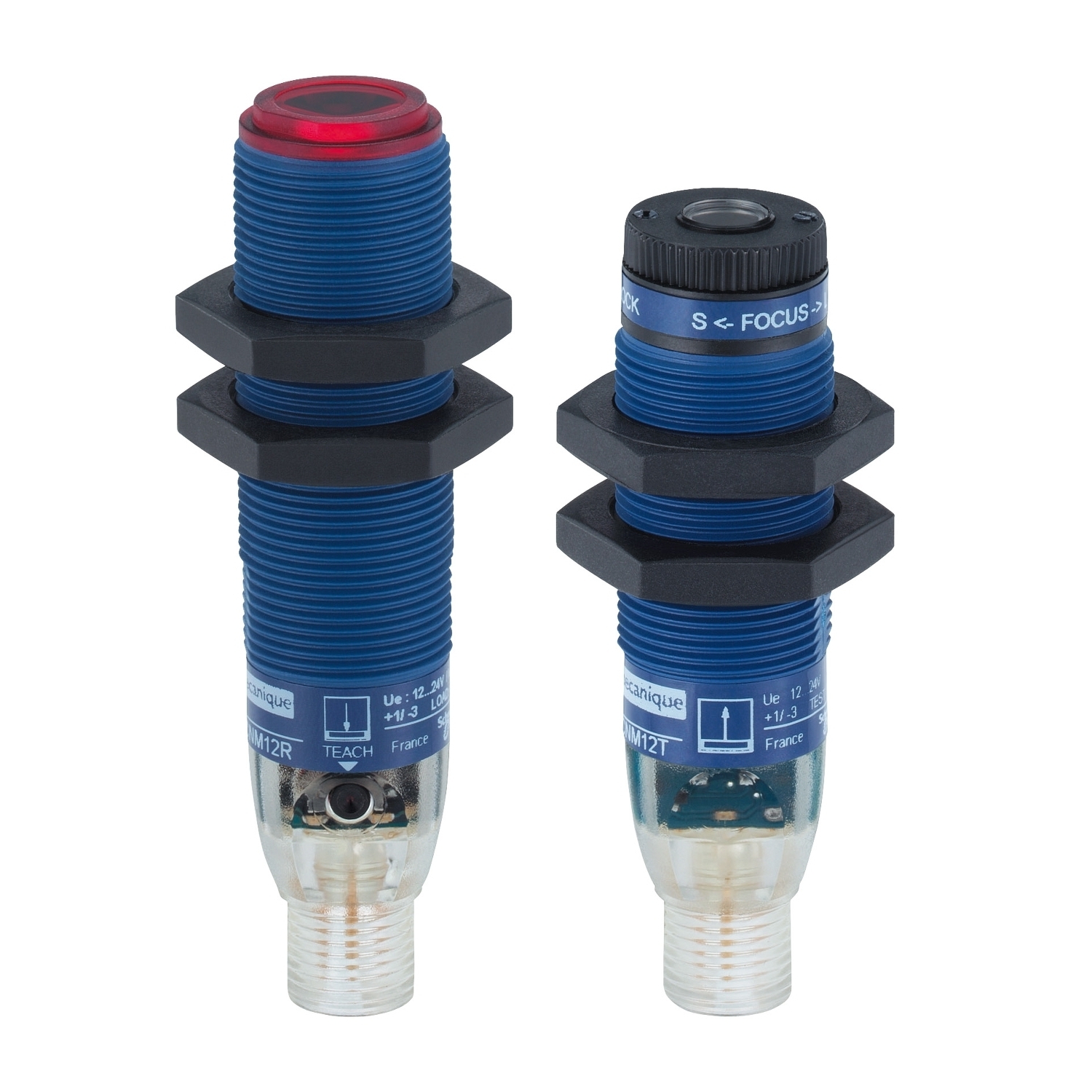

XUBLAPCNM12 XU Series Photo Electric Sensor, Cylindrical Shape, 328.08 ft, Red Laser Sensing Beam, 0.4 ms Response, PNP Output

MFR:
Telemecanique Sensors
MFR #:
XUBLAPCNM12
UPC:
785901636939
Item #:
54490

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in XUB cylindrical M18 design. It has a through beam detection system. It supports nominal sensing distance of 100m with 1 normally opened or 1 normally closed programmable discrete output. It is furnished with M12 male connector for electrical connection. This photoelectric sensor has red laser class 1 670 nm conforming to IEC 825-1 emission. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of 25mA and a switching frequency of 1500Hz. It is an IP67 rated product. The enclosure is made of PBT with PMMA lens. It weighs 0.078kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE, UL and CSA. This sensor has 3 LEDs for supply on and teaching, stability and output state and alignment aid.

Manuals & Documentation
Catalog Number XUBLAPCNM12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application APPLICATION MATERIAL HANDLING
Connection 1 male connector M12
Enclosure IP67 (DOUBLE INSULATION) CONFORMING TO IEC 60529,PBT
Output PNP;1 NO or 1 NC programmable;Discrete;Solid state
Sensing Range 100-100 M,> 98.43 FT (30 M)
Special Features Supply on and teaching 1 LED green);stability 1 LED red);output state and alignment aid 1 LED yellow)
Standard CE-CSA-UL,IP67 IEC 60529 DOUBLE INSULATION)
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=13317172&lang=en-us
UPC 785901636939
GTIN 03389119021005
Item Type Application material handling;Thru beam;Cylindrical M18;Photo-electric sensor
Size CYLINDRICAL M18
Operating Temperature -10-45 A�C
Voltage Rating 12...24 V DC reverse polarity protection
Wattage 1 W
