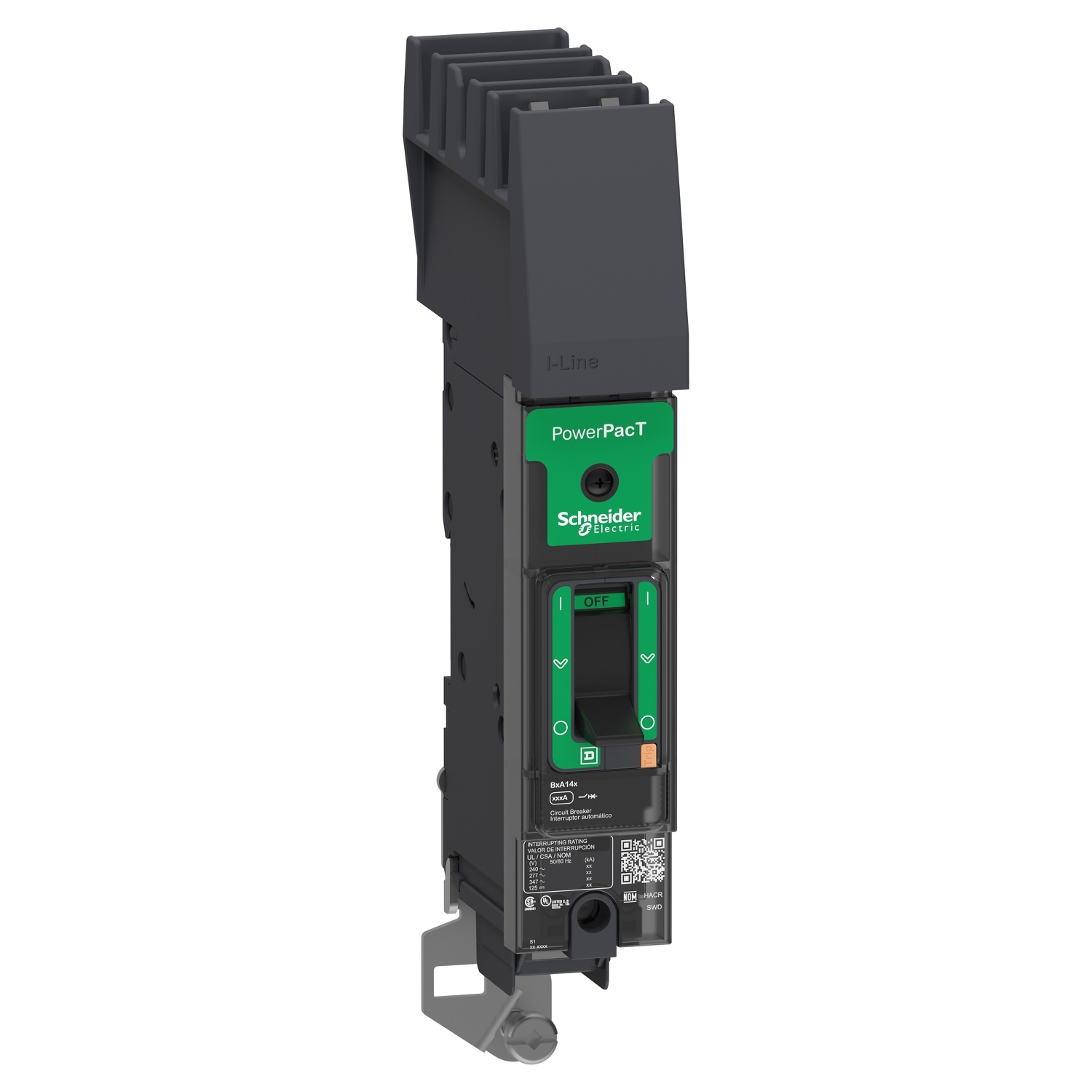

Circuit breaker, PowerPacT B, 15A, 1 pole, 600Y/347VAC, 25kA, I-Line, thermal magnetic, 80%, A
- MFR:
- Schneider Electric
- MFR #:
- BJA160151
- Item #:
- 543656
Circuit breaker, PowerPacT B, 15A, 1 pole, 600Y/347VAC, 25kA, I-Line, thermal magnetic, 80%, A
- MFR #:
- BJA160151
- Item #:
- 543656
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 15A, 1 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an A phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | BJA160151 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590461&lang=en-us |
| GTIN | 03606481154156 |
