SQUARE D

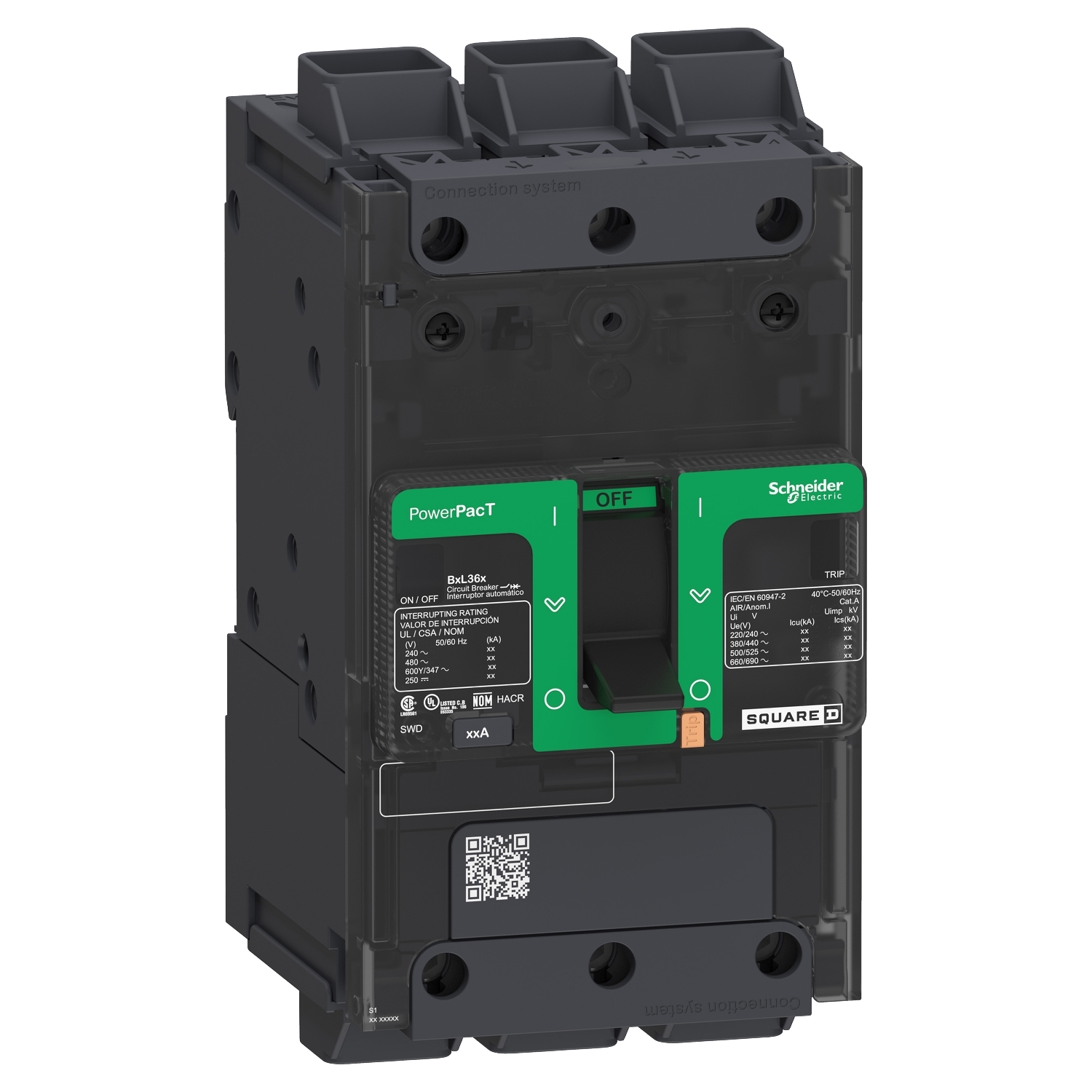

BJL36030 PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 V AC, 30 A, 100 kA at 240 V AC, 65 kA at 480 V AC, 25 kA at 600Y/347 V AC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
BJL36030
Item #:
541804

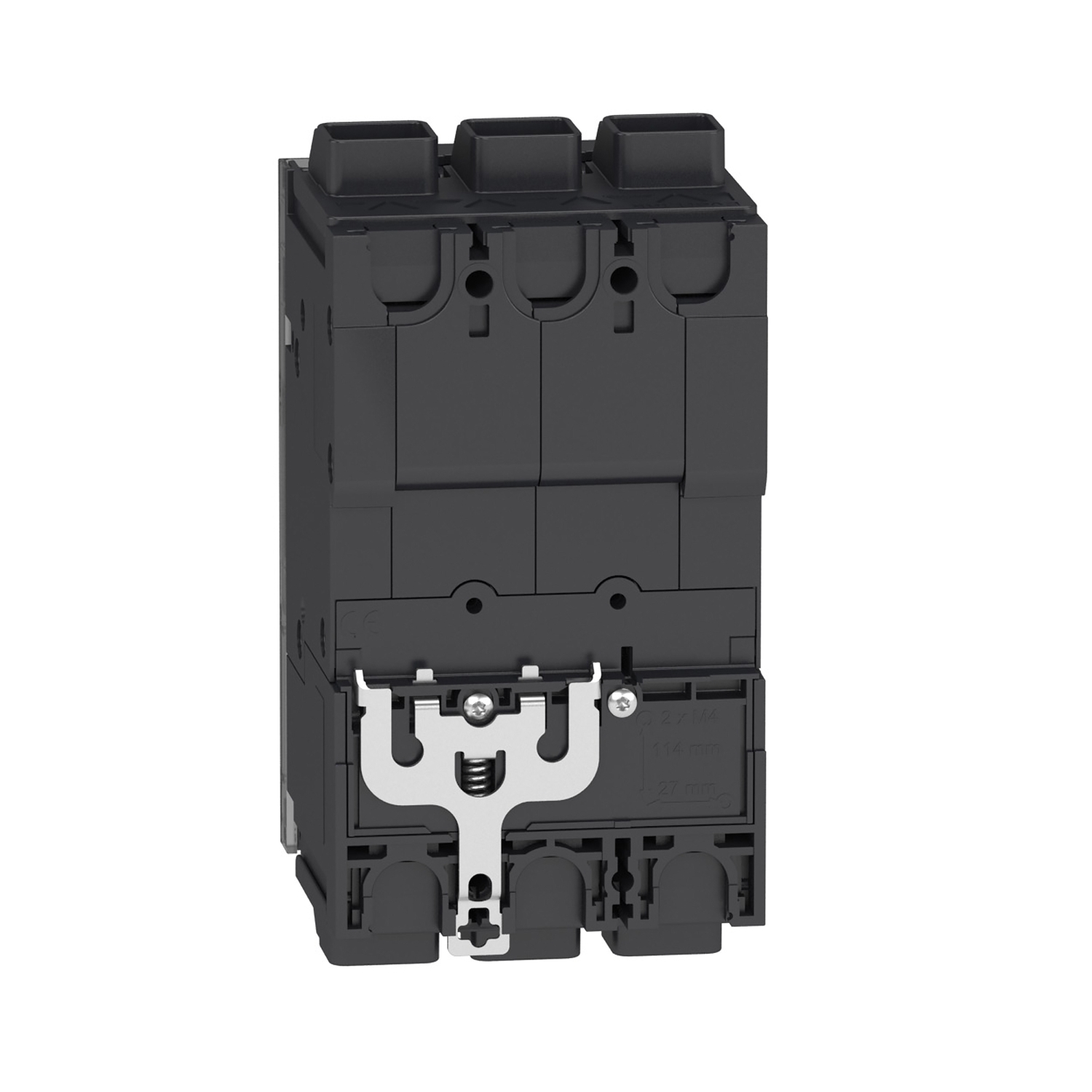

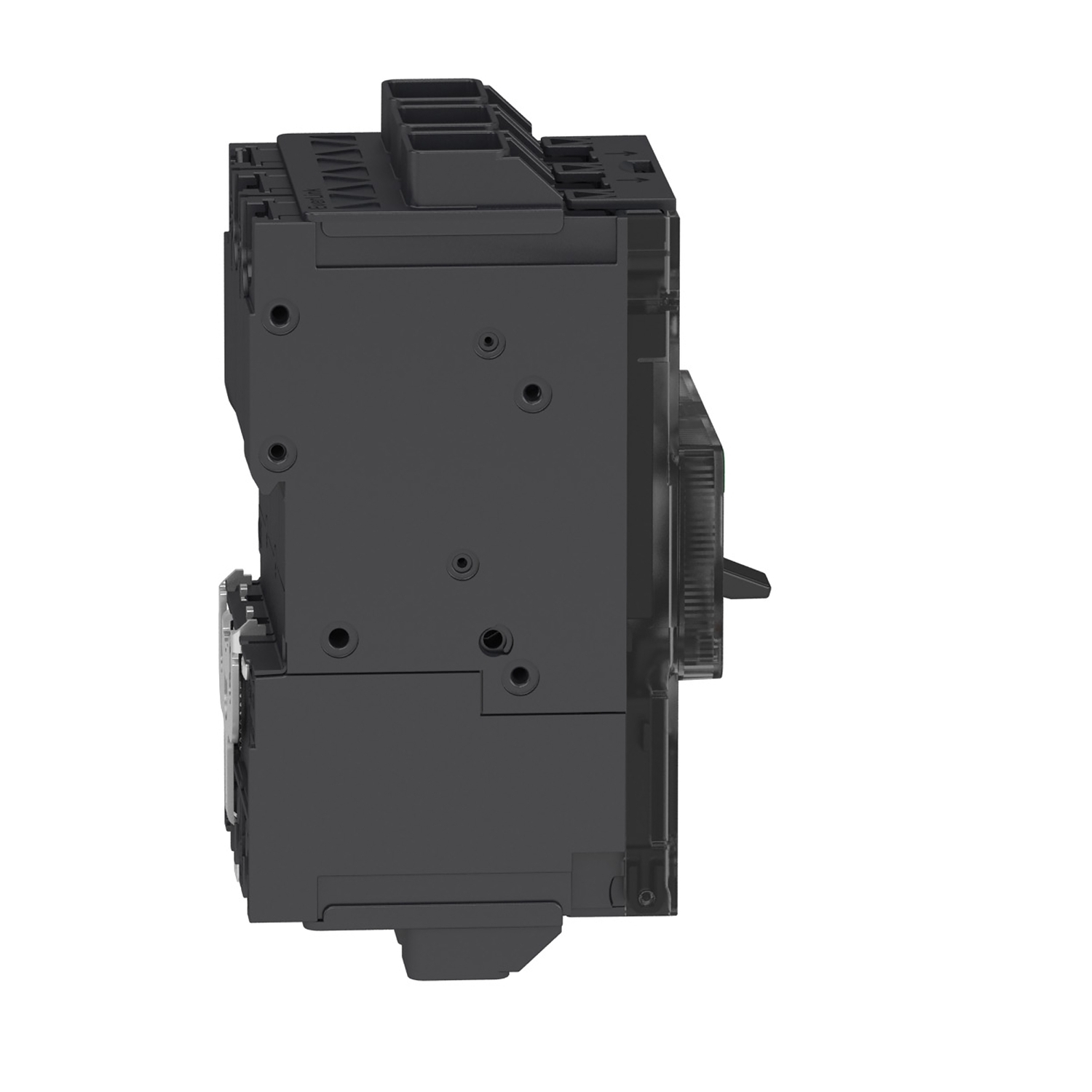

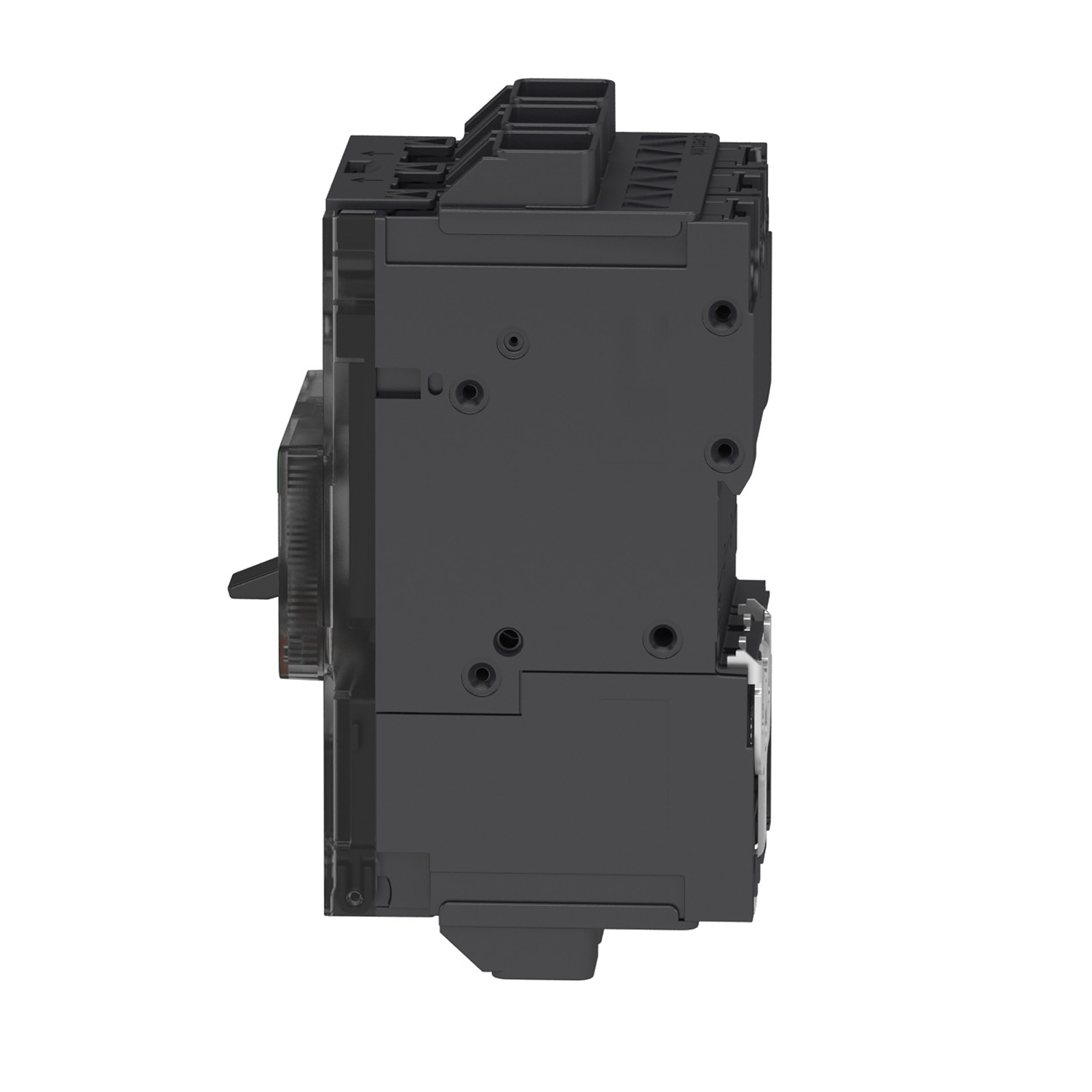

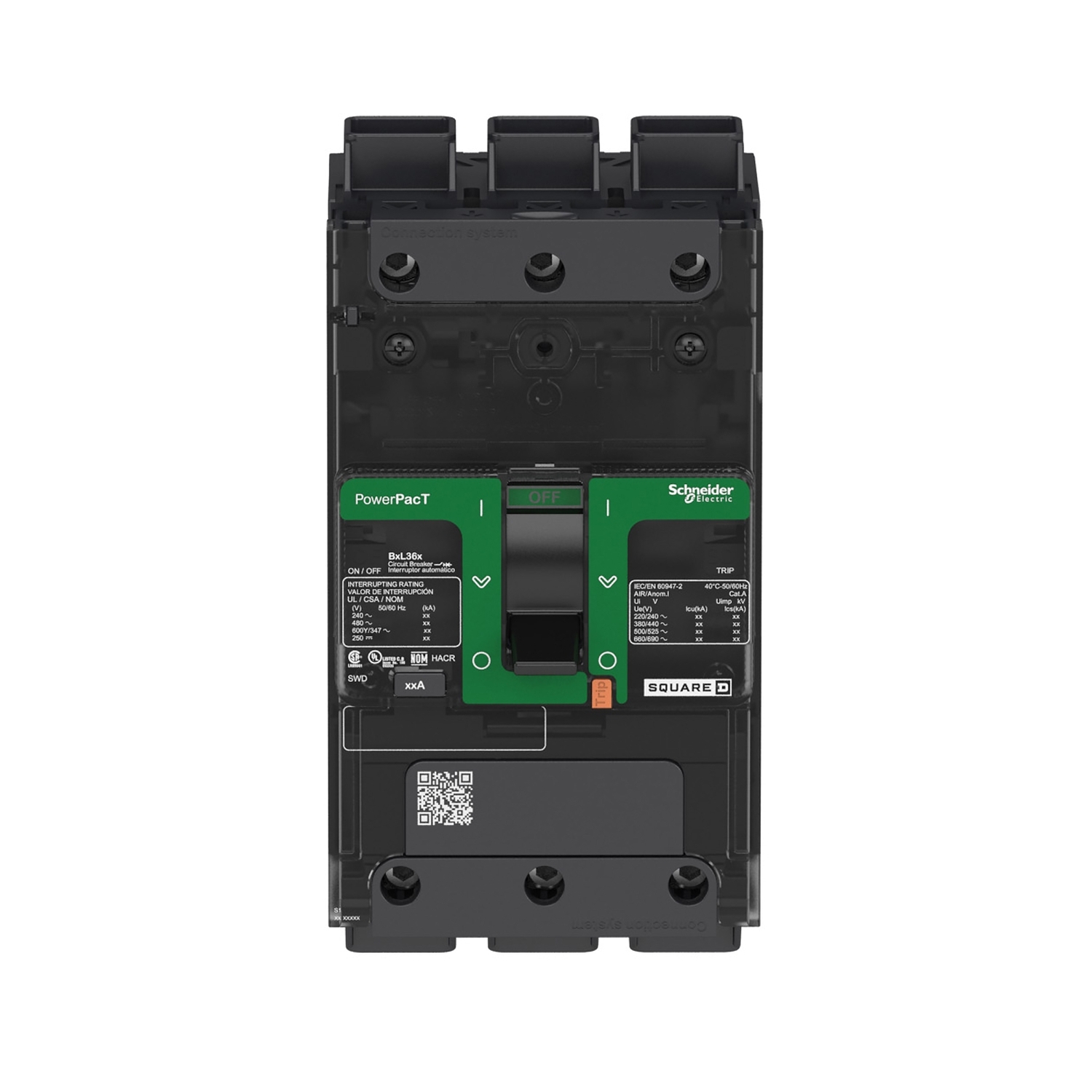

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 30A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number BJL36030
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin United States
Made in USA Yes
Connection Everlink lug, line;Everlink lug, load; AWG 6...AWG 2/0 fine stranded aluminium/copper; AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Control Toggle
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=442590636&lang=en-us
GTIN 03606481186003
