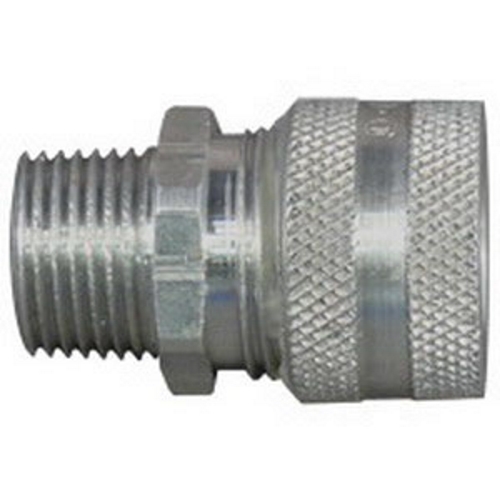

Straight Liquidtight Strain Relief Cord & Cable Connector, 2 inch, 1.531 - 1.78 inch, Aluminum
- MFR:
- Appleton Electric
- MFR #:
- CG-153200
- UPC:
- 781381440370
- Item #:
- 541021
Straight Liquidtight Strain Relief Cord & Cable Connector, 2 inch, 1.531 - 1.78 inch, Aluminum
- MFR #:
- CG-153200
- UPC:
- 781381440370
- Item #:
- 541021
Straight Liquidtight Strain Relief Connector, Size: 2 IN, Conductor Range: 1.531 - 1.78 IN, Material: Aluminum, Nema Rating: NEMA 3R, Connection: Threaded Hub, Dimensions: 3 IN Height, Standard: Class I, Division 2, Class II, Division 1
Manuals & Documentation
| Catalog Number | CG-153200 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| Conductor Range | 1.531 - 1.78 IN |
| Connection | Threaded Hub |
| Material | Aluminum |
| NEMA Rating | 3R |
| Special Features | For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, CSA C22.2 No. 18.3, 065178 |
| UPC | 781381440370 |
| GTIN | 00781381440370 |
| Item Type | Straight Liquidtight Strain Relief Connector |
| Size | 2 |
