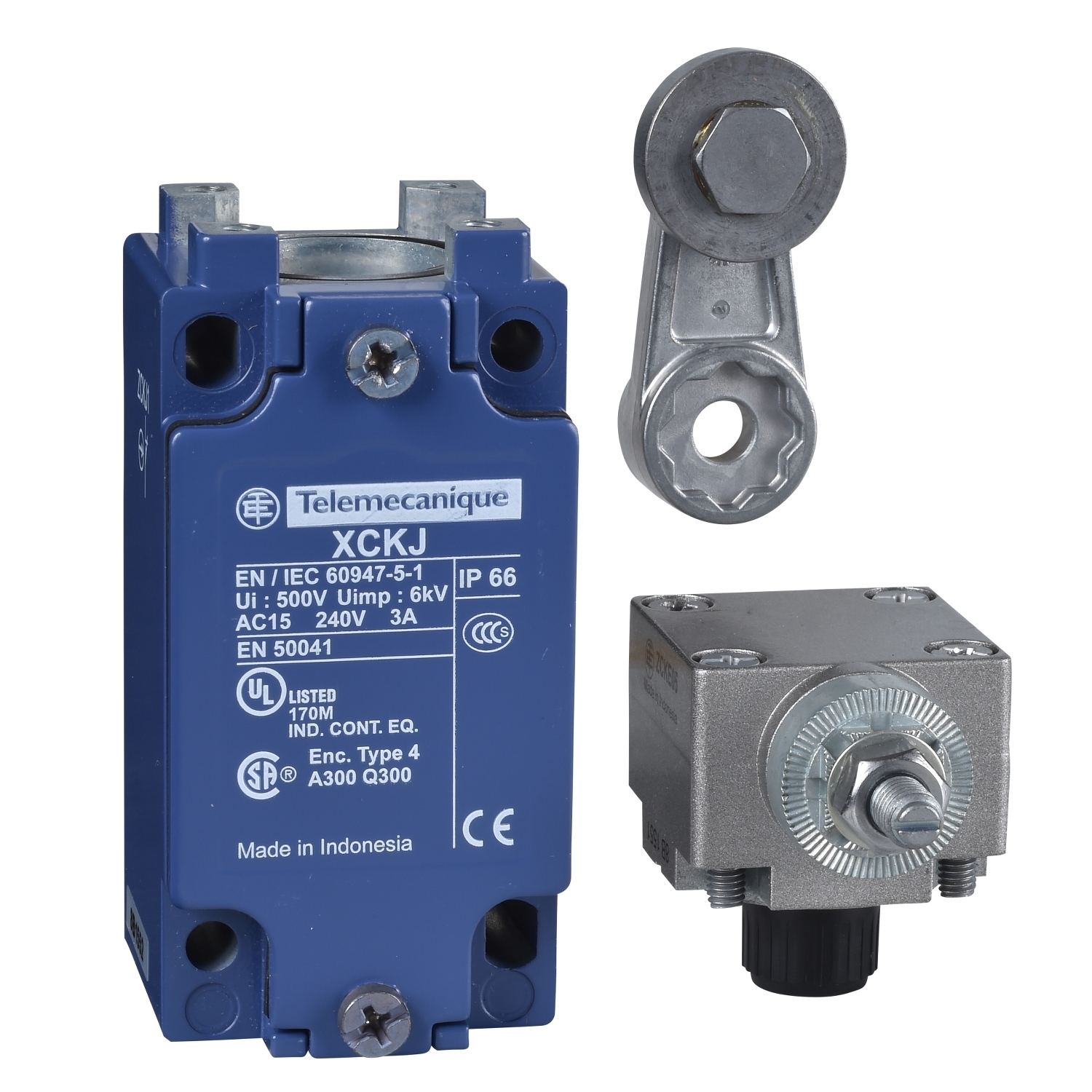

XCKJ10511H29 OsiSense XC Fixed Standard Format Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCKJ10511H29
- UPC:
- 785901626510
- Item #:
- 540958
XCKJ10511H29 OsiSense XC Fixed Standard Format Limit Switch, 240 V AC, 10 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles
- MFR #:
- XCKJ10511H29
- UPC:
- 785901626510
- Item #:
- 540958

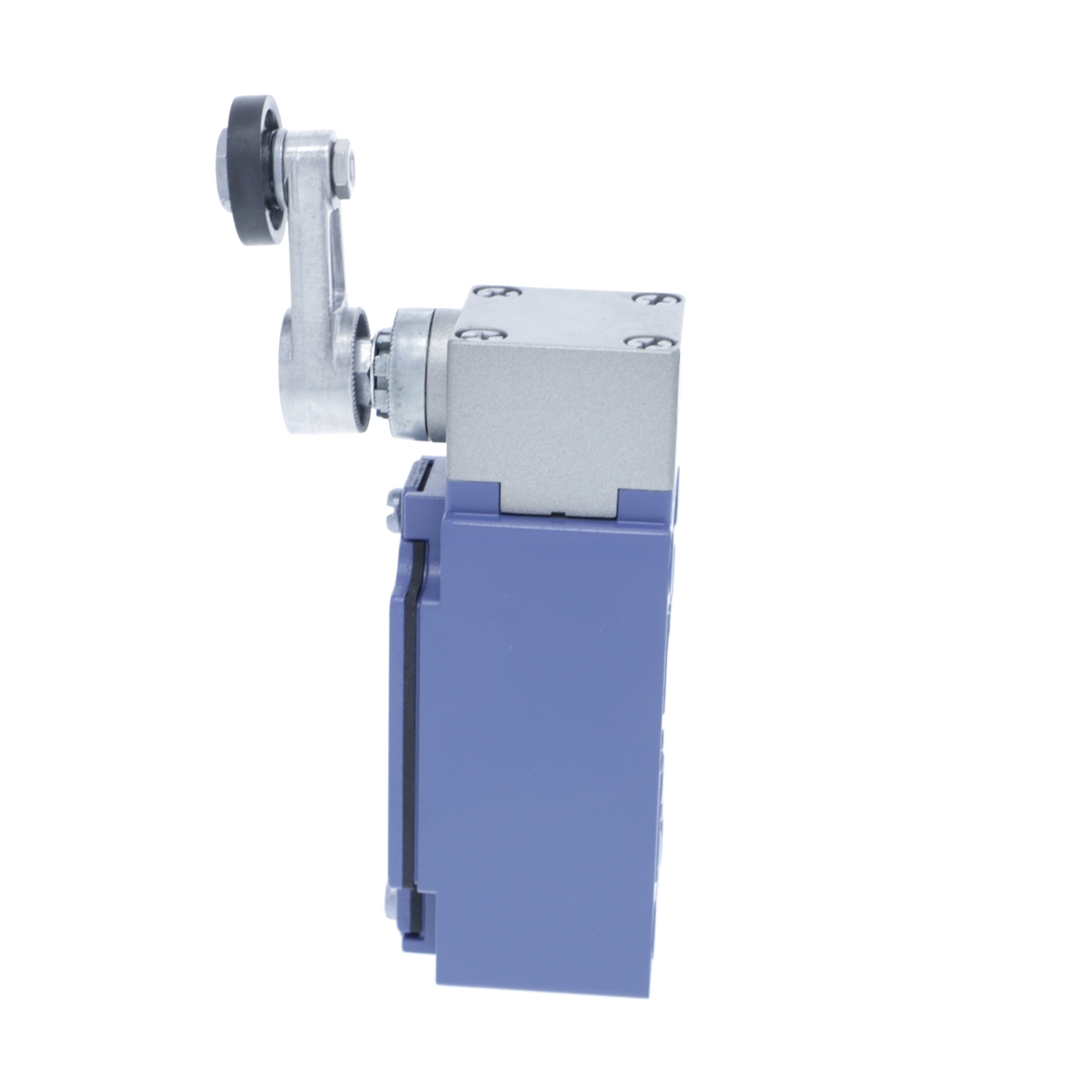

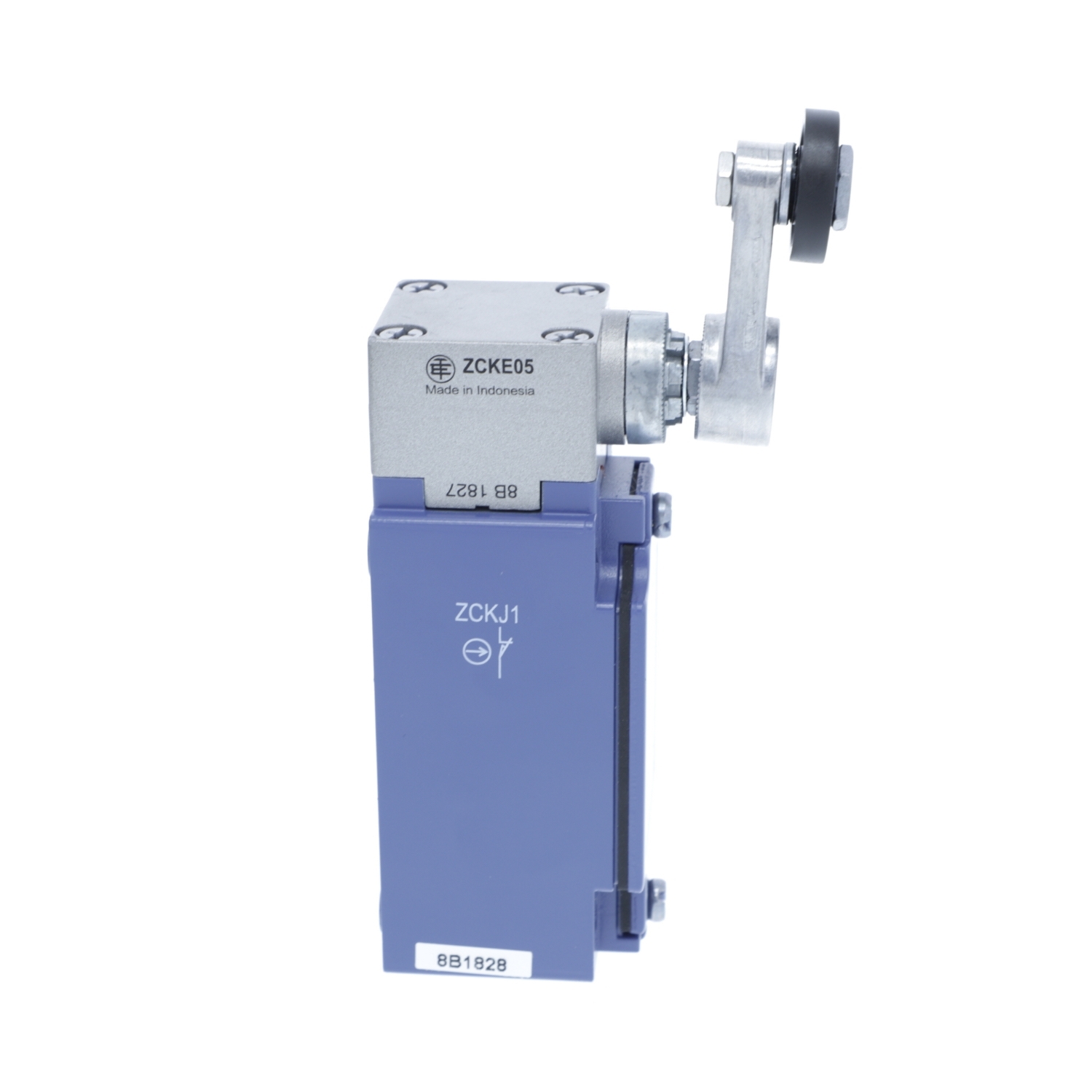

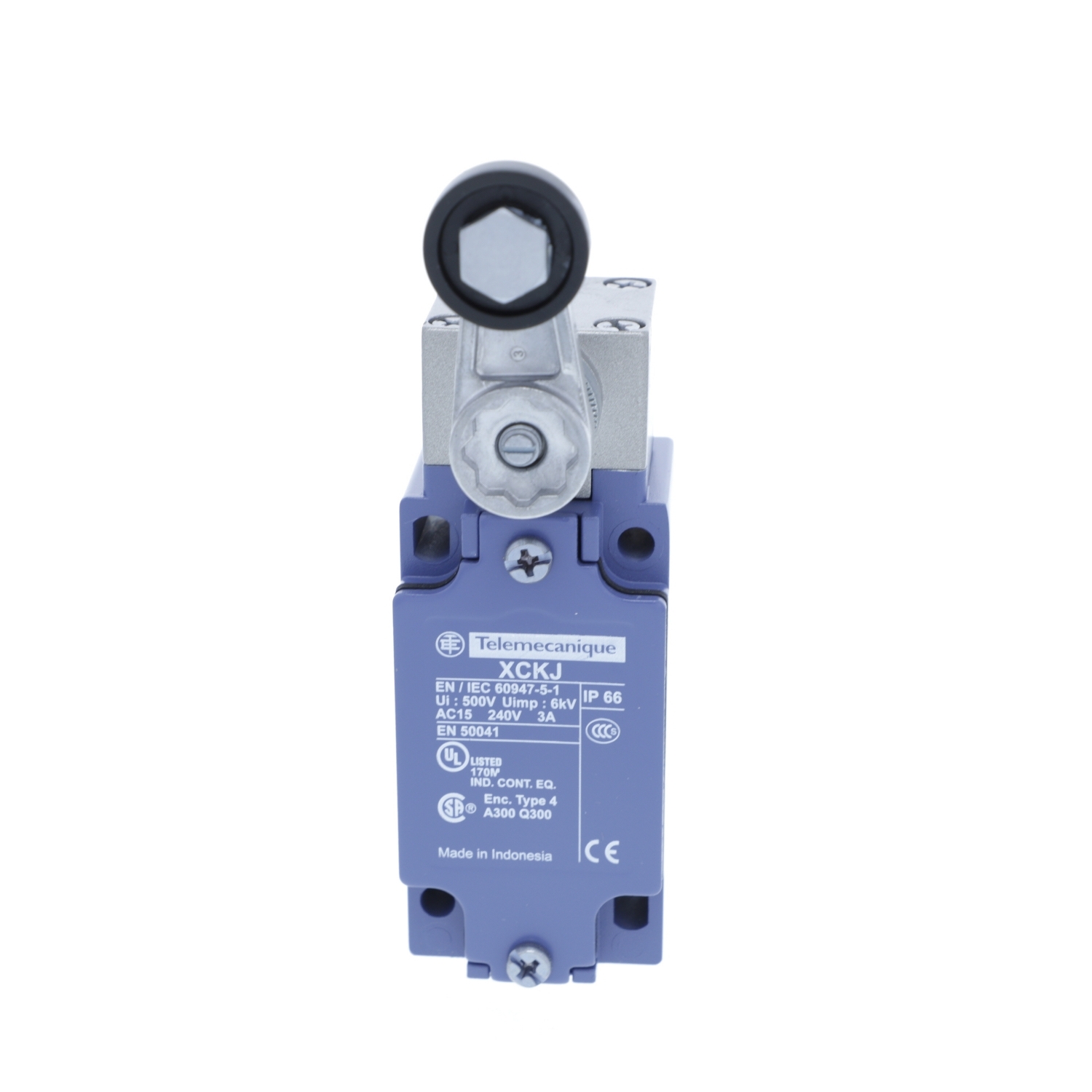

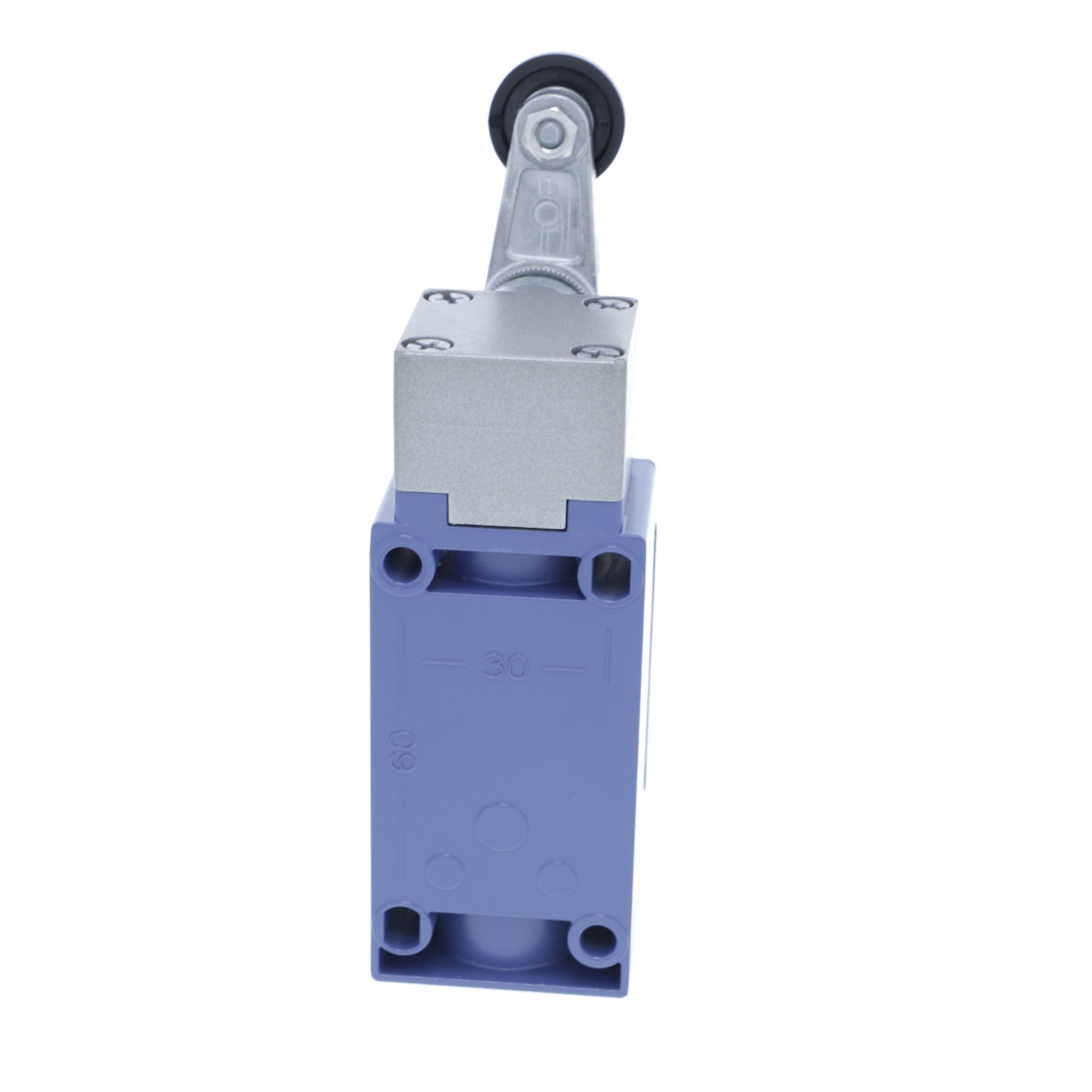

This XCKJ industrial format (EN 50041) limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
Manuals & Documentation
| Catalog Number | XCKJ10511H29 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 1 or 2 programmable direction;Snap action;By 30 Degrees cam |
| Actuator | Spring return roller lever thermoplastic |
| Amperage Rating | 10 |
| Application | INDUSTRIAL |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13, INDUCTIVE, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, INDUCTIVE, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED,METAL |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-UL-CSA,IEC 60947-5-1-EN 60204-1-CSA C22.2 NO 14-CENELEC EN 50041-IEC 60204-1-EN 60947-5-1-UL 508,IK07 EN 50102,IP66 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856098&lang=en-us |
| UPC | 785901626510 |
| GTIN | 03389110928549 |
| Item Type | Limit switch |
| Size | 1.73 |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
