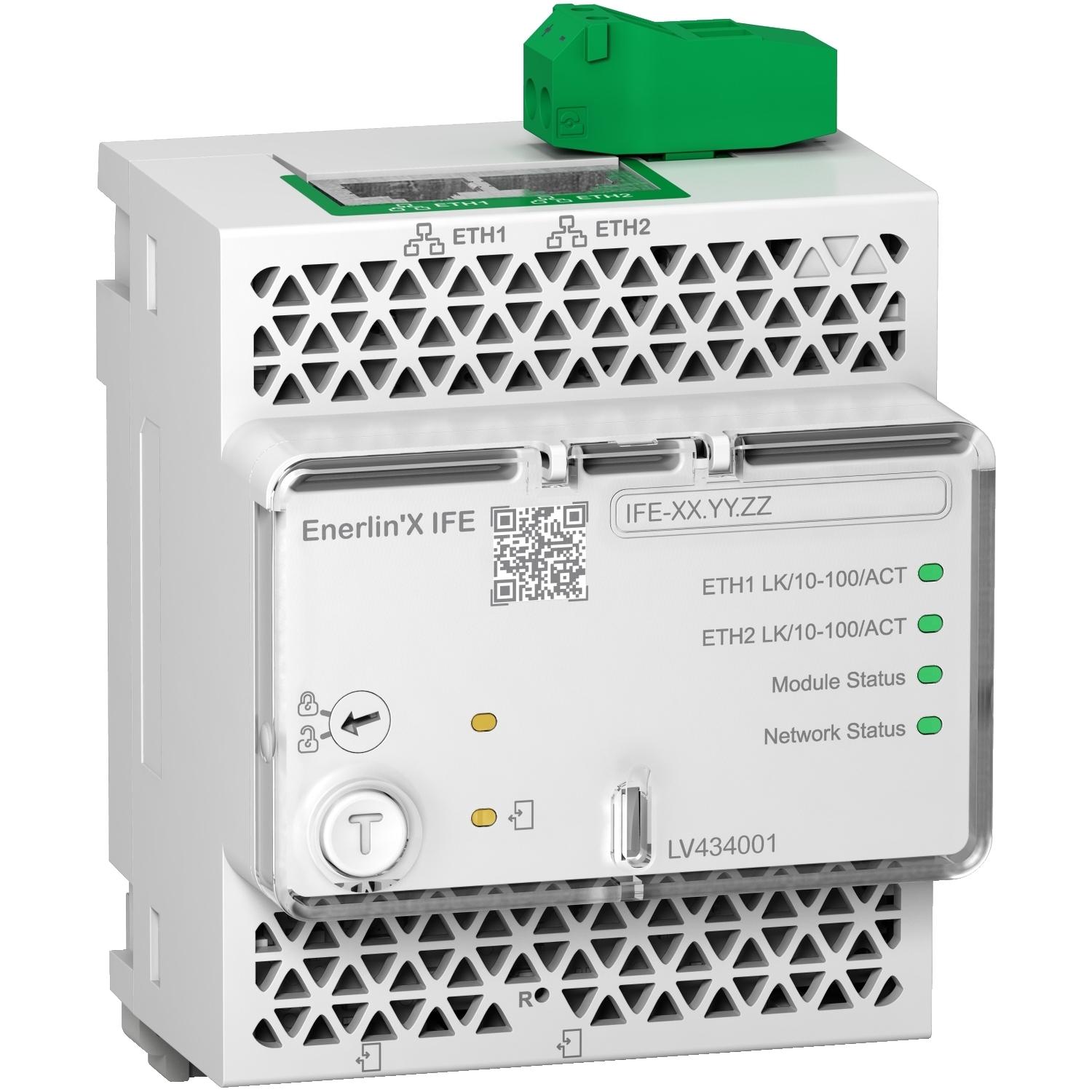

LV434001 EnerlinX IFE Ethernet Interface, 24 V DC, DIN Rail Mount, -20 to 70 deg C Operating
- MFR:
- Schneider Electric
- MFR #:
- LV434001
- Item #:
- 540011
LV434001 EnerlinX IFE Ethernet Interface, 24 V DC, DIN Rail Mount, -20 to 70 deg C Operating
- MFR #:
- LV434001
- Item #:
- 540011
This IFE is an Ethernet interface module, and it is part of EnerlinX communication system. It provides an Ethernet access to a single Masterpact, Compact or PowerPact circuit breaker. The data flow is 10/100 Mbps for a simple daisy chain connection. It is equipped on the top with one 24VDC screw clamp terminal block and 2xRJ45 sockets for Ethernet network connection. It is equipped on the bottom with two RJ45 sockets for ULP internal network connection (Universal Logic Plug). The IFE interface is a DIN rail mounting device and its dimensions are 72mm x 105mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The IFE interface is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The IFE interface firmware can be updated using EcoStruxure Power Commission software.
Manuals & Documentation
| Catalog Number | LV434001 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Mounting | Clip |
| Standard | GOST;cULus;FCC;CE |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458344572&lang=en-us |
| GTIN | 03606481283139 |
| Item Type | Interface module |
