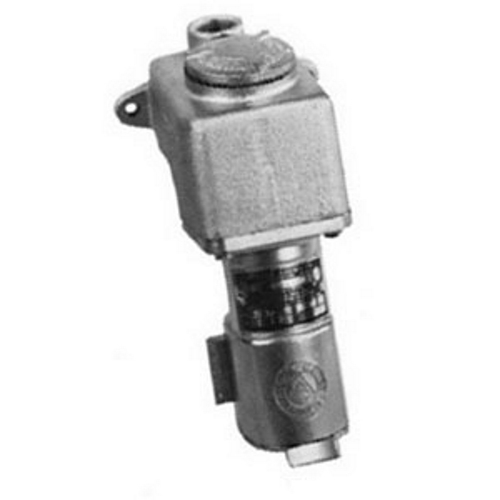

CESD-3034 CESD 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 30 A, 4 Poles, 3 Wires
- MFR:
- Appleton Electric
- MFR #:
- CESD-3034
- UPC:
- 781381188258
- Item #:
- 539350
CESD-3034 CESD 3-Phase Feed Through Grounding Style 2 Explosionproof Receptacle With Mounting Box, 125 to 250 V AC, 30 A, 4 Poles, 3 Wires
- MFR #:
- CESD-3034
- UPC:
- 781381188258
- Item #:
- 539350
Appleton CESD Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 30 AMP, Voltage Rating: 125 - 250 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle And Cover, Malleable Iron Mounting Box, Mounting: Surface Mount With 3/4 IN Feed-Thru Hub, Connection: Pressure Wire Terminal, Motor Horsepower: 3 HP At 125 - 250 VAC, Finish: Ceramic Burnished Receptacle And Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) Mounting Box, Dimensions: 5.13 IN Width X 8.69 IN Height X 6-3/4 IN Depth, Standard: Class I, Division 1 And 2, Groups D, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, UL Listed: E10784, CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1, For CPH Mating Plugs
Manuals & Documentation
| Catalog Number | CESD-3034 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 30 |
| Application | For CPH Mating Plugs |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle And Cover, Malleable Iron Mounting Box |
| Mounting | Surface |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Furnished with vertical feed-through hubs; Explosionproof; Delayed-action safety construction with Slide-Lok design; Factory sealed: no external seals required, arcing is safely confined to receptacle interior; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use; Unique design brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Smooth, rounded integral bushing in each hub protects conductor insulation; Fiber glass reinforced polyester insulating blocks; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps |
| Standard | Class I, Division 1 And 2, Groups D; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686; UL Listed: E10784; CSA Standard: C22. No 30, C22.2 No. 159, C22.2 No 182.1 |
| UPC | 781381188258 |
| GTIN | 00781381188258 |
| Item Type | CESD Series Receptacle With Mounting Box |
| Voltage Rating | 125 - 250 |
