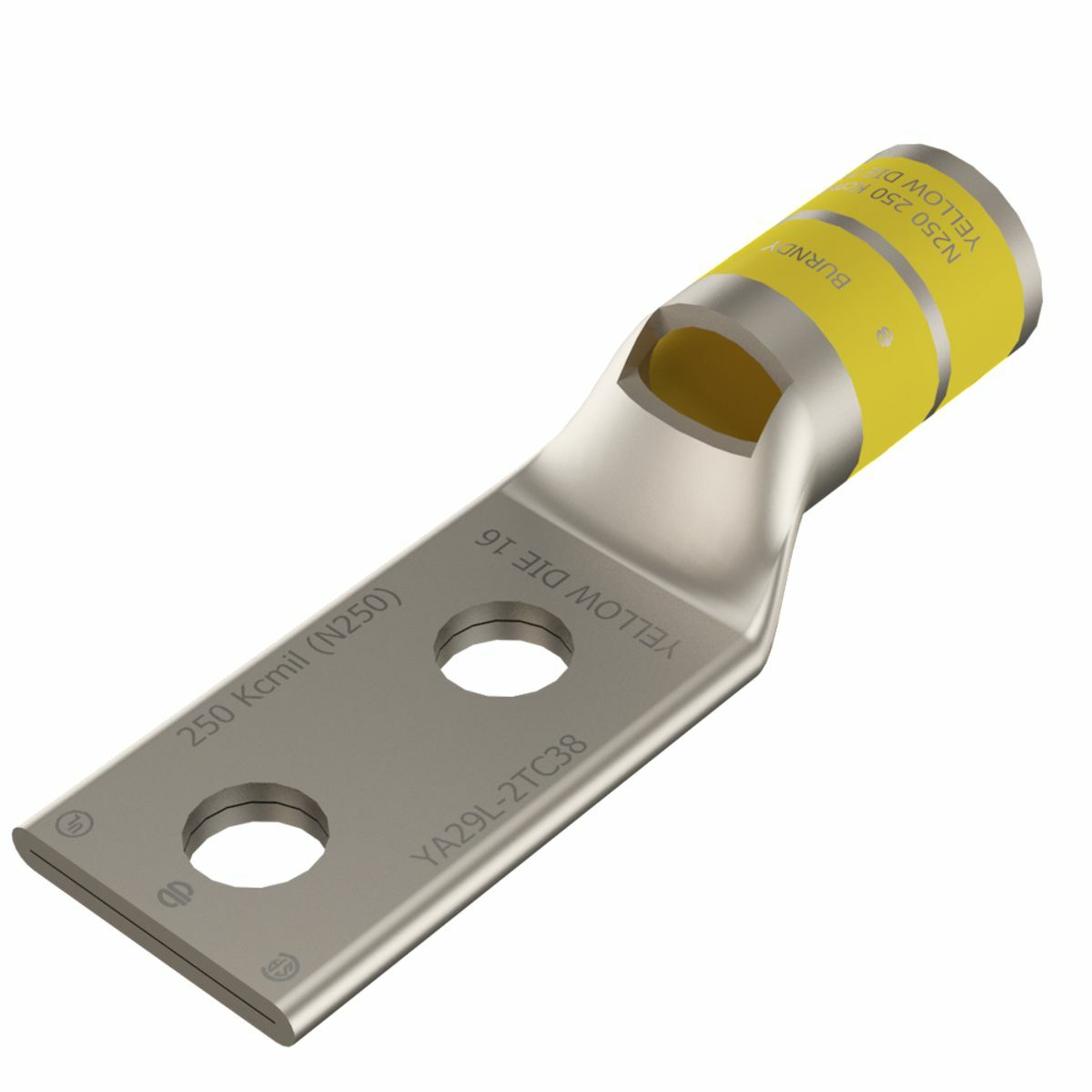

YA292LN YA-2LN 2-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 1/2 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA292LN
- UPC:
- 781810504222
- Item #:
- 53931
YA292LN YA-2LN 2-Hole Compression Lug With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: 16, 1/2 in Stud, Tin Plated Copper
- MFR #:
- YA292LN
- UPC:
- 781810504222
- Item #:
- 53931
Manuals & Documentation
| Catalog Number | YA292LN |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/8 IN, Tongue Angle: Straight, Die Index: 16, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W29VT Die, (2), X29RT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W29VT, W29RT Die, (2), X29RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U29RT Die, (1), Y46 Tool, U29RT Die With PUADP-1 Adapter, (1), Color Code: Yellow, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (1), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| UPC | 781810504222 |
| GTIN | 00781810504222 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | CSWD-250-12-134 |
