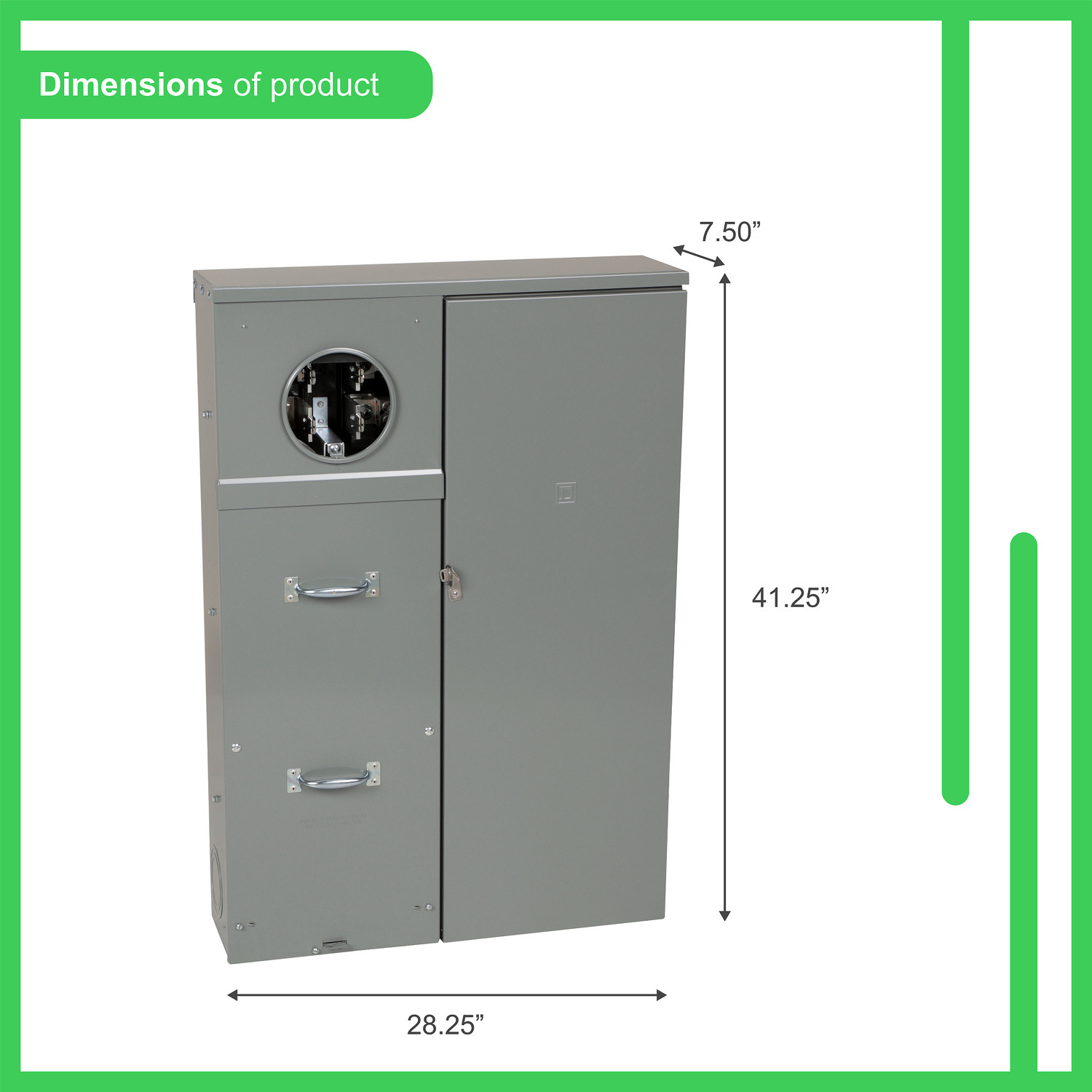

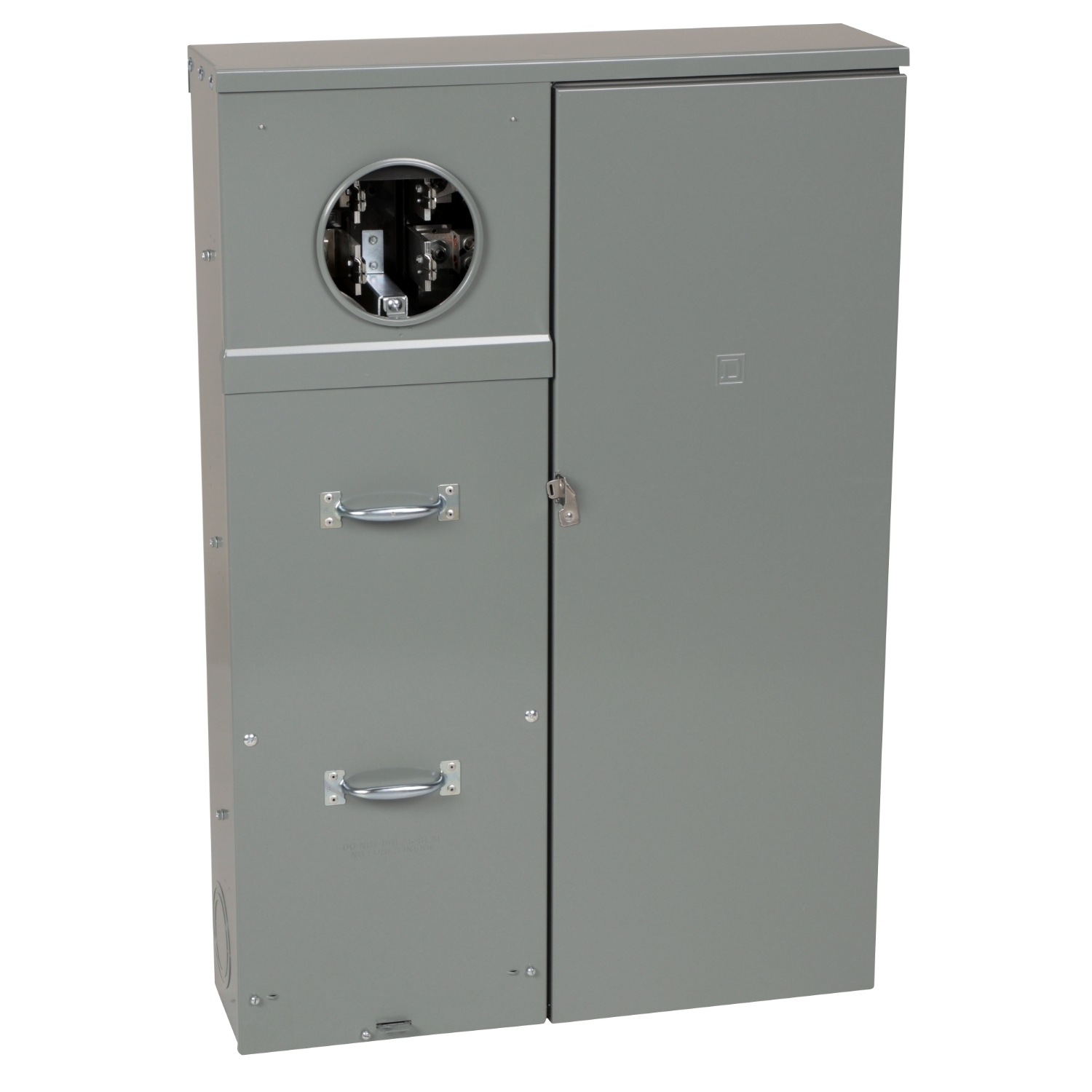

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringed meter socket with a Class 320 Manual bypass. The socket has 4 jaws. This unit can be feed from an underground service. The service disconnect has a QDL22200 with a maximum rating of 200 A. Device has a 25 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 41.25 inches tall, 28.25 inches wide and 7.50 inches deep. The line side has two studs. The service ground lug will accept 4 AWG to 250 kcmil copper or aluminum wire. This Homeline All In One combination service entrance unit is UL Listed.
