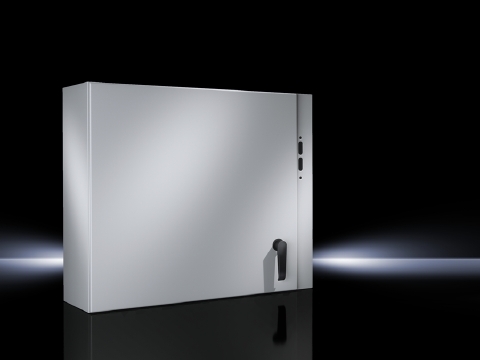

8018981 WM Series Compact Disconnect Enclosure, 975 mm W x 400 mm D, NEMA 1/4/12/3R/IP66, Carbon Steel

MFR:
Rittal
MFR #:
8018981
UPC:
639889857582
Item #:
535241

Compact enclosures WM, for isolator door locking, material: Door: Sheet steel, 2.0 mm, all-round foamed-in PU seal, Enclosure: Sheet steel, Mounting plate: Sheet steel, zinc-plated, surface: dipcoat-primed and powder-coated, textured paint, color: RAL 7035, supply includes: Enclosure with door(s), L/h door hinge, Mounting plate, Rear wall mounting holes, Gland door with universal cut-out for disconnectable circuit, description: These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.

Features

  • Dimension: 38 Inch Width x 16 Inch Depth
  • One-piece enclosure body
  • 3-point latching L-handle
  • Foamed-in-place polyurethane gasket
Catalog Number 8018981
Manufacturer Rittal
Brand Rittal Corp
Country of Origin United States
Made in USA Yes
Application Industrial
Color RAL 7035
Construction Multi-Fold Single Piece Body Construction
Insulation Foamed-in PU Seal
Material Stainless Steel
Mounting Wall
NEMA Rating 4
Special Features Features: NEMA Protection Through a Secure Locking System, Stylish, Modern Design
Standard UL Listed, cUL Listed
RoHS Indicator Yes
UPC 639889857582
GTIN 00639889857582
Item Type Compact Enclosure
Length 48.0000
Length UOM Inch
Width 32.0000
Width UOM Inch
Height 93.0000
Height UOM Inch
Weight 308.642
Weight UOM Pounds
Size 1500 (H) x 975 (W) x 400 (D)
