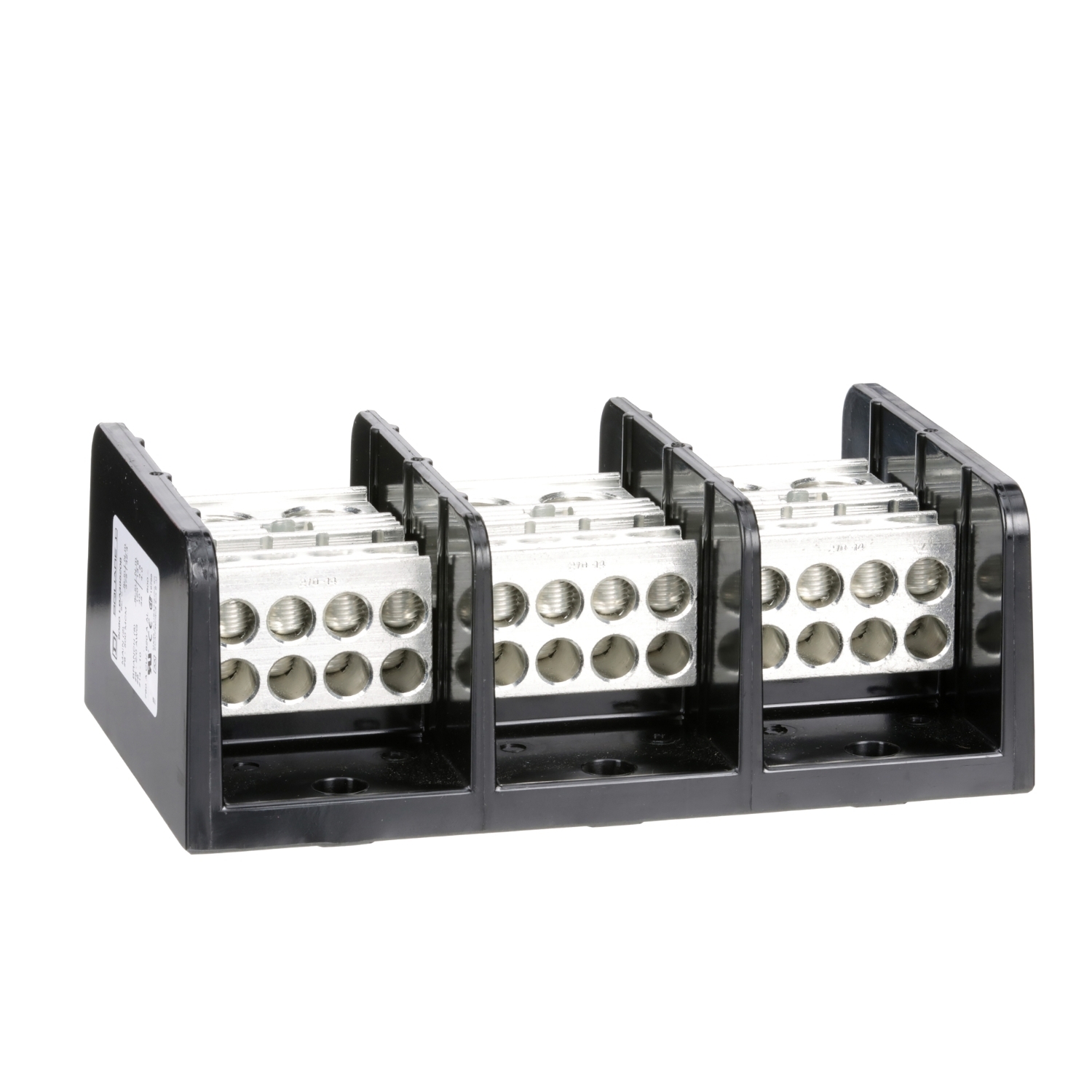

9080LBA365208 TeSys Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 620/760 A, 3 Poles, (2) 4 AWG to 500 kcmil/(8) 14 to 2/0 AWG Wire, Phenolic
- MFR:
- Schneider Electric
- MFR #:
- 9080LBA365208
- UPC:
- 785901097563
- Item #:
- 5351
9080LBA365208 TeSys Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 620/760 A, 3 Poles, (2) 4 AWG to 500 kcmil/(8) 14 to 2/0 AWG Wire, Phenolic
- MFR #:
- 9080LBA365208
- UPC:
- 785901097563
- Item #:
- 5351

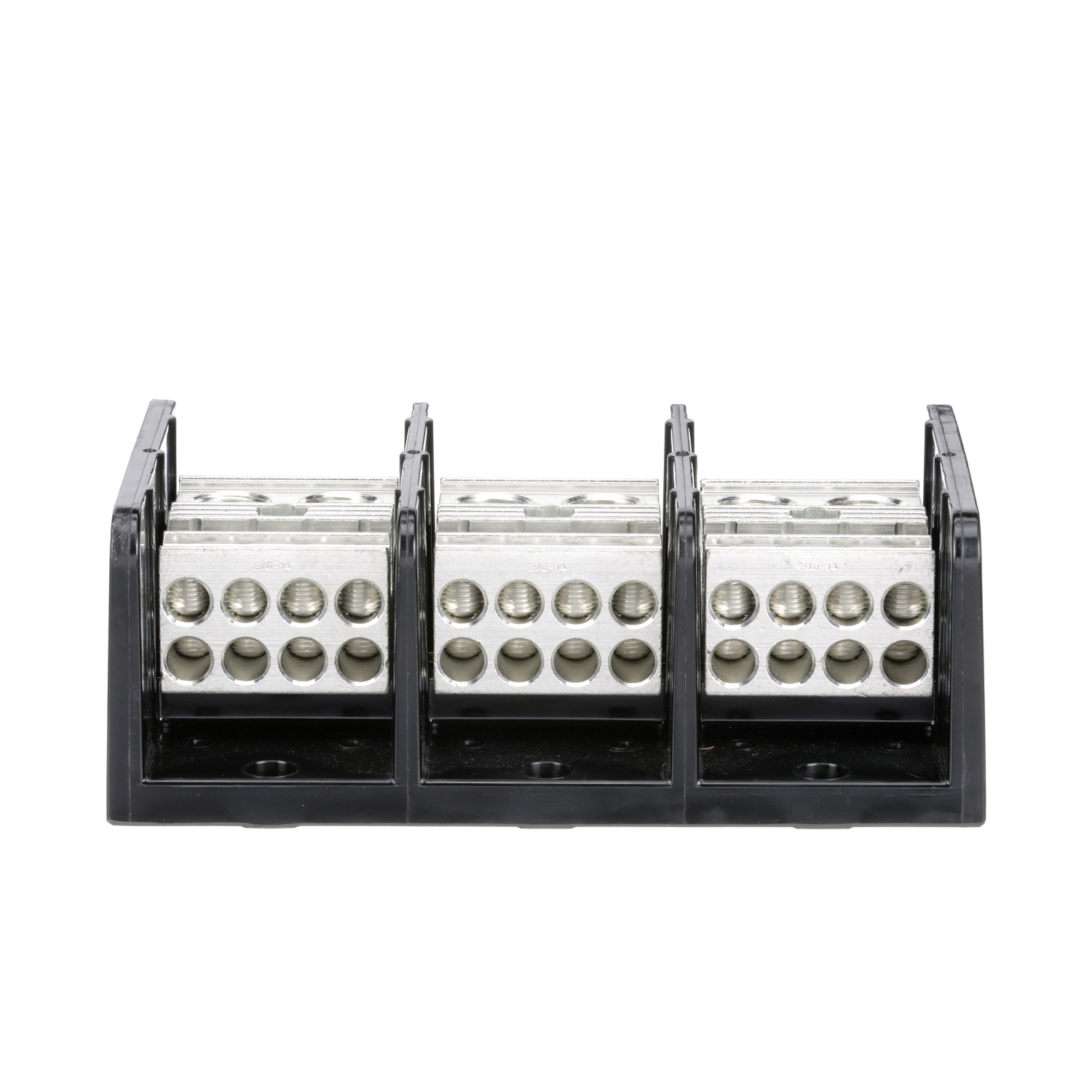

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9080LBA365208 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Tin plated aluminium lugs;Load lug 40 lbf.in AWG 8 copper or aluminium;load lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;load lug 35 lbf.in AWG 14...AWG 10 copper or aluminium;line lug 375 lbf.in AWG 4...500 kcmil copper or aluminium |
| Material | Phenolic: block |
| Mounting | Surface |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373009&lang=en-us |
| UPC | 785901097563 |
| GTIN | 00785901097563 |
| Item Type | Power Distribution Block;9080LB53 |
| Width | 8.54 |
| Width UOM | Inch |
| Height | 5.5 |
| Height UOM | Inch |
| Depth | 3.13 IN |
