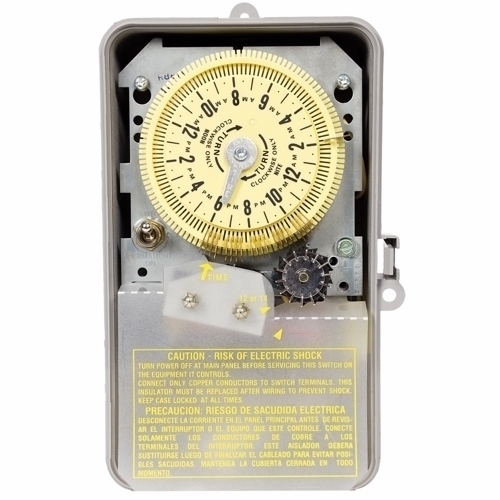

T8805P101C T8800 Mechanical Time Switch With 14-Days Skipper, 12 min to 20 hr, 45 min, 14 days Setting, 120 V AC, 0.5 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- T8805P101C
- UPC:
- 078275700758
- Item #:
- 53433
T8805P101C T8800 Mechanical Time Switch With 14-Days Skipper, 12 min to 20 hr, 45 min, 14 days Setting, 120 V AC, 0.5 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- T8805P101C
- UPC:
- 078275700758
- Item #:
- 53433
These irrigation timers are designed to permit one to 44 "ON" operations every 24 hours and provide watering increments down to 12 minutes or up to 20 hours and45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.
Manuals & Documentation
| Catalog Number | T8805P101C |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | SPST |
| Amperage Rating | 15 |
| Application | Sprinkler/Irrigation Control |
| Connection | Screw Terminal |
| Contact Configuration | 1 NO |
| Enclosure | NEMA 3R Plastic |
| Mounting | Bracket Mount |
| Number of Poles | 1 |
| Special Features | Features: On/Off Automatic Switch Enables Shutdown During Rainy Days and Extended Watering During Dry Periods Without Disturbing the Cycle Set on Dial |
| Standard | cCSAus Certified |
| UPC | 078275700758 |
| GTIN | 00078275700758 |
| Item Type | Sprinkler and Irrigation Electromechanical |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Timing Range | 12 MIN - 20 HR and 45 MIN/14 DAYS |
| Voltage Rating | 120 |
