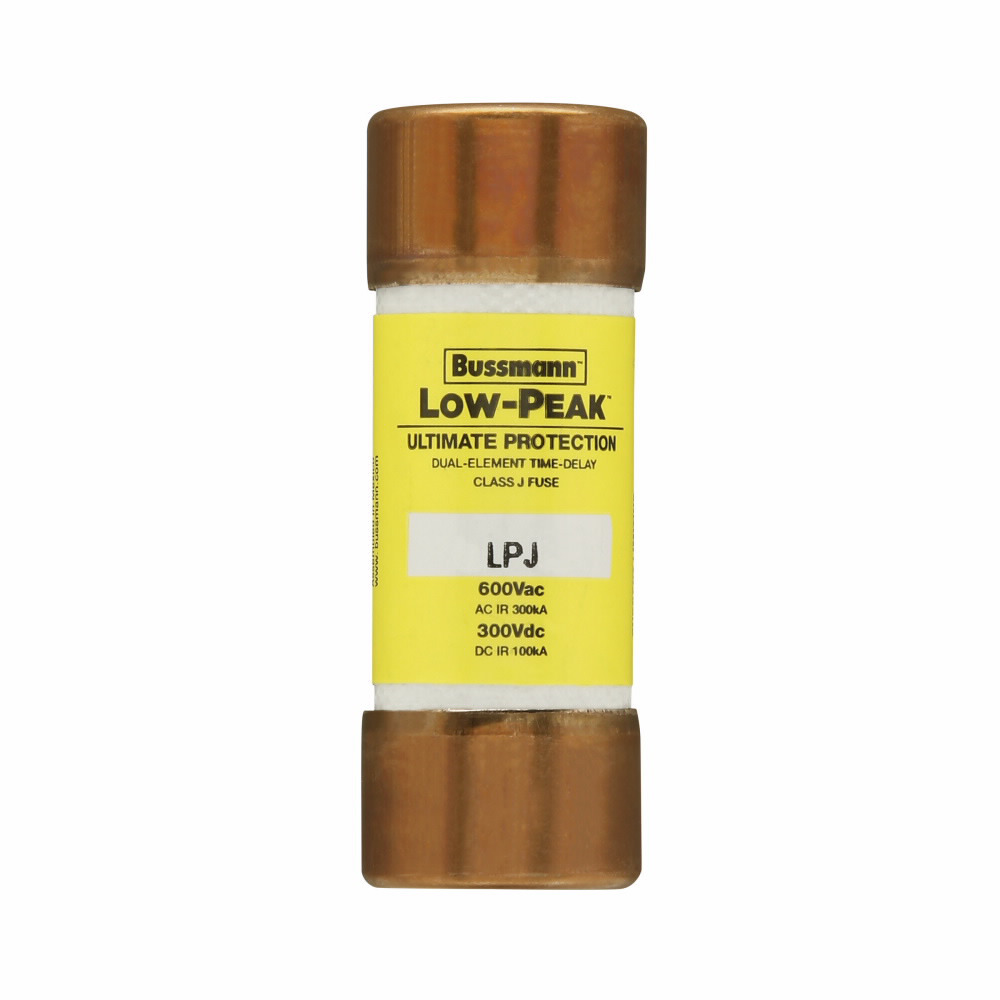

LPJ-7SP Low-Peak Current Limiting Time Delay Fuse, 7 A, 600 V AC/300 V DC, 100/300 kA Interrupt, J Class, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- LPJ-7SP
- UPC:
- 051712523462
- Item #:
- 533991
LPJ-7SP Low-Peak Current Limiting Time Delay Fuse, 7 A, 600 V AC/300 V DC, 100/300 kA Interrupt, J Class, Cylindrical Body
- MFR #:
- LPJ-7SP
- UPC:
- 051712523462
- Item #:
- 533991
Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint
Manuals & Documentation
| Catalog Number | LPJ-7SP |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 7 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 300 kAIC at 600 Vac|100 kAIC Vdc |
| Response Time | 10 sec at 500% |
| Special Features | Non-indicating, High in-rush current motor protection |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712523462 |
| GTIN | 00051712523462 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.81 In Diameter X 2.25 In Length |
| Voltage Rating | 600 Vac, 300 Vdc |
