SQUARE D

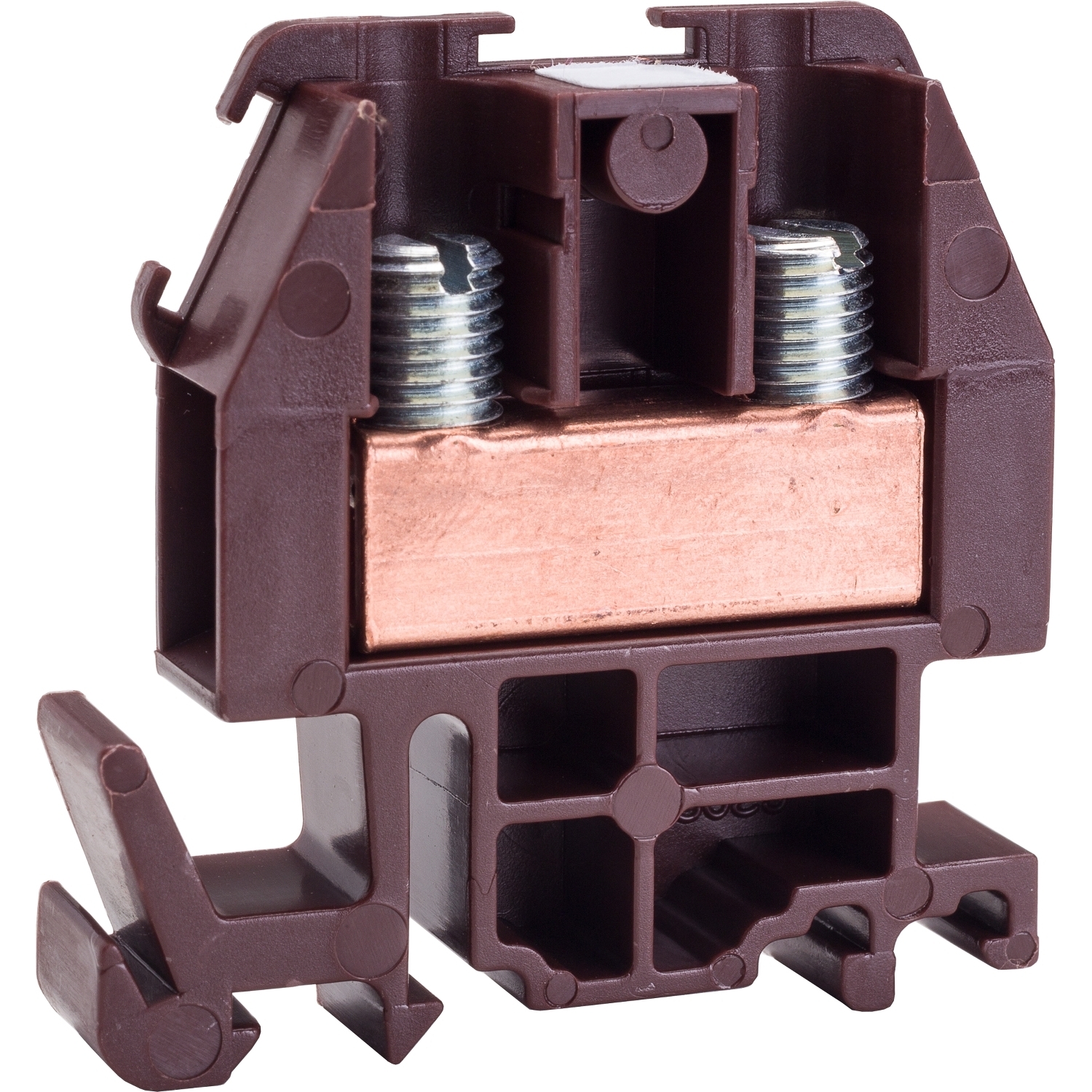

9080GRN6 Linergy Standard Terminal Block, 600 V AC/DC, 60 A, 22 to 8 AWG Wire, Panel Mount

MFR:
Schneider Electric
MFR #:
9080GRN6
UPC:
785901499848
Item #:
53386

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in brown. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.

Manuals & Documentation
Catalog Number 9080GRN6
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372789&lang=en-us
UPC 785901499848
GTIN 00785901499848
Width 1.72
Width UOM Inch
Height 1.82
Height UOM Inch
Depth 0.35 IN
