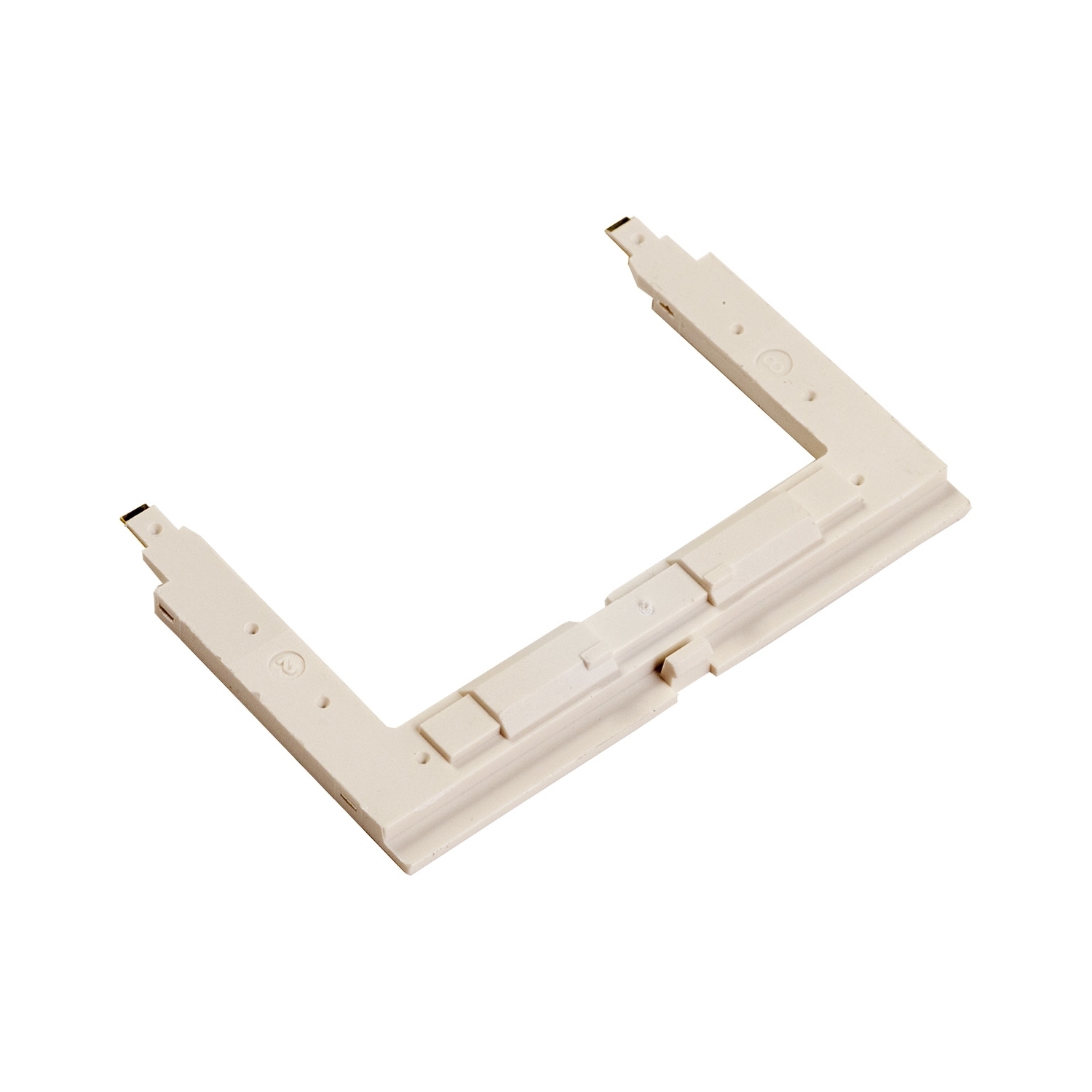

LAD4TGDL Bi-Directional Clip-On Side Mount Peak Limiting Diode, For Use With TeSys D 3P LC1D09 to D38, 4P LC1DT20 to DT40, 4P LC1D098 to D258 Suppressor Module Contactors, CAD32 and CAD50 Control Relays
- MFR:
- Schneider Electric
- MFR #:
- LAD4TGDL
- Item #:
- 533124
LAD4TGDL Bi-Directional Clip-On Side Mount Peak Limiting Diode, For Use With TeSys D 3P LC1D09 to D38, 4P LC1DT20 to DT40, 4P LC1D098 to D258 Suppressor Module Contactors, CAD32 and CAD50 Control Relays
- MFR #:
- LAD4TGDL
- Item #:
- 533124
TeSys Deca suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 73-125V DC control circuit voltage, it provides a bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Clip-on side mounting, overall size of the contactor is unchanged.
Manuals & Documentation
| Catalog Number | LAD4TGDL |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | 3P LC1D09...D38;4P LC1DT20...DT40;4P LC1D098...D258; CAD32, CAD50 |
| Coil Voltage | 125 V DC |
| Mounting | Clip |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8329744&lang=en-us |
| GTIN | 03389118025448 |
| Item Type | Suppressor module;Bidirectional peak limiting diode |
