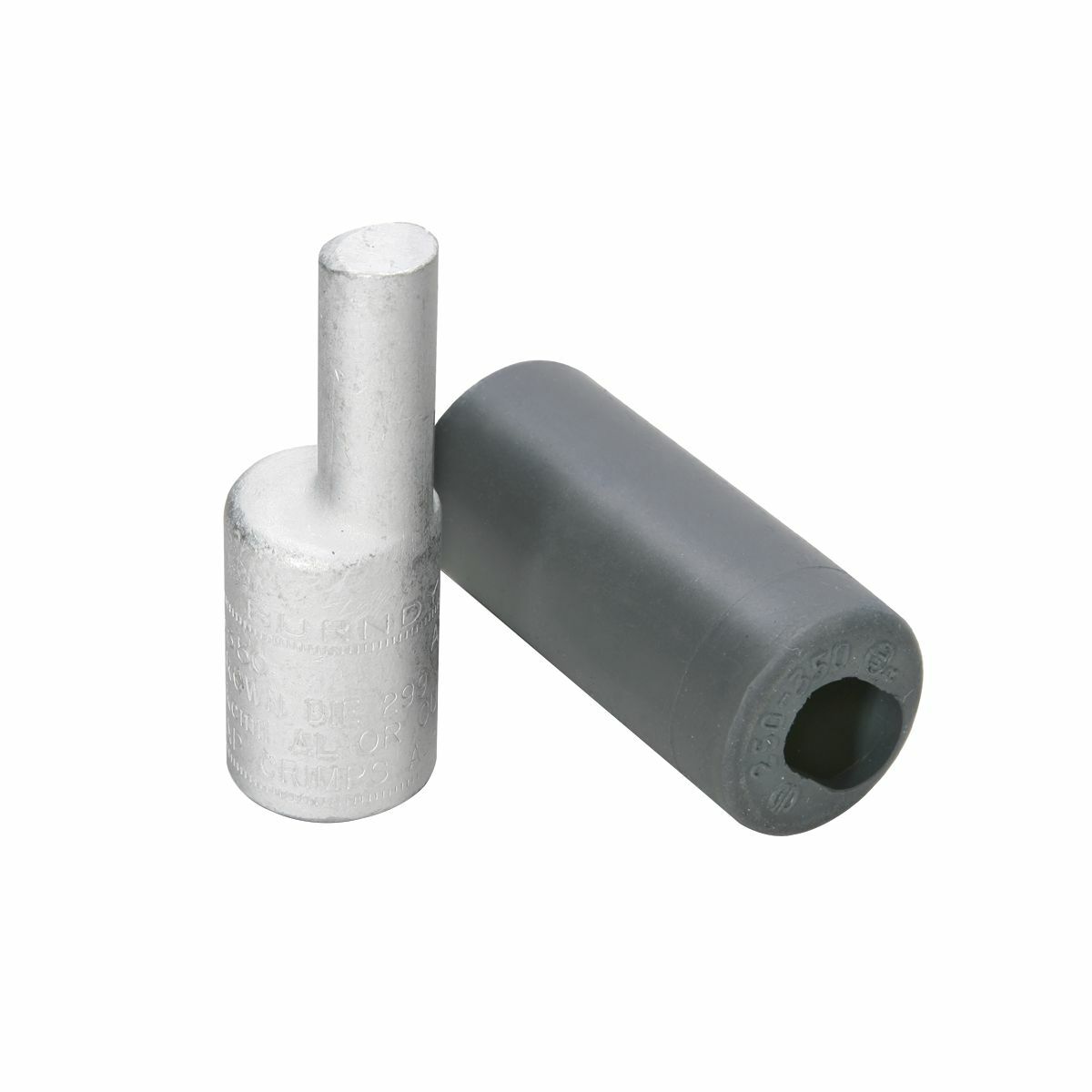

AYPO400 Type AYPO Offset Compression Pin Adapter, 400 kcmil Conductor, Die Code: 300 Element A, 0.63 in Dia x 1.6 in L Pin, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- AYPO400
- UPC:
- 781810738467
- Item #:
- 53176
AYPO400 Type AYPO Offset Compression Pin Adapter, 400 kcmil Conductor, Die Code: 300 Element A, 0.63 in Dia x 1.6 in L Pin, Aluminum
- MFR #:
- AYPO400
- UPC:
- 781810738467
- Item #:
- 53176
Manuals & Documentation
| Catalog Number | AYPO400 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Finish | Tin-Plated |
| Insulation | Y |
| Material | ALUMINUM |
| Special Features | Features: All-Aluminum Electro-Tin Plated design eliminates possible bi-metallic corrosion and provides shortest connector length design possible for easy installation in equipment with limited space. Solid electro-tin plated aluminum plug makes properly connection easily. Smooth surface on the solic EC plug provides greater area contact establishing excellent conductivity. Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment. Straight plug design is also available. Electro-tin plating resists corrosion, factory prefilled with PENETROX joint compound. EPDM Rubber covers are supplied with connector and rated for 600 Volts, eliminates taping. Connectors are clearly marked with catalog number, wire size, and color coded die index providing clear, easy to use information. |
| Standard | UL 486A-486B |
| UPC | 781810738467 |
| GTIN | 00781810738467 |
| Item Type | Aluminum Pin Adapters |
| Temperature Rating | 194 |
| Voltage Rating | 35 |
| Cross Reference Products | PTO-400 |
