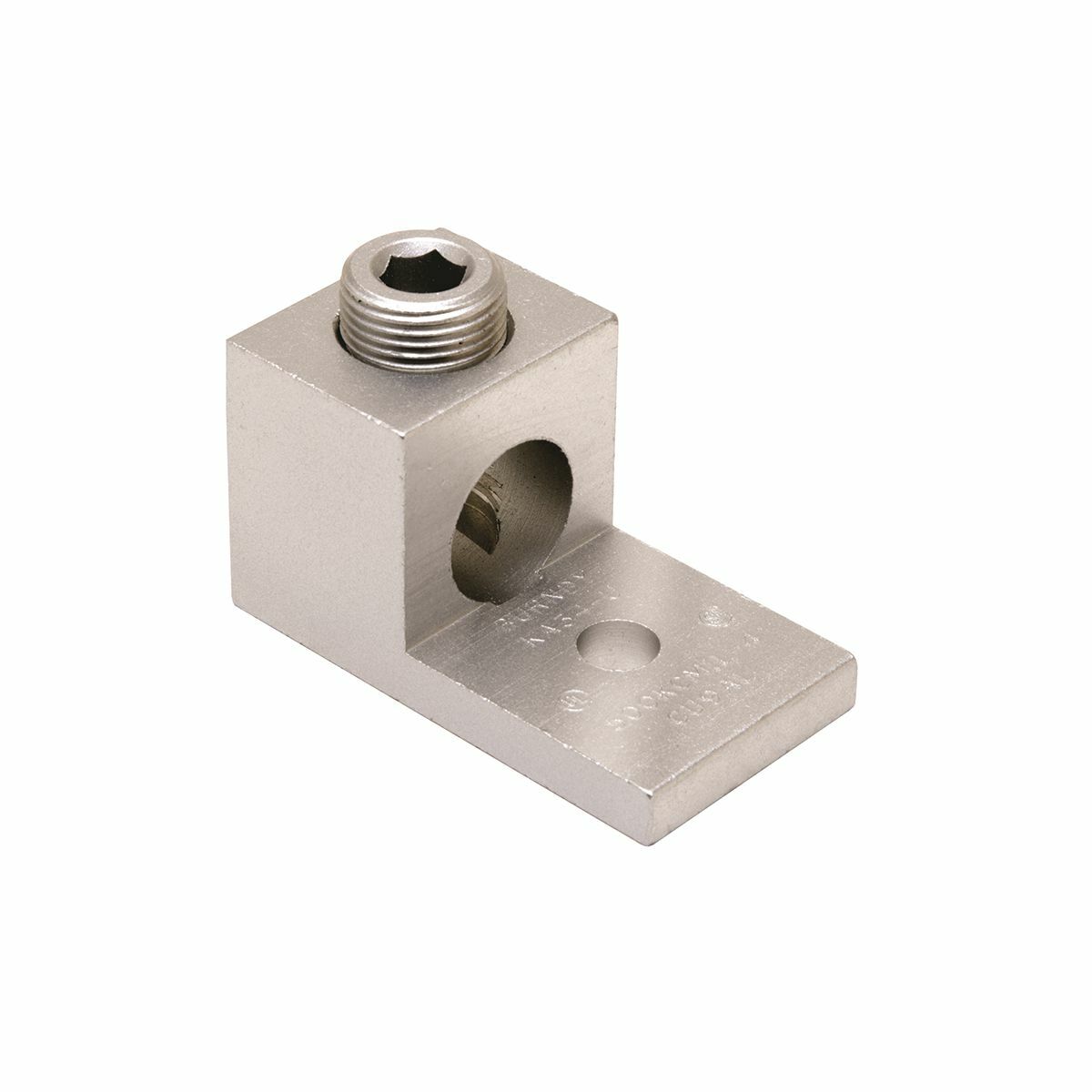

KA30U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 300 kcmil Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KA30U
- UPC:
- 781810370223
- Item #:
- 530862
KA30U KA-U Dual Rated Universal Mechanical Bolted Lug and Terminal, 6 AWG to 300 kcmil Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Aluminum
- MFR #:
- KA30U
- UPC:
- 781810370223
- Item #:
- 530862
Manuals & Documentation
| Catalog Number | KA30U |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Aluminum And Copper Conductors |
| Material | Aluminum |
| Number of Conductors | 1 |
| Special Features | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Allen Key, Length: 2 IN, Installation Torque: 275 IN-LB, Width: 1 IN, Height: 1.12 IN, Dimension D: 0.94 IN, Dimension N: 0.5 IN, Dimension T: 0.25 IN |
| Standard | UL 486A-486B |
| UPC | 781810370223 |
| GTIN | 00781810370223 |
| Item Type | Bolted Lugs & Terminals |
| Temperature Rating | 194 |
| Cross Reference Products | ADR30 |
